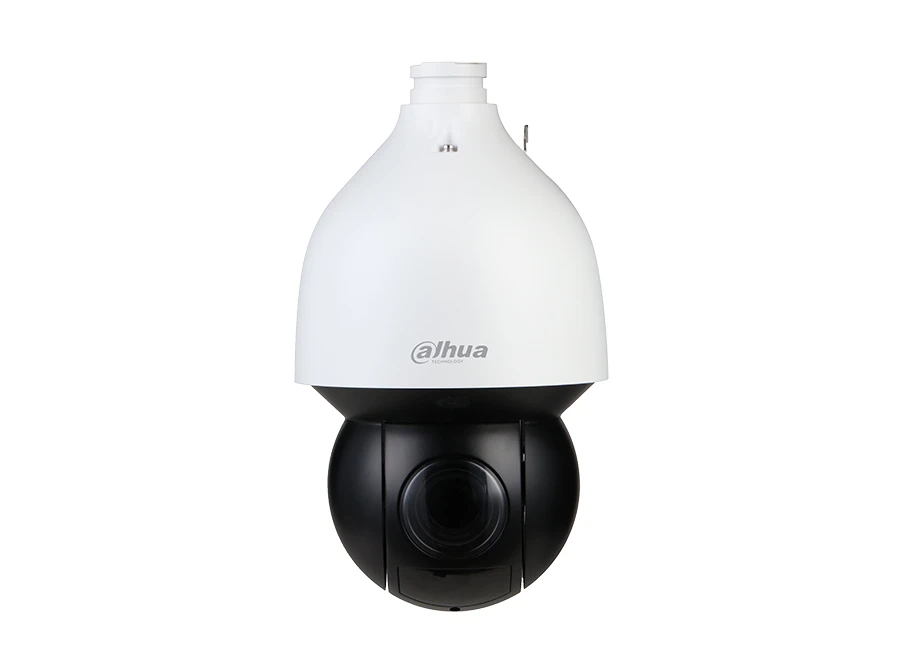

Dahua SD5A825GA-HNR IP PTZ Kamera

Özellikler

1/1.8" 8Megapixel CMOS.
Powerful 25x optical zoom.
Starlight+ Technology.
Max. 25/30fps@8MP.
IR distance up to 150 m.
Deep-learning-based perimeter protection.
Auto-tracking and IVS.
PoE+.
IP67, IK10.

Teknik Özellikler

Camera
Image Sensor	1/1.8" CMOS
Pixel	8 MP
Max. Resolution	3840 × 2160
ROM	4 GB
RAM	1 GB
Electronic Shutter Speed	1 s–1/30,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005 lux@F1.6
	B/W: 0.0005 lux@F1.6
	0 lux@F1.6 (IR light on)
Illumination Distance	150 m (492.13 ft) (IR)
Illuminator On/Off Control	Zoom Prio; Manual; Auto; Off
Illuminator Number	4 (IR)
Lens
Focal Length	5.4 mm–135 mm
Max. Aperture	F1.6–F4.0
Field of View	H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4°
Optical Zoom	25×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.1 m–2 m
Iris Control	Auto; manual; fixed
DORI Distance	Detect	Observe	Recognize	Identify
	2700 m (8858.27 ft)	1066 m (3497.38 ft)	540 m (1771.65 ft)	270 m (885.83 ft)
PTZ
Pan/Tilt Range	Pan: 0° to 360° endless
	Tilt: –15° to +90°, auto flip 180°
Manual Control Speed	Pan: 0.1°/s–300°/s
	Tilt: 0.1°/s–140°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Pattern;Preset;Scan;Tour
PTZ Protocol	DH-SD Pelco-P/D (Auto recognition)
Intelligence
IVS (Perimeter Protection)	Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
Face Detection	Supports face detection,face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. T he expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto Tracking	Yes
SMD	Yes
Video
Video Compression	H.264H;H.264B;Smart H.265+;H.265;Smart H.264+;MJPEG;H.264M
Streaming Capability	3 streams
Resolution	4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 960p (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Video Frame Rate	Main stream: 8M/4M/3M/1080p/1.3M/720p (1–25/30 fps)
	Sub stream 1: D1/CIF/VGA (1–25/30 fps)
	Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 128 kbps–16,384 kbps
	H.265: 51 kbps–12,288 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Image Stabilization	Electronic(EIS)
Defog	Electronic
Digital Zoom	16×
Image Rotation	180°
Privacy Masking	Up to 24 areas can be set, with up to 8 areas in the same view;
	multiple colors available
S/N Ratio	≥ 55 dB
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port	RJ-45 (10/100 Base-T)
Network Protocol	FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP; NFS;ICMP;UDP;IGMP;HTTP;SSL; DHCP;SMTP;Qos;RTSP;ARP
Interoperability	CGI;SDK;ONVIF(Profile S&G&T);P2P
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage	Micro SD card (512 GB); FTP/SFTP; NAS
Browser	IE 9 and later versions
	Chrome 41 and later versions
	Firefox 50 and later versions
	Safari 10 and later versions
Management Software	DSS;DMSS;Easy4ip;Smart PSS;IVSS
Mobile Client	iOS;Android
Certification
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB, ANSI C63.4-2014
	UL:UL60950-1+CAN/CSA C22.2,No.60950-1
Port
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire)
Alarm Linkage	Capture; recordings; send email; preset; tour; pattern; alarm digital input
Alarm Event	Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection
Alarm I/O	2/1
Audio I/O	1/1
Power
Power Supply	24 VDC/2.5 A ± 25%
	PoE+ (802.3at)
Power Consumption	Basic: 12 W
	Max.: 21 W (IR light + PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤ 95%
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity	≤ 95%
Protection	IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions	Φ190 mm × 332 mm (Φ7.48" × 13.07")
Net Weight	4.7 kg (10.36 lb)
Gross Weight	8.0 kg (17.64 lb)
