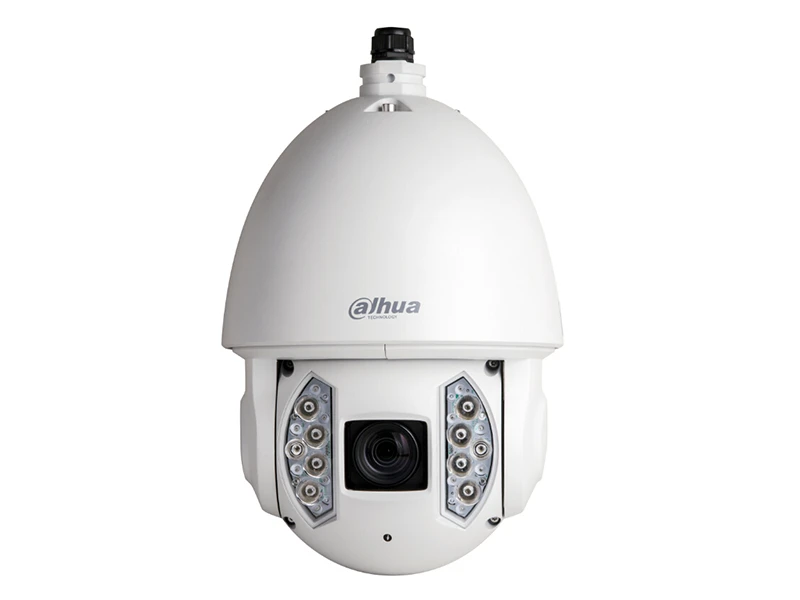

Dahua SD6AE530U-HN IP HD Speed Dome Kamera
Özellikler
- 6mm~180mm Lens,
- 30x Optik 4x Digital zoom,
- 1/1,9" CMOS,
- 30fps @ 5Mp ve 60fps @1080P,
- Renkli: 0.01Lux @ F1.5; B/W:
- 0.001Lux @ F1.5; 0Lux (IR on) 240°/s Pan Hızı,
- 360 ° sonsuz pan dönüşü,
- H.265/H.264/MJPEG Dual Stream Encoding,
- Ç.Network Görüntüleme ,
- IR LED: 200m, Defog,
- DWDR, EIS, ROI,
- Gündüz / Gece (ICR),
- DNR (2D ve 3D),
- Oto Iris , Oto Odak ,
- IVS Video Analiz AWB, AGC, BLC,
- Micro SD Memory 128GB ,
- 7/2xAlarm, 1/1xSes,
- IP 67, IK10
Teknik Özellikler
| Camera |
| Image Sensor : 1/1.9" Exmor CMOS |
| Effective Pixels : 5 Megapixels |
| Scanning System : Progressive |
| Electronic Shutter Speed : 1/1 - 1/30000s |
| Min. Illumination : Color: 0.01Lux @ F1.5; B/W: 0.001Lux @ F1.5; 0Lux (IR on) |
| S/N Ratio : More than 50dB |
| Video Output : BNC(1.0Vp-p/75Ω), PAL / NTSC |
| Camera Features |
| Day/Night : Auto(ICR) / Color / B/W |
| Backlight Compensation : Support |
| White Balance : Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control : Auto / Manual |
| Noise Reduction : Ultra DNR(2D/3D) |
| Privacy Masking : Up to 24 areas |
| Digital Zoom : 4x |
| EIS : Support |
| Defog : Support |
| Lens |
| Focal Length : 6mm - 180mm (30x Optical zoom) |
| Max Aperture : F1.5 - F4.3 |
| Focus Control : Auto / Manual |
| FOV-H : H: 61.2° - 2.1° |
| Close Focus Distance : 100mm~ 1500mm |
| PTZ |
| Pan/Tilt Range : Pan: 0° - 360° endless; Tilt: -10° - 90°, auto flip 180° |
| Manual Control Speed : Pan: 0.1° -200° /s; Tilt: 0.1° -120° /s |
| Preset Speed : Pan: 240° /s; Tilt: 200° /s |
| Preset : 300 |
| PTZ Mode : 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup : Human-oriented focal length/ speed adaptation |
| Idle Motion : Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Power up Action : Auto restore to previous PTZ and lens status after power failure |
| Time Task : Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
| Video |
| Compression : H.265/H.264BaselineProfile/H.264MainProfile/H.264HighProfile/M-JPEG |
| Resolution : 5Mp(2560*1920)/3Mp(2048*1536)/1080P(1920*1080)/1.3Mp(1280*960)/720P(1280*720） |
| Frame Rate Main Stream : 5Mp(1-25/30fps)/3Mp(1-25/30fps)/1080P(1-50/60fps)/1.3Mp(1-25/30fps)/720P(1-25/30fps) |
| Sub Stream 1 : D1/CIF(1-25/30fps) |
| Sub Stream 2 : 5Mp(1-20fps)/1080P(1-25/30fps)/1.3Mp(1-25/30fps)/720P(1-25/30fps) |
| Audio |
| Compression : G.711a/G.711Mu/AAC/G.722 / G.726 |
| Interface : 1/1 channel In/Out |
| Intelligent Function |
| IVS(Optional) : Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection |
| Face Detection : Support |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Protocol :IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
| Max. User Access : 20 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max 128GB |
| Alarm : 7/2 channel In/Out |
| General |
| Power Supply : AC24V/3A(±25%) |
| Power Consumption : 24W, 38W (IR on) |
| Working Environment : -40ºC ~ 70ºC / Less than 95% RH |
| Ingress Protection : IP67,IK10 |
| Dimensions : Φ240mm×382mm |
| Weight : 6.8kg |
Teknik Kısa
Depolama : Var
Çözünürlük : 5MP
Irled : Var
Ses : Var
