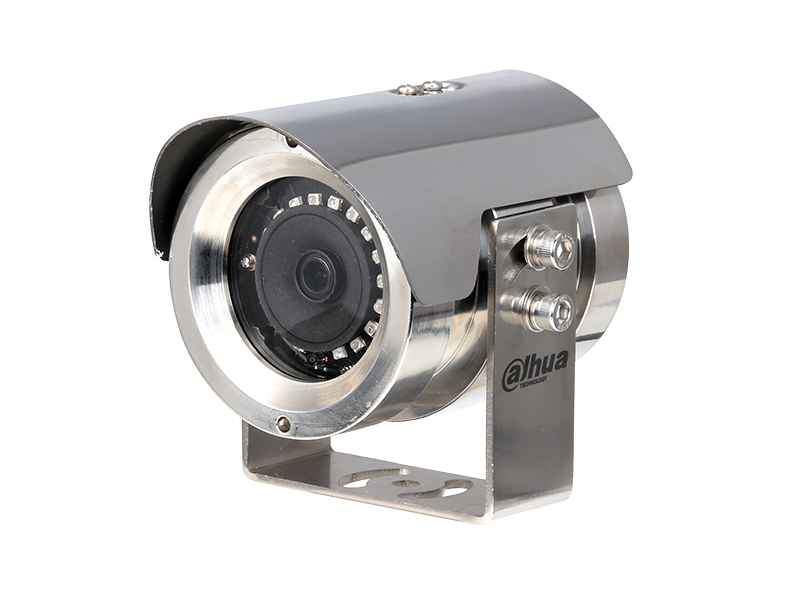

Dahua SDZW2000T SL IR IP PTZ Kamera

Özellikler

1/2.8” 2Megapixel STARVIS™ CMOS
Starlight technology
H.265 Encoding
Max. 50/60fps@1080P
IVS
IP68, IK10, NEMA 4X
Material: 316L Stainless Steel

Teknik Özellikler

Camera
Image Sensor	1/2.8” STARVIS™ CMOS
Effective Pixels	1920(H) x 1080(V), 2 Megapixels
Scanning System	Progressive
Electronic Shutter Speed	1/3s 1/100,000s
Minimum Illumination	Color: 0.005Lux@F2.1; B/W: 0.0005Lux@F2.1; 0Lux@F2.1 (IR on)
S/N Ratio	More than 50dB
IR Distance	30m (98ft)
IR On/Off Control	Auto/Manual
IR LEDs	18
Lens
Focal Length	3.6mm / 6mm
Max. Aperture	F2.1 / F2.0
Angle of View	3.6mm: H: 87°, V: 48°
	6mm: H: 51°, V: 30°
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Lens	Detect	Observe	Recognize	Identify
3.6mm	55m(180ft)	22m(72ft)	11m(36ft)	6m(20ft)
6mm	81m(266ft)	33m(108ft)	16m(52ft)	8m(26ft)
Intelligence
Event Trigger	Motion detection, Video tampering, Networkdisconnection, IP address conflict, Illegal Access,
Auto Tracking	N/A
IVS	Tripwire, Intrusion, Abandoned/Missing
Video
Compression	H.265+/H.265/H.264+/H.264
Streaming Capability	3 Streams
Resolution	1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	Main stream: 1080P/1.3M/720P(1 50/60fps)
	Sub stream1: D1/CIF(1 25/30fps)
	Sub stream2: 1080P/720P/D1(1 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265/H.264: 448K 8192Kbps
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / WDR (120dB)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	Ultra DNR (2D/3D)
Motion Detection	Support
Region of Interest	Support
Electronic Image Stabilization (EIS)	N/A
Defog	N/A
Digital Zoom	16x
Flip	180°
Privacy Masking	Support
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10Base-T/100Base-TX)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP,UDP, UPnP, ICMP, IGMP, SNMP, RTSP,RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	20 users
Edge Storage	NAS (Network Attached Storage), Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB,ANSI C63.4- 2014
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm I/O	N/A
Electrical
Power Supply	DC12V/1.5A, PoE(802.3af)
Power Consumption	5W (IR on)
Environmental
Operating Conditions	-40°C 60°C (-40°F +140°F) / Less than 95% RH
Ingress Protection	IP68
Vandal Resistance	IK10
Construction
Casing	316L stainless steel
Dimensions	Φ152mm × 101mm × 107.5mm
Net Weight	2kg(4.41lb)
Gross Weight	2.27Kg(5.01lb)
