| General |

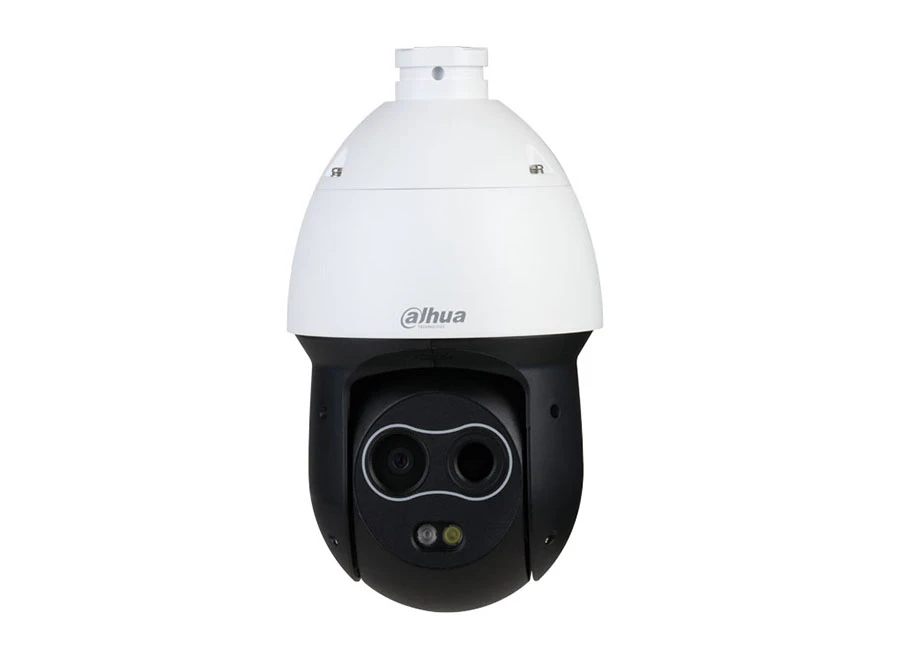

| Structure | Multi-sensor speed dome |
| Thermal |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 256x192 |
| Pixel Pitch | 12μm |
| Spectral Range | 8μm–14μm |
| Thermal Sensitivity (NETD) | ≤50mK |
| Focal Length | 3.5mm; 7mm |
| Field of View | 3.5mm: horizontal: 50.6° ; vertical: 37.8° |
| 7mm: horizontal: 24° ; vertical: 18° |
| Focus Mode | Auto; manual |
| Aperture | F1.0 |
| Detection Distance | 3.5mm: vehicle: 389m (1276ft); human: 146m (479ft) |
| 7mm: vehicle: 778m (2552ft); human: 292m (958ft) |
| Recognition Distance | 3.5mm: vehicle: 97m (318ft); human: 38m (125ft) |
| 7mm: vehicle: 194m (636ft); human: 75m (246ft) |
| Identification Distance | 3.5mm: vehicle: 49m (161ft); human: 19m (62ft) |
| 7mm: vehicle: 97m (318ft); human: 38m (125ft) |
| Digital Detail | Yes |
| Enhancement (DDE) |
| AGC | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Color Palettes | 18 color modes selectable such as Whitehot/Blackhot/Ironrow/Icefire. |
| Temperature | Low temperature mode: -20°C (-4°F) to +150°C (302°F) |
| Measurement Range | High temperature mode: 0°C (34°F) to +550°C (1022°F) |
| Temperature Accuracy | Max (±5°C, ±5%) |
| Operating temperature: -10°C (14°F) to +50°C (122°F) |
| Temperature Mode | Spot: 12 |
| Line: 12 |
| Area: 12 |
| Support 12 rules simultaneously |
| Visible |
| Image Sensor | 1/2.8 inch CMOS |
| Effective Pixels | 1920x1080 |
| Max. Resolution | 2MP |
| Horizontal Definition | ≥1100TVL |
| Min. Illumination | Color: 0.005Lux |
| Black & white: 0.0005Lux |
| IR light (on): 0Lux |
| AGC | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | >56dB |
| White Balance | Auto/indoor/outdoor/tracking/manual/sodium lamp/natural/street light |
| Electronic Defog | Yes |
| Electronic Image | Yes |
| Stabilization (EIS) |
| Electronic Shutter Speed | 1/1s–1/100000s (auto or manual) |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Day/Night | Auto (ICR); color/B/W |
| Focus Mode | Auto |
| Focal Length | 4mm; 8mm |
| Field of View | 4mm: horizontal: 84°; vertical: 45°; diagonal: 99° |
| 8mm: horizontal: 40°; vertical: 22°; diagonal: 46° |
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 4mm | 55m (180ft) | 22m (72ft) | 11m (36ft) | 5.5m (18ft) |
| 8mm | 110m (361ft) | 44m (144ft) | 22m (72ft) | 11m (36ft) |
| Close Focus Distance | 0.2m |
| Aperture | 4mm: F2.0 |
| 8mm: F1.9 |
| IR On/Off control | Auto; manual |
| IR Distance | 4mm: 35m (115ft) |
| 8mm: 50m (164ft) |
| Audio and Video |
| Video Compression | H.265; H.264M; H.264H; H.264B; MJEPG |
| Resolution | Thermal: |
| (1280×960) (default value)/XVGA (1024×768)/VGA (640×480)/(256×192) |
| Visual: |
| 1080P (1920×1080) (default value)/720P (1280×720)/D1 (704× 576/704×480)/CIF (352×288/352×240) |
| Video Frame Rate | Thermal: |
| 50Hz: |
| Main stream (1280×960@25fps/1024×768@25fps/640×480@25fps/256×192@25fps), sub stream (640×480@25fps/256×192@25fps) |
| 60Hz: |
| Main stream (1280×960@30fps/1024×768@30fps/640×480@25fps/256×192@25fps), sub stream (640×480@30fps/256×192@30fps) |
| Visual: |
| 50Hz: |
| Main stream (1920×1080@25fps/1280×720@25fps/704×576@25fps), sub stream (704×576@25fps/352×288@25fps) |
| 60Hz: |
| Main stream (1920×1080@30fps/1280×720@30fps/704×480@30fps), sub stream (704×480@30fps/352×240@30fps) |
| Audio Compression | G.711a; G.711mu; AAC; PCM |
| Image Encoding Format | JPEG |
| PTZ |
| Pan/Tilt Range | Pan: 0°–360° endless; Tilt: -15°–90° |
| Manual Control Speed | Pan: 0.1°–200°/s; Tilt: 0.01°–120°/s |
| Preset Speed | Pan: 0.1°–240°/s; Tilt: 0.1°–200°/s |
| Preset | 300 |
| PTZ Mode | 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan |
| Power Up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| General Function |
| Two-way Talk | Yes |
| Network Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Region of Interest (ROI) | Yes |
| Edge Storage | FTP; Micro SD card (256G, hot plug) |
| Browser | IE: IE8 and the later, and explorer with IE core |
| Google: 42 and the earlier |
| Firefox: 42 and the earlier |
| Safari: 10 and the earlier |
| User/Host | 20 channels at most (the total bandwidth 64M) |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| User Management | Support 20 users at most and users are classified as two groups--administrator group and user group. |
| Malfunction Detection | Network disconnection; IP addresses conflict; SD card error (status or storage space) |
| Smart Event |
| General IVS Analytics | Tripwire/intrusion |
| Professional and Intelligent |
| Fire Detection | Yes |
| Cold/Hot Spot Trace | Auto tracking of the hottest spot and the coldest spot in the thermal image |
| IVS Analytics | Tripwire/intrusion |
| Network | 1 10M/100M Ethernet port (RJ-45) |
| Alarm Input | 2 channels |
| Alarm Output | 1 channels |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| RS-485 | 1 channel |
| Power |
| Power Supply | DC 12V±15%/PoE+ |
| Power Consumption | Max 24W |
| Environment |
| Operating Temperature | -30°C (-22°F) to +60°C (140°F) |
| Operating Humidity | ≤95% |
| Self-Adaptive | Auto heating to protect the chip under the cold environment |
| Physical Characteristics |
| Protection Grade | IP66, anti-surge 6KV, anti-elctrostatic 8KV (touched by objects), anti-elctrostatic 15KV (air) |
| Dimensions | 295mm×Φ160mm (11.61"×Φ6.3") |
| Packaging Dimensions | 267.0mm×267.0mm×437.0mm (10.51"×10.51"×17.2") |
| Net Weight | ≤3.2kg (7.05lb) |
| Gross Weight | ≤4.7kg (10.36lb) |
| Installation Mode | Wall mount/pole mount/corner mount |
| Lens | Contained |
| Bracket | Contained |
| Certification |
| Certifications | CE (EN 60950:2000); FCC (FCC Part 15 SubpartB ) |
