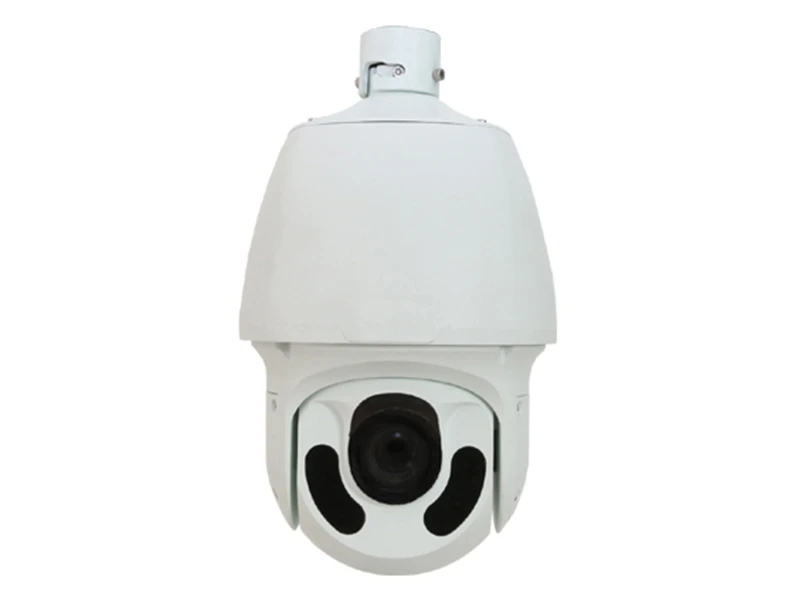

DCODE Exclusive DEC7222ER X30 B IP HD Speed Dome Kamera

Özellikler

30X Optical Zoom
Accurate and fast focusing
Smart IR, up to 150 m (492 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
Customized OSD
ONVIF Conformance
Innovative snow-removing functionality
More effective heat dissipation system
Intelligent temperature control technology
6 KV surge protection designed for network interface

Teknik Özellikler

Camera
Sensor	1/3", 2megapixel, progressive scan, CMOS
Lens	4.5 ~ 135 mm (30x optical zoom)
Angle of View (H)	62.9° (wide) ~ 2.3° (tele)
Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
Minimum Illumination	Colour: 0.03 lux (F1.6, AGC ON)
Minimum Illumination	0 lux with IR
Iris	Auto/Manual; F1.6 ~ F4.4
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
WDR	Digital WDR
Video
Max. Resolution	1920 × 1080
Video Compression	H.265, H.264,MJPEG
Frame Rate	1080P (19201080): Max. 30 fps; 720P (1280720): Max. 30 fps; D1 (720*576): Max. 30 fps
Video Streaming	Triple
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Digital Zoom	Supported
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Exception Detection	Audio detection
Intelligent Identification	Face detection
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration	ONVIF,API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 240°/s
Pan Speed	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 160°/s
Tilt Speed	Preset speed: 240°/s
Number of Presets	256
Patrol	Up to 16 patrols, up to 32 presets per patrol
Patrol	Note: The total number of patrols and patterns is 16.
Pattern	Up to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface
Audio I/O	Audio cable
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	1.Oca
Network	1RJ45 10M/100M Base-TX Ethernet
General
Power	24 V AC, 24 V DC
Power	Power consumption: 9 ~ 42W
Dimensions(ØxH)	Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight	5.28 kg (11.6lb)
Working Environment	–40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
