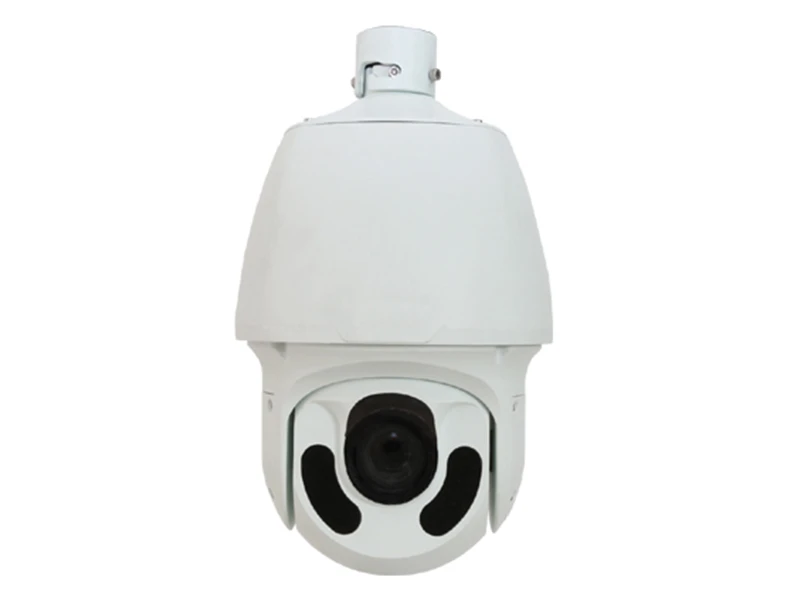

DCODE Exclusive DEC7222ER X30P IP HD Speed Dome Kamera

Özellikler

Sensor 1/2.8", 2 megapixel, progressive scan, CMOS
Lens 4.5 ~ 135 mm (30x optical zoom)
Angle of View (H) 62.9° (wide) ~ 2.3° (tele)
Iris Auto/Manual; F1.6 ~ F4.8
Shutter Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum Illumination Colour: 0.03 lux (F1.6, 50IRE) B/W: 0.01 lux (F1.6, 50IRE)
S/N >52dB
Day/Night IR-cut filter with auto switch (ICR)
WDR Digital
Video Max. Resolution 1920 × 1080
Video Compression H.264,MJPEG
Frame Rate 1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
Video Streaming Triple
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Digital Zoom Supported
Audio Compression G.711
Two-way audio Supported
Edge Storage Micro SD, up to 64 GB
Network Protocols : L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP
Compatible Integration ONVIF, IMOS,API
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range –15° ~ +90° (auto reverse)
Tilt Speed 0.1° ~ 160°/s
Preset speed: 240°/s
Number of Preset 255
Patrol Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16.
Pattern Up to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface Audio I/O Audio cable Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 1/ 1
Network 1 RJ45 10M/100M Base-TX Ethernet
General Power 24 V AC, 24 V DC, PoE
Power consumption: 9 ~ 42W (IR:16W, heater: Max. 24 W)
Dimensions (Ø x H) Ø227 x 359.4 mm (Ø8.9” x 14.2”)
Weight 5.28 kg (11.6 lb)
Working Environment –40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing)
Vandal Resistant IK10
Ingress Protection IP66
