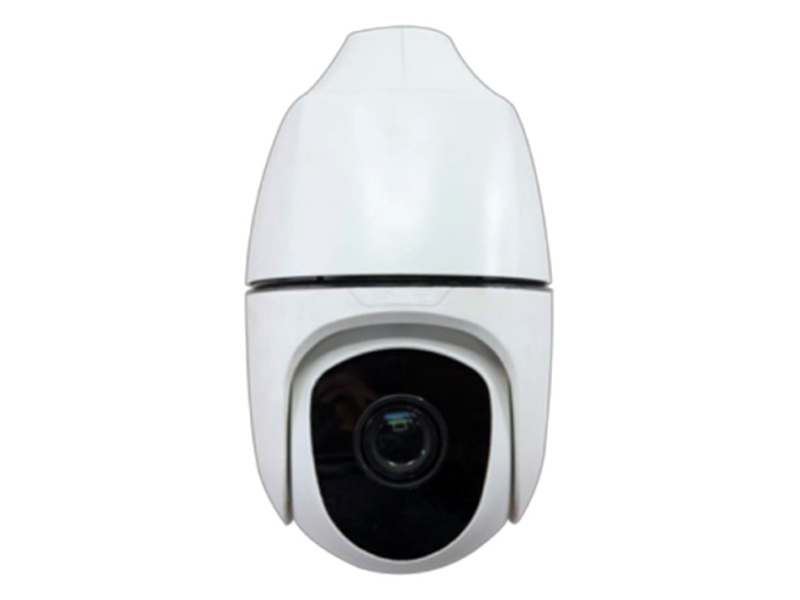

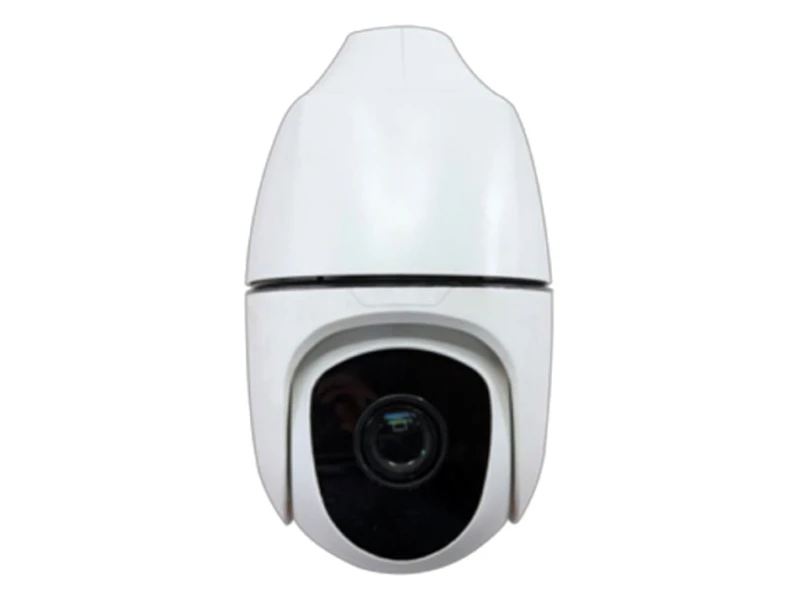

DCODE Exclusive DEC7852SR X44U IP HD Speed Dome Kamera

Özellikler

  • Sensor 1/2.8", 2 megapixel, progressive scan, CMOS
  • Lens 5 ~ 220 mm (44x optical zoom)
  • Angle of View (H) 56.7° (wide) ~ 3.07° (tele)
  • Iris Auto/Manual; F1.2 ~ F3.5
  • Shutter Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
  • Minimum Illumination Colour: 0.002 lux (F1.2, 50IRE) 0 lux with IR
  • S/N >52dB
  • WDR 120dB
  • Defog Optical Defog & Digital Defog
  • Day/Night IR-cut filter with auto switch (ICR)
  • Video Max. Resolution 1920 × 1080
  • Video Compression H.265, H.264, MJPEG
  • Frame Rate 1080P (1920×1080):Max.60 fps;
  • Video Streaming Triple
  • OSD Up to 8 OSDs
  • Privacy Mask Up to 4 areas
  • Digital Zoom Supported
  • HLC Supported
  • EIS Supported
  • Smart Behavior Detection : Intrusion, crossing line, motion detection
  • Exception Detection : Audio detection
  • Intelligent Identification : Face detection
  • Statistical Analysis : People counting
  • Audio Compression G.711
  • Two-way audio Supported
  • Edge Storage Micro SD, up to 128GB
  • Network Protocols : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, TCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
  • Compatible Integration ONVIF, API
  • Pan & Tilt
  • Pan Range 360° (endless)
  • Pan Speed 0.1°/s ~ 240°/s
  • Preset speed: 300°/s
  • Tilt Range –15° ~ +90° (auto reverse)
  • Tilt Speed 0.1° ~ 160°/s
  • Preset speed: 240°/s
  • Number of Preset 256
  • Patrol Preset patrol, route patrol, recorded patrol
  • Home Position Supported
  • Interface Audio I/O Audio cable 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] 1 Output: impedance 600 Ω; amplitude 2 V [p-p]
  • Alarm I/O 2 / 1
  • Serial Port 1 RS485
  • Network 1 RJ45 10M/100M Base-TX Ethernet
  • Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
  • General Power 24 V±25% AC (Default),  24 V±25% DC
  • Power consumption:16 ~56W
  • Dimensions (Ø x H) Φ270mm×496.7mm(Φ10.6” x 19.6”)
  • Weight 9.69kg(21.4lb)
  • Built-in Heater and Temperature control system
  • Working Environment -45?~70?(-49°F ~ 158°F), Humidity ≤ 95% RH(non-condensing)
  • Ingress Protection IP66


Teknik Kısa

Ses : Var
Depolama : Var
Çözünürlük : 12MP
