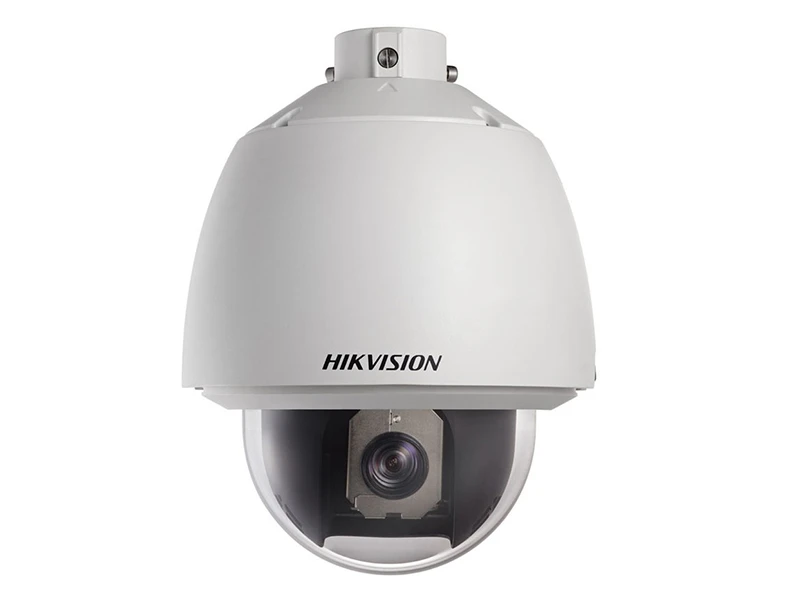

Haikon DS 2DE5184 A IP HD Speed Dome Kamera
Özellikler
- 1/2.8" Progressive Scan CMOS
- 1080P Full HD resolution
- 20x optical zoom, 16x digital zoom
- True Day/Night, 3D DNR, Digital WDR
- 3D intelligent positioning
- Support 24VAC/PoE+ power supply
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.8" Progressive Scan CMOS |
| Effective Pixels : 2230K pixels |
| Min. Illumination : Color: 0.05Lux @ F1.6 AGC ON, B/W: 0.01Lux @ F1.6 |
| White Balance : Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC : Auto/Manual |
| S/N Ratio : >50dB |
| Day & Night : IR Cut Filter |
| Digital Zoom : 16X |
| Backlight Compensation : BLC |
| Digital Noise Reduction : 3D DNR |
| Wide Dynamic Range : 128X Digital WDR |
| Shutter Speed : 1~1/10,000s |
| Focus Mode : Auto/Semiautomatic/Manual |
| Lens |
| Focal Length : 4.7~94mm, 20x |
| Zoom Speed : Approx. 3s(Optical Wide-Tele) |
| Angle of View : 58.3~3.2degree(Wide-Tele) |
| Min. Working Distance : 10-1,000mm(Wide-Tele) |
| Aperture Range : F1.6-F3.5 |
| Pan & Tilt |
| Pan / Tilt Range : Pan: 360° endless; Tilt: ~5°90° (Auto Flip) |
| Pan / Tilt Speed : Pan Manual Speed: 0.1° ~250° /s, Pan Preset Speed: 300° /s |
| Tilt Manual Speed : 0.1° ~150° /s, Tilt Preset Speed: 200° /s |
| Proportional Zoom : Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset : 256 |
| Patrol : 8 patrols, up to 32 presets per patrol |
| Power-off Memory : Support |
| Park Action : Pattern/pan scan/Tilt scan/Frame scan/Panorama scan/Random scan |
| Input / Output |
| Audio Input : Optional input (LINE input), 2~2.4[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output : Line level, impedance: 600Ω |
| Network |
| Ethernet : 10Base-T/100Base-TX, RJ45 connector |
| Max. Image Resolution : 1920x1080 |
| Frame Rate : 60Hz: 30 fps (1920x1080), 30 fps (1280x960), 30fps (1280x720) |
| Image Compression : H.264/MPEG4 |
| Audio Compression : G.711u/G.711a/G.726 |
| Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Simultaneous Live View : Up to 6 |
| Streams : Dual Streams |
| Mini SD Memory Card : Micro SD Slot, up to 32GB |
| User/Host Level : Up to 32 levels; 3 Levels: Administrator, Camera control, Live view only |
| Security Measures : User authentication (ID and PW), Host authentication (MAC address) |
| Integration |
| Application programming : Open-ended API, support Onvif, PSIA and CGI |
| Web Browser : IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+ |
| General |
| RS-485 Protocols : HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Working Temperature : Outdoor dome: -30°C~65° (-22°F~149°F) |
| Humidity : 90% or less |
| Protection Level : IP66 standard (outdoor dome)TVS 4,000V lighting protection, surge protection and voltage transient protection |
| Dimensions : Φ200×305mm( Φ8.66”×12.02”)(Outdoor) |
| Power : 24VAC/PoE+ Max.22W/14W (Heater on/off) |
Haikon DS 2DE5184 A IP HD Speed Dome Kamera Pdf Dosyası611.94 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
