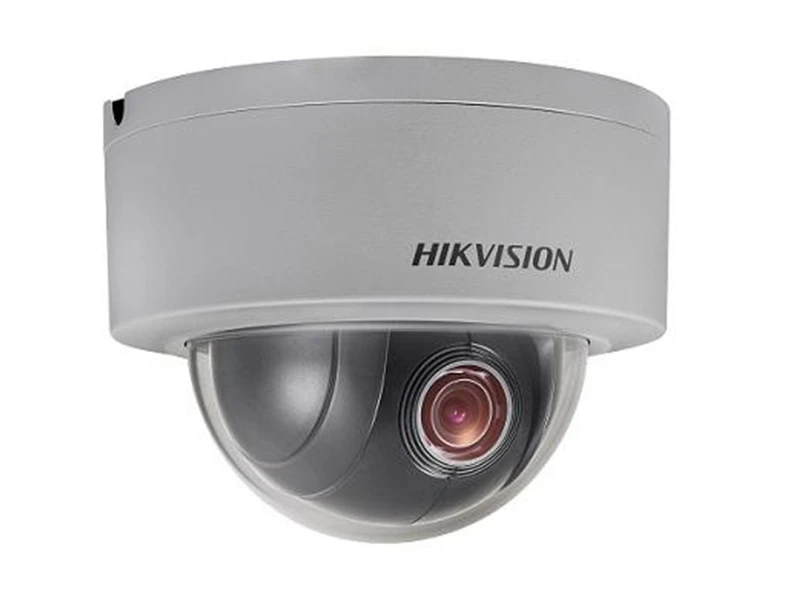

Hikvision DS 2DE3204W DE IP HD Mini Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Minimum Illumination | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Shutter Time | 1/1~1/10,000s |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Masking | 8 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 2.8~12mm, 4x |
| Zoom Speed | Approx.1s(Wide~Tele) |
| Angle of View | 105~33.5 degree (Wide~Tele) |
| Aperture Range | F1.6 ~F2.7 |
| Pan & Tilt | |
| Pan Range | Pan: 0~350° |
| Pan Speed | Pan Manual Speed: 0.1°~60°/s |
| Tilt Range | Tilt: 0°~90° |
| Tilt Speed | Tilt Manual Speed: 0.1°~50°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Power-off Memory | Support |
| Park Action | Preset |
| PTZ Position Display | ON/OFF |
| Alarm | |
| Alarm Input | 1 |
| Alarm Actions | Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage |
| Input & Output | |
| Audio Input | 1 Mic in/Line in interface |
| Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% | |
| Audio Output | 1 Audio output interface |
| Line level, impedance: 600Ω | |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; |
| 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) | |
| Sub Stream | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) |
| 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) |
| 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240) | |
| Video Compression | H.264 / MJPEG |
| ROI encoding | Support 4 areas with adjustable levels |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| No. of Simultaneous Users | Up to 20 users |
| Dual Stream | Support |
| Mini SD Card | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| Security Measures | User authentication (ID and PW), |
| Host authentication (MAC address) | |
| IP address filtering | |
| Hik-Connect | Support |
| Client GUI | |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
| General | |
| Menu Language | English |
| Power Supply | 12V DC & PoE((802.3af, class3) |
| Power Consumption | Max. 8W |
| Working Temperature/Humidity | -30°C ~ 65°C (-22°F ~ 149°F) |
| Protection Level | IP66, IK10 TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimensions | Φ140.7×107.2mm |
| Weight (approx.) | 950g |
| Mount Option | Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6 |
Hikvision DS 2DE3204W DE IP HD Mini Speed Dome Kamera Pdf Dosyası856.62 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
