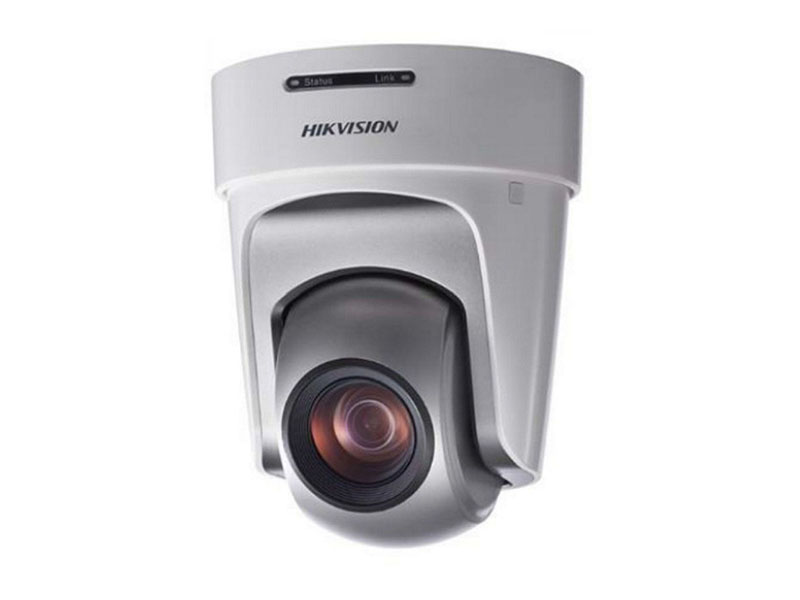

Hikvision DS 2DF5220S DE4 W IP Speed Dome Kamera

Özellikler

1/3” HD CMOS sensor
1920*1080 Full HD, 20X Optical Zoom
G-sensor for automatically mirror
DWDR
Smart Tracking
Smart Detection
EIS (Electronic Image Stabilization)
Defog
WiFi
Heat mapping
PoE+ / 12VDC power supply
Support EZVIZ

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
WDR	DWDR
Shutter Time	50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night	ICR
Digital Zoom	16X
Privacy Masking	24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	4.7-94mm, 20x
Zoom Speed	Approx.2.7s(Optical Wide-Tele)
Angle of View	58.3-3.2 degree (Wide-Tele)
Minimum Working Distance	10-1500mm(Wide-Tele)
Aperture Range	F1.6~F3.5
Pan & Tilt
Pan Range	360°endless
Pan Speed	Pan Manual Speed: 0.1°~150°/s, Pan Preset Speed: 270°/s
Tilt Range	-30°~90°(Auto Flip)
Tilt Speed	Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display	ON/OFF
Smart-tracking	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
Smart-tracking	Smart tracking when patrol between multiple scenarios
Alarm
Alarm Input	2
Alarm Output	1
Alarm Actions	Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Monitor Output	1 turbo HD720p output; 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC, HD-SDI, YPbPr, HDMI
Audio Input	1 Mic in/Line in interface
Audio Input	Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output	1 Audio output interface
Audio Output	Line level, impedance: 600Ω
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Main Stream	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
Main Stream	60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream	50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
Sub Stream	60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Third Stream	50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
Third Stream	60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
ROI encoding	Support 24 areas with adjustable levels
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users	Up to 20 users
Three-Stream	Support
Mini SD Card	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Security Measures	User authentication (ID and PW),
	Host authentication (MAC address)
	IP address filtering
Hik-Connect	Support
Client GUI
Camera Control	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display	Time: Week: Date, 6 formats on the Client
Client	Support iVMS-4200
Web Browser	IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
General
RS-485 Protocols	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language	English
Power Supply	12VDC, PoE+
Power Consumption	Max. 24W
Working Temperature/Humidity	-10°C ~ 50°C (-14°F ~ 122°F)
Mounting	Various mounting modes optional
Dimensions	Φ176.6(mm)×202.7(mm)
Weight (approx.)	1.8kg
Mount Option	Pendent mount: DS-1691ZJ; Wall mount: DS-1692ZJ
