Açıklama

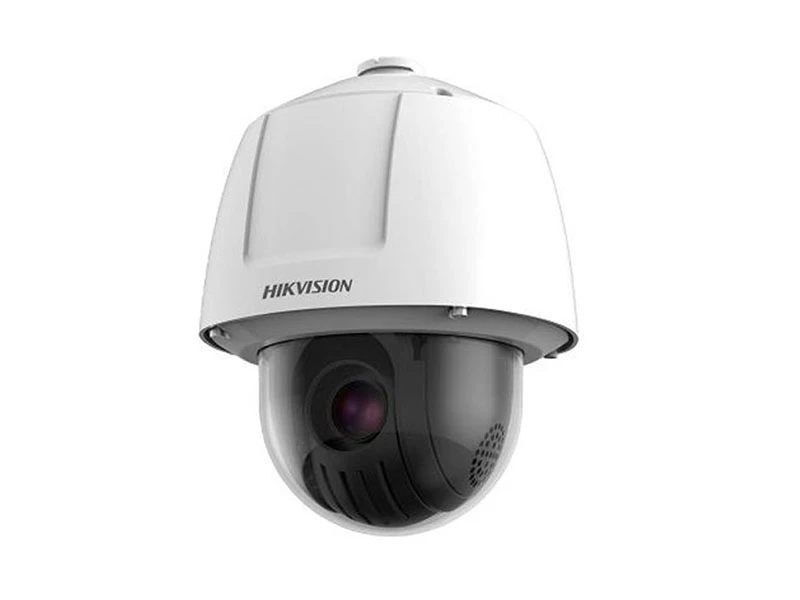

Hikvision DS 2DF6225X AEL IP Speed Dome Kamera
Özellikler
- 1/1.9" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. Illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON) - 25× optical zoom, 16× digital zoom
- 120dB WDR, 3D DNR, HLC, Optical Defog24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
- Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.9" progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.002 Lux @(F1.5, AGC ON) |
| B/W: 0.0002 Lux @(F1.5, AGC ON) | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | 120dB |
| Shutter Time | 50Hz: 1/1-1/30,000s |
| 60Hz: 1/1-1/30,000s | |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Masking | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 5.7 mm to 142.5 mm, 25× Optical |
| Zoom Speed | Approx.3.7s(Optical Wide-Tele) |
| Angle of View | Horizontal field of view: 59.8° to 2.8° (wide-tele) |
| Vertical field of view: 33.6° to 1.6° (wide-tele) | |
| Diagonal field of view: 68.6° to 3.2° (wide-tele) | |
| Minimum Working Distance | 10-1500mm(Wide-Tele) |
| Aperture Range | F1.6-F3.4 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Pan Manual Speed: 0.1° -300°/s, |
| Pan Preset Speed: 540°/s | |
| Tilt Range | -5°~90° (Auto Flip ) |
| Tilt Speed | Pan Manual Speed: 0.1° -240°/s, |
| Pan Preset Speed: 400°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Smart-tracking | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger |
| Alarm | |
| Alarm Input | 7 Inputs |
| Alarm Output | 2 |
| Alarm Actions | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client |
| Input & Output | |
| Monitor Output | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output | Line level, impendance: 600Ω |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), |
| 50fps (1920 × 1080, 1280 × 960, 1280 × 720); | |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), | |
| 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) |
| 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| ROI encoding | Support 24 areas with adjustable levels |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2 |
| No. of Simultaneous Users | Up to 20 users |
| Three-Stream | Support |
| Mini SD Card | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| Security Measures | User authentication (ID and PW), |
| Host authentication (MAC address) | |
| IP address filtering | |
| Client GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language | English |
| Power Supply | 24 VAC & Hi-PoE |
| Power Consumption | 24 VAC (Max. 60 W) |
| Hi-PoE (Max. 50 W) | |
| Working Temperature/Humidity | Outdoor: -40°C to 65°C (-40°F to 149°F) |
| Protection Level | IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimensions | Φ 260.3 mm × 326 mm (Φ 10.25" × 12.8") |
| Weight (approx.) | Approx. 6 kg (13.23 lb) |
| Mount Option | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box |
Hikvision DS 2DF6225X AEL IP Speed Dome Kamera Pdf Dosyası688.03 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
