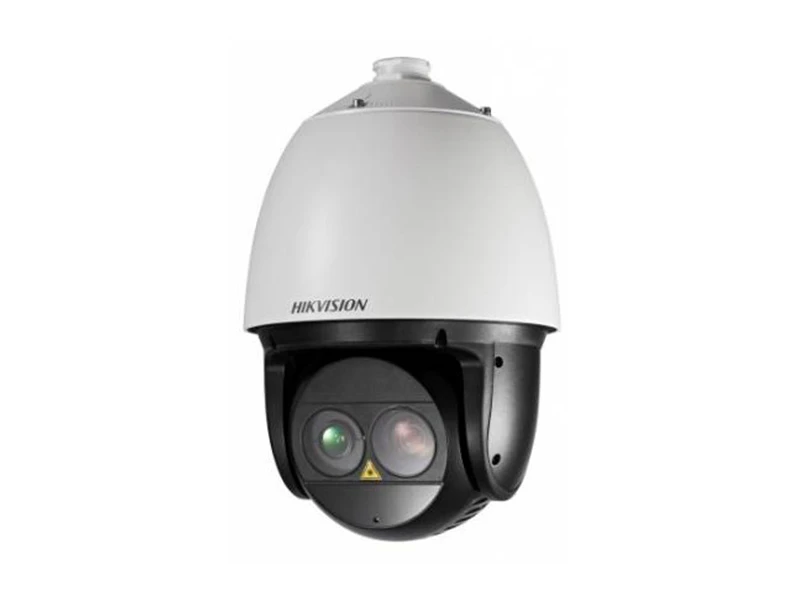

Hikvision DS 2DF7230I5 AEL IP Speed Dome Kamera
Özellikler
- 1/2.8” HD CMOS sensor
- 2MP(1920*1080) Full HD
- 30X Optical Zoom
- DWDR
- Smart Tracking
- Smart Detection
- EIS (Electronic Image Stabilization)
- Defog
- 500m IR distance
- Optional wiper(-W)
- 24VAC power supply
- Vandal proof(IK10)
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | F1.6, 1/1 sec, 50 IRE, AGC On: Color : 0.02 lux; B/W : 0.002 lux; 0 lux with IR |
| F1.6, 1/30 sec, 50 IRE, AGC On: Color : 0.3 lux; B/W : 0.02 lux; 0 lux with IR | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| S/N Ratio | ≥ 55dB |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | Support |
| Shutter Time | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Masking | 24 privacy masks programmable; optional multiple colors and mosaics |
| Lens | |
| Focal Length | 4.3-129mm, 30x |
| Zoom Speed | Approx.3s(Optical Wide~Tele) |
| Angle of View | 57.4-2.8 degree (Wide~Tele) |
| Minimum Working Distance | 10-1500mm(Wide~Tele) |
| Aperture Range | F1.6~F5.0 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s |
| Tilt Range | -2°-90° (Auto Flip ) |
| Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power loss recovery | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Freeze Frame | Support |
| Smart-tracking | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger |
| Smart tracking when patrol between multiple scenarios | |
| Infrared | |
| IR irradiation distance | 500m |
| IR irradiation angle | Adjustable by zoom |
| Alarm | |
| Alarm Input | 7 Inputs |
| Alarm Output | 2 |
| Alarm Actions | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
| Input & Output | |
| Monitor Output | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input | 1 Mic in/Line in interface |
| Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% | |
| Audio Output | 1 Audio output interface |
| Line level, impedance: 600Ω | |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
| 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) | |
| Sub Stream | 50Hz: 25fps(704×576, 352×288, 176×144) |
| 60Hz: 30fps(704×480, 352×240, 176×120) | |
| Third Stream | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) |
| 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120) | |
| Image Compression | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile |
| ROI encoding | Support 24 areas with adjustable levels |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| No. of Simultaneous Users | Up to 20 users |
| Three-Stream | Support |
| Mini SD Card | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW), |
| Host authentication (MAC address) | |
| IP address filtering | |
| Client GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language | English |
| Power Supply | 24 VAC & Hi-PoE |
| Power Consumption | Max. 45W |
| Working Temperature/Humidity | -40°C ~ 65°C (-40°F ~ 149°F) |
| Protection Level | IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimensions | Φ245×399mm (Φ9.65”×15.71”) |
| Weight (approx.) | 6.5kg(14.33Ibs) |
| Mount Option | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; |
| Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ | |
Hikvision DS 2DF7230I5 AEL IP Speed Dome Kamera Pdf Dosyası755.04 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
