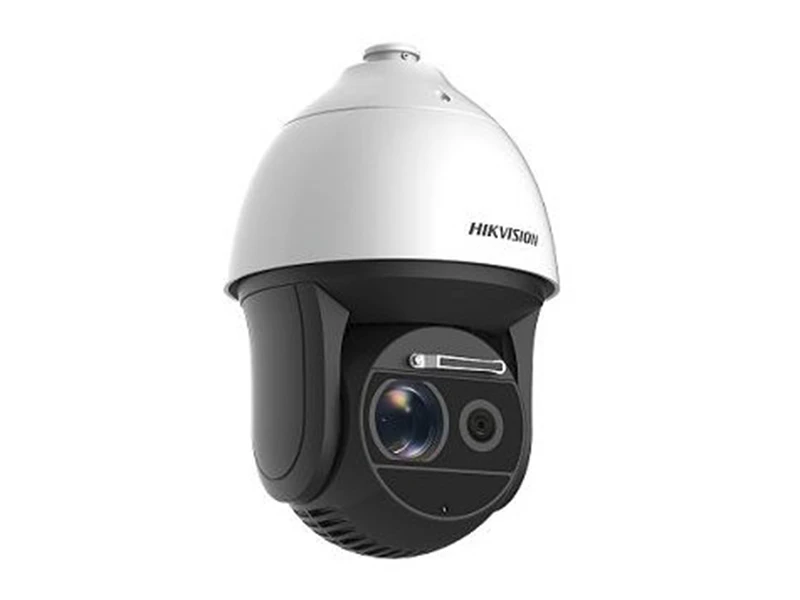

Hikvision DS 2DF8836I5X AEL W IP Speed Dome Kamera

Özellikler

2/3” progressive scan CMOS sensor
4K 8MP(4096*2160)
36X Optical Zoom
Smart Tracking
Smart Detection
500m Laser distance
Optional wiper(-W)
Hi-PoE / 24VAC power supply
Support H.265+/H.265
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
Rapid focus
IP67, IK10

Teknik Özellikler

Camera
Image Sensor	2/3" progressive scan CMOS
Horizontal Resolution	4096x2160
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.005 Lux @(F1.5, AGC ON)
	B/W: 0.0005 Lux @(F1.5, AGC ON)
	0 Lux with IR
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	DWDR
Shutter Time	50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night	ICR
Digital Zoom	16X
Privacy Masking	24 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	7.5 mm to 270 mm, 36× Optical
Zoom Speed	Approx.7.4s(Optical Wide-Tele)
Angle of View	Horizontal field of view: 56.1° to 2.0° (wide-tele)
	Vertical field of view: 33.4° to 1.1° (wide-tele)
	Diagonal field of view: 62.9° to 2.3° (wide-tele)
Minimum Working Distance	10-1500mm(Wide-Tele)
Aperture Range	F1.55~F4.8
Pan & Tilt
Pan Range	360°endless
Pan Speed	Pan Manual Speed: 0.1°~210°/s, Pan Preset Speed: 280°/s
Tilt Range	-20°~90°(Auto Flip)
Tilt Speed	Tilt Manual Speed: 0.1°~150°/s, Tilt Preset Speed: 250°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Smart-tracking	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper	Optional
Infrared
IR irradiation distance	500m
IR irradiation angle	Adjustable by zoom
Alarm
Alarm Input	7 Inputs
Alarm Output	2
Alarm Actions	Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Sub Stream	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream	50Hz: 25fps(704×576, 640×480, 352×288);
Third Stream	60Hz: 30fps(704×480, 640×480, 352×240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
ROI encoding	Support
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode	OFF/Audio input/Audio output
No. of Simultaneous Users	Up to 20 users
Three-Stream	Support
Mini SD Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures	User authentication (ID and PW),
	Host authentication (MAC address)
	IP address filtering
Client GUI
Camera Control	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display	Time: Week: Date, 6 formats on the Client
Client	Support iVMS-4200
Web Browser	IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
General
RS-485 Protocols	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language	English
Power Supply	24 VAC & Hi-PoE
Power Consumption	24 VAC (Max. 60 W)
Power Consumption	Hi-PoE (Max. 50 W)
Working Temperature/Humidity	-40°C ~ 65°C (-40°F ~ 149°F)
Protection Level	IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions	Φ266.6(mm)×435(mm)
Weight (approx.)	8kg (approx.)
Mount Option	Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Mount Option	Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
