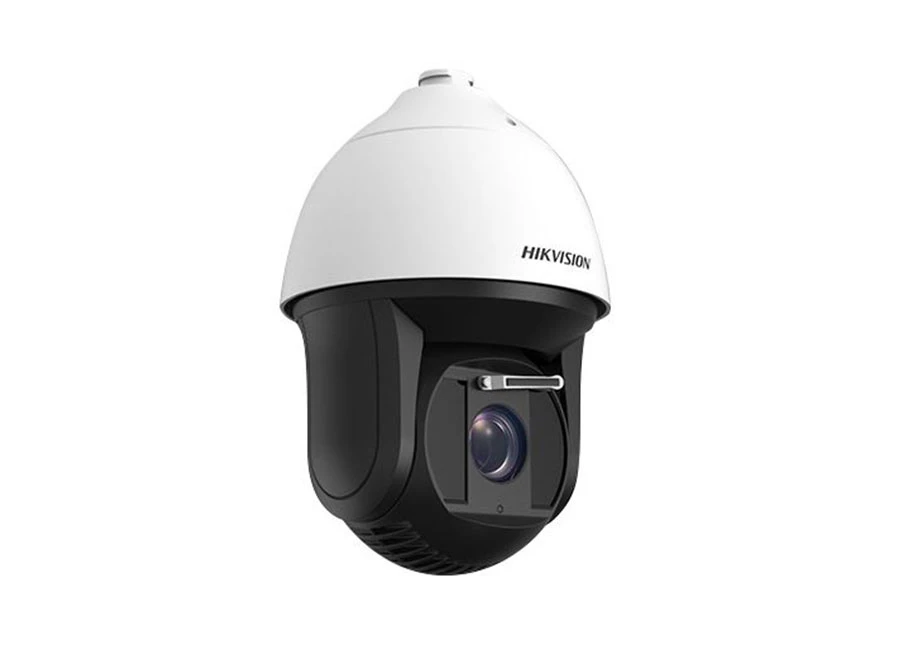

Hikvision DS 2DF8836IX AELW IP PTZ Speed Dome Kamera
Özellikler
- 2/3” HD CMOS sensor
- Up to 4096 × 2160 resolution
- 36X Optical Zoom
- Min. Illumination:
- Color: 0.005 Lux @(F1.5, AGC ON)
- B/W: 0.0005 Lux @(F1.5, AGC ON)
- 0 Lux with IR
- Smart Tracking
- Smart Detection
- 200m IR distance
- Optional wiper(-W)
- Hi-PoE / 24VAC power supply
- Support H.265+/H.265 video compression
- Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
- Rapid focus
- IP67, IK10
Teknik Özellikler
| Camera | |
| Image Sensor: | 2/3" progressive scan CMOS |
| Effective Pixels: | 4096x2160 |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color: 0.005 Lux @(F1.5, AGC ON) |
| B/W: 0.0005 Lux @(F1.5, AGC ON) | |
| 0 Lux with IR | |
| AGC: | Auto/Manual |
| BLC: | ON/OFF |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | DWDR |
| Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s |
| Day& Night: | ICR |
| Digital Zoom: | 16X |
| Privacy Mask: | 24 programmable privacy masks |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 7.5 mm to 270 mm, 36× Optical |
| Zoom Speed: | Approx. 7.8 s (optical lens, wide-tele) |
| Field of View: | Horizontal field of view: 56.1° to 2.0° (wide-tele) |
| Vertical field of view: 33.4° to 1.1° (wide-tele) | |
| Diagonal field of view: 62.9° to 2.3° (wide-tele) | |
| Minimum Working Distance: | 10-1500mm(Wide-Tele) |
| Aperture Range: | F1.5~F4.5 |
| Pan & Tilt | |
| Pan Range: | 360°endless |
| Pan Speed: | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s |
| Tilt Range: | -20°~90°(Auto Flip) |
| Tilt Speed: | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 300 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power-off Memory: | Support |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | ON/OFF |
| Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger |
| Wiper: | Optional |
| Infrared | |
| IR Distance: | 200m |
| IR irradiation angle: | Adjustable by zoom |
| Alarm | |
| Alarm Input: | 7 Inputs |
| Alarm Output: | 2 |
| Alarm Linkage: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
| Network | |
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream: | 50Hz: 25fps(704×576, 640×480, 352×288); |
| 60Hz: 30fps(704×480, 640×480, 352×240) | |
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| ROI encoding: | Eight fixed region for each stream |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Mode: | OFF/Audio input/Audio output |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View: | Up to 20 channels |
| Three-Stream: | Support |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| Security Measures: | User authentication (ID and PW), |
| Host authentication (MAC address) | |
| IP address filtering | |
| Client GUI | |
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client |
| Client: | Support iVMS-4200 |
| Web Browser: | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
| General | |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Power Supply: | 24 VAC & Hi-PoE |
| Power Consumption: | 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater) |
| Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater) | |
| Working Temperature/Humidity: | -40°C to 70°C (-40°F to 158°F) |
| Protection Level: | IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions: | Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14") |
| Weight (approx.): | 8kg (approx.17.64lb) |
Hikvision DS 2DF8836IX AELW IP PTZ Speed Dome Kamera Pdf Dosyası1.15 MB
Teknik Kısa
Irled : Var
Çözünürlük : 8MP
