Açıklama

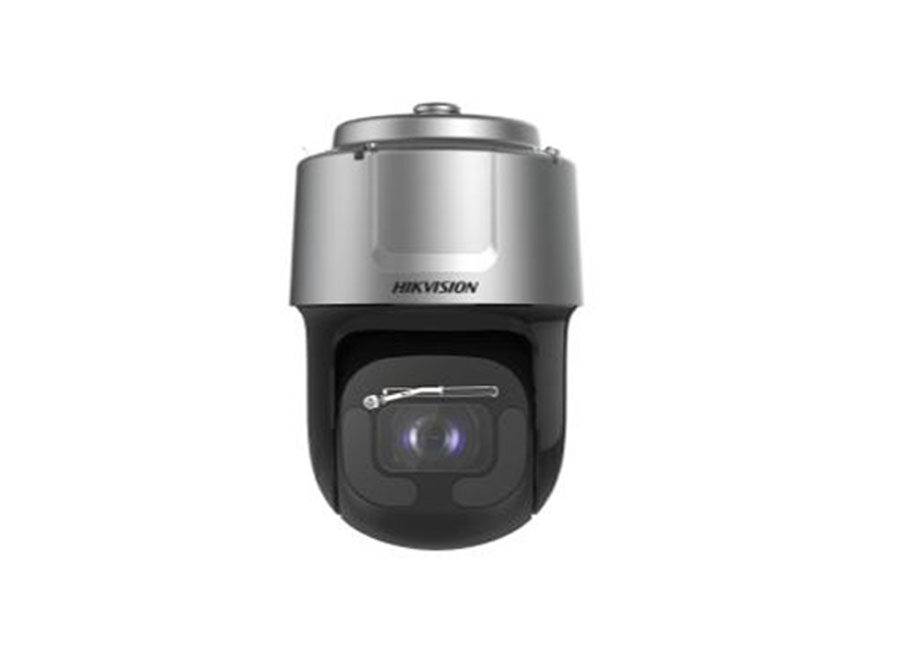

Hikvision DS 2DF9C435IH DLW IP PTZ Kamera
Özellikler
- Dual-sensor, 1/1.8" progressive scan CMOS
- Up to 2688 × 1512 resolution
- Min. illumination
Color 0.0005 Lux @(F1.5, AGC ON)
B/W 0.0001 Lux @(F1.5, AGC ON) - 35× optical zoom, 16× digital zoom
- 120 dB WDR, 3D DNR, HLC, BLC, EIS, Chromatic Defog
- Support H.265+/H.265 video compression
- Support rapid focus
- Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
- Up to 250 m IR distance. Smart IR
- Rain-sensing auto wiper
- IP67
Teknik Özellikler
| Camera | |
| Image Sensor | Dual-sensor, 1/1.8" progressive scan CMOS |
| Effective Pixels | 2688 × 1512 |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color 0.0005 Lux @(F1.5, AGC ON) |
| B/W 0.0001 Lux @(F1.5, AGC ON) | |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | 120dB |
| Shutter Time | 50Hz 1/1 s to 1/30,000 s |
| 60Hz 1/1 s to 1/30,000 s | |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Mask | 24 programmable privacy masks |
| Auto Focus | Auto / Semi-automatic / Manual |
| Rapid Focus | Yes |
| Lens | |
| Focal Length | 5.9 mm to 206.5 mm, 35× Optical |
| Zoom Speed | Approx. 4.4 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view 58.9° to 2.2° (wide-tele) |
| Vertical field of view 35.3° to 1.2° (wide-tele) | |
| Diagonal field of view 65.9° to 2.5°(wide-tele) | |
| Aperture Range | F1.6 - F4.4 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Configurable, from 0.1°/s to 210°/s, |
| Preset Speed 280°/s | |
| Tilt Range | -25° - 90° |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s |
| Preset Speed 250°/s | |
| Proportional Zoom | Yes |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display | ON/OFF |
| Smart-tracking | Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking |
| Infrared | |
| Smart IR | Yes |
| IR Distance | 250m |
| Alarm | |
| Alarm Input | 7 Inputs |
| Alarm Output | 2 |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Network | |
| Ethernet | 1 RJ45 self-adaptive 10 M/100 M Ethernet Interface |
| Main Stream | 50Hz 25fps (2688 × 1512, 2560 × 1440, 2048 × 1536,1920 × 1080, 1280 × 960, 1280 × 720) 60Hz 30fps (2688 × 1512, 2560 × 1440, 2048 × 1536,1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz 25fps(704×576, 640x480,352×288); 60Hz 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream H.265+/H.265/H.264+/H.264 |
| Sub-Stream H.265/H.264/MJPEG | |
| Third Stream H.265/H.264/MJPEG | |
| ROI encoding | Eight fixed region for each stream |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| Three-Stream | Support |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| User/Host | Up to 32 users, 3 levels Administrator, Operator and User |
| Security Measures | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
| Client GUI | |
| Date & Time Display | Time Week Date, 6 formats on the Client |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, Hik-Central |
| Web Browser | IE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Power Supply | 36 VDC |
| Power Consumption | max. 105 W (includes max. 18 W for IR) |
| Working Temperature/Humidity | -40°C - 70°C (-40°F - 158°F) |
| Humidity ≤ 90% | |
| Dimensions | Φ 293 mm × 422 mm (Φ 11.5" × 16.6") |
| Weight (approx.) | Approx. 12 kg (26.5 lb.) |
Hikvision DS 2DF9C435IH DLW IP PTZ Kamera Pdf Dosyası976.57 KB
Teknik Kısa
Ses : Var
Depolama : Var
Çözünürlük : 4MP
Irled : Var
