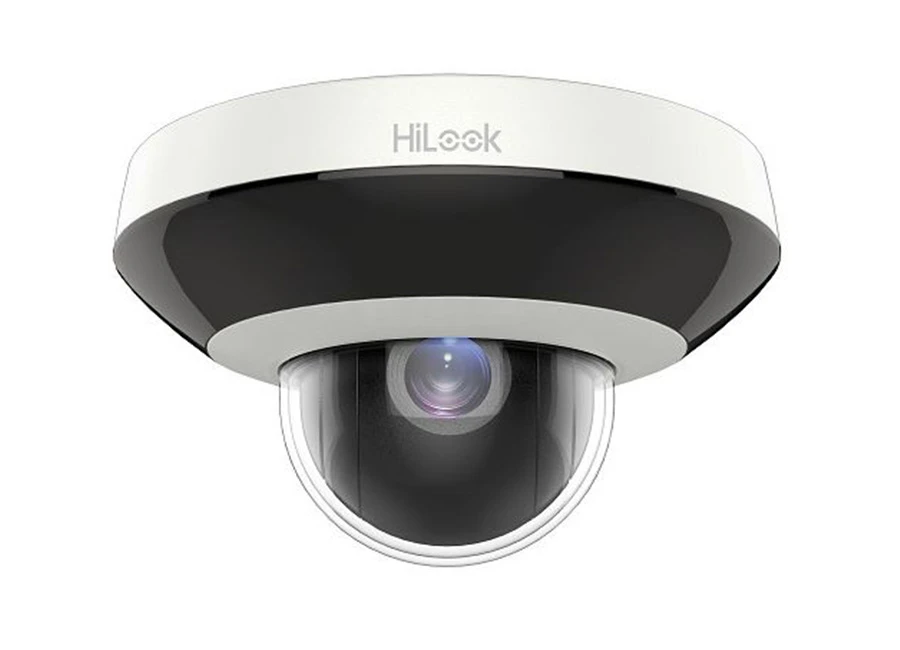

HiLook PTZ N1200I DE3 IR IP PTZ Kamera

Özellikler

1/2.8" progressive scan CMOS
Up to 1920 × 1080@30fps resolution
Min. illumination:

Color: 0.01 Lux @(F1.6, AGC ON)

B/W: 0.001 Lux @(F1.6, AGC ON)

0 Lux with IR

16× digital zoom
120 dB WDR, 3D DNR, EIS,Defog
12 VDC & PoE(802.3af)
Up to 15 m IR distance
IP66
Support H.265+/H.265 video compression
Support ONVIF, ISAPI, CGI, HIKVISION SDK and Third-Party Management Platform

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.01 Lux @(F1.6, AGC ON)
	B/W: 0.001 Lux @(F1.6, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
WDR	120dB
Shutter Time	50Hz: 1/1 s to 1/30,000 s
Shutter Time	60Hz: 1/1 s to 1/30,000 s
Day& Night	ICR
Digital Zoom	16×
Privacy Mask	24 programmable privacy masks
Lens
Focal Length	2.8 mm, 4 mm, optional
Field of View	2.8 mm: horizontal FOV 101.6°; vertical FOV 56°, diagonal FOV 120°
Field of View	4mm: horizontal FOV 80.7°; vertical FOV 43.5°, diagonal FOV 95°
Minimum Working Distance	2.8 mm: > 0.7 m; 4 mm: > 1 m
Aperture Range	F1.6
Pan & Tilt
Pan Range	° to 330°
Pan Speed	Configurable, from 0.1°/s to 100°/s
Pan Speed	Preset Speed: 100°/s
Tilt Range	Tilt: 0°~90°
Tilt Speed	Configurable, from 0.1°/s to 100°/s
Tilt Speed	Preset Speed: 100°/s
Number of Preset	300
Power-off Memory	Support
Infrared
IR Distance	15m
Input & Output
Audio Input	1-ch audio input
Audio Output	1-ch audio output
Network
Max.Image Resolution	1920×1080
Main Stream	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
Main Stream	60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream	50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
ROI encoding	Main stream, sub-stream, and third stream respectively support four fixed areas.
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View	Up to 20 channels
Three-Stream	Support
Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host	Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures	User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
General
Power Supply	12 VDC & PoE
Power Consumption	Max.: 12 W
Working Temperature/Humidity	Working Temperature: -10°C to 55°C (-14°F to 131°F)
Working Temperature/Humidity	Working Humidity: ≤ 90%
Protection Level	IP66 Standard, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy, PC, PC+ABS
Dimensions	Φ 124.3 mm × 76.9 mm (Φ 4.89" × 3.03")
Weight (approx.)	Approx. 450 g (0.99 lb.)
