Açıklama

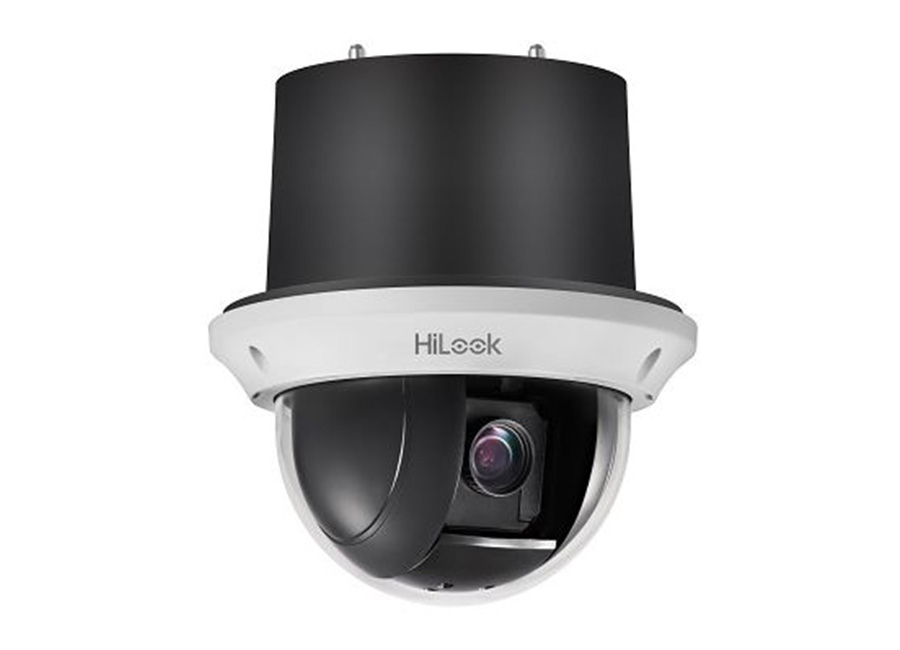

HiLook PTZ N4215 DE3 IR IP Speed Dome Kamera
Özellikler
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination:
0 Lux with IR
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001 Lux @(F1.6, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | 120dB |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 5 mm to 75 mm, 15× optical |
| Zoom Speed | Approx. 2.4 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 53.8° to 4.0° (wide-tele) |
| Vertical field of view: 31.9° to 2.3° (wide-tele) | |
| Diagonal field of view: 60.4° to 4.6°(wide-tele) | |
| Minimum Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F3.0 |
| Pan & Tilt | |
| Pan Speed | Configurable, from 0.1°/s to 100°/s |
| Preset Speed: 100°/s | |
| Tilt Range | ° to 90° (Auto-flip) |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s |
| Preset Speed: 80°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Network | |
| Ethernet | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
| 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) | |
| Sub Stream | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) |
| 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240) | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| ROI encoding | Support 4 areas with adjustable levels |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| Three-Stream | Support |
| Storage | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Security Measures | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
| General | |
| Language | English |
| Power Supply | 12 VDC &POE (802.3at,class4) |
| Power Consumption | Max.:18 W (IR Max.6 W) |
| Working Temperature/Humidity | Working Temperature: -10°C to 55°C (14°F to 131°F) |
| Working Humidity: ≤ 90% | |
| Protection Level | TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | ADC12, PC, PMMA, SECC |
| Dimensions | Φ 165.9 mm × 290 mm (Φ 6.53" × 11.42") |
| Weight (approx.) | Approx. 2 kg (4.41 lb) |
HiLook PTZ N4215 DE3 IR IP Speed Dome Kamera Pdf Dosyası600.57 KB
Teknik Kısa
Irled : Var
Çözünürlük : 2MP (1080P)
