Açıklama

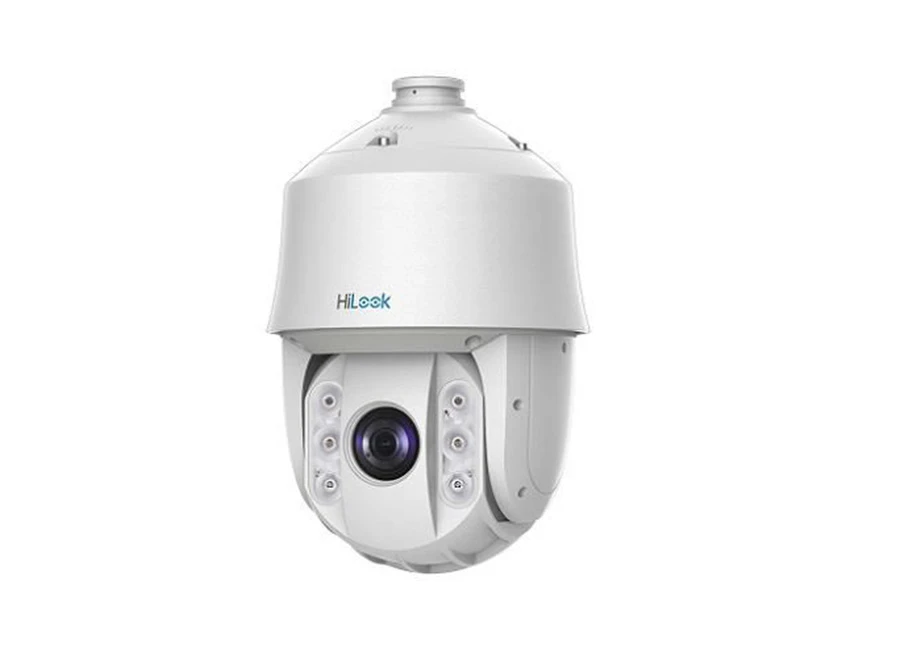

HiLook PTZ N5225I AE IR IP Speed Dome Kamera

Özellikler

1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination:

Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001 Lux @(F1.6, AGC ON)

0 Lux with IR

Up to 150 m IR distance
25× optical zoom, 16× digital zoom
120dB WDR, 3D DNR, HLC, BLC, Smart IR
24 VAC & PoE+ (802.3at, class4)
Support H.265+/H.265 video compression
Up to 24 programmable privacy masks
Support ROI
Support smart detection

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.005 Lux @(F1.6, AGC ON)
	B/W: 0.001 Lux @(F1.6, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	120dB
Shutter Time	1/1 s to 1/30,000 s
Day& Night	ICR
Digital Zoom	16×
Privacy Masking	24 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	4.8 mm to 120 mm, 25× optical
Zoom Speed	Approx. 3.2 s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 57.6° to 2.5° (wide-tele)
	Vertical field of view: 34.4° to 1.4° (wide-tele)
	Diagonal field of view: 64.5° to 2.9° (wide-tele)
Minimum Working Distance	10 mm to 1500 mm (wide-tele)
Aperture Range	F1.6 to F3.5
Pan & Tilt
Pan Speed	Configurable, from 0.1°/s to 120°/s
Pan Speed	Preset Speed: 120°/s
Tilt Range	-15°-90° (Auto Flip )
Tilt Speed	Configurable, from 0.1°/s to 80°/s
Tilt Speed	Preset Speed: 80°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets for each patrol
Pattern	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display	ON/OFF
Infrared
IR irradiation distance	150m
IR irradiation angle	Adjustable by zoom
Network
Ethernet	10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional)
Max.Image Resolution	1920×1080
Main Stream	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
Main Stream	60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
ROI encoding	Support 4 areas with adjustable levels
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users	Up to 20 users
Three-Stream	Support
Mini SD Card	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures	User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Hik-Connect	Support
General
Menu Language	English
Power Supply	AC 24V and PoE (802.3at, class4)
Power Consumption	Max.:18 W
Working Temperature/Humidity	-30°C to 65°C (-22°F to 149°F)
Protection Level	IP66 standard (outdoor dome)
Protection Level	TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions	Φ 213.4 mm × 305 mm (Φ 8.40" × 12.01")
Weight (approx.)	Approx. 3.3 kg (7.28 lb)
