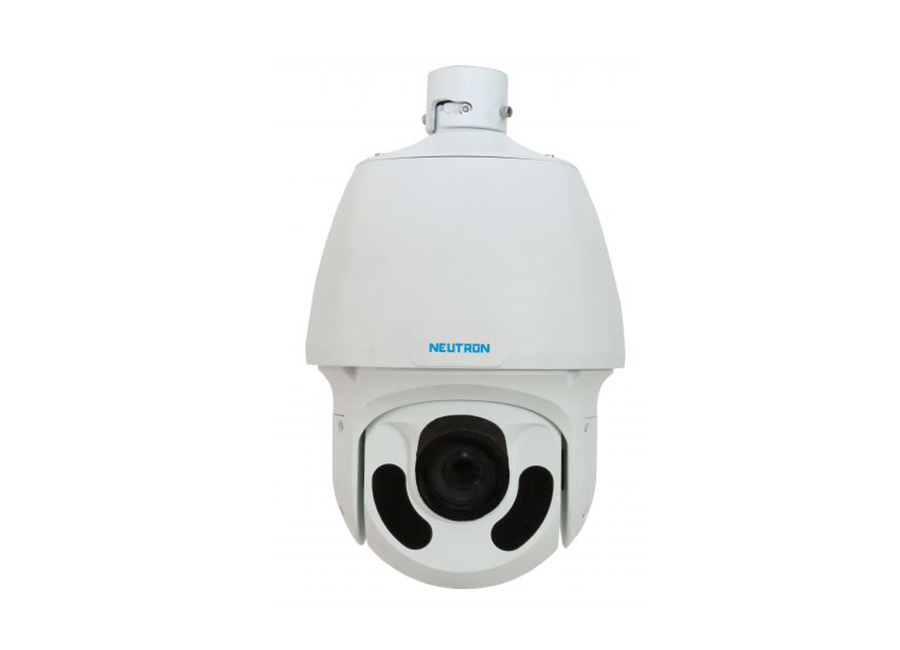

Neutron IPC6222ER X20P B IP PTZ Kamera
Özellikler
Teknik Özellikler
IPC6222ER-X20-B | IPC6222ER-X20P-B | |||||||
Camera | ||||||||
Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||||
Lens | 5.2 ~ 104mm, AF automatic focusing and motorized zoom lens | |||||||
Digital Zoom | 16.1 | |||||||
Optical Zoom | 20.1 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
5.2 | 85.1 | 34 | 17 | 8.5 | ||||
104 | 1701.8 | 680.7 | 340.4 | 170.2 | ||||
Angle of View (H) | 60.2° ~ 3.0° | |||||||
Angle of View (V) | 38.6° ~ 2.0° | |||||||
Angle of View (O) | 79.5° ~ 4.2° | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | |||||||
Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) | |||||||
0Lux with IR | ||||||||
Iris | Auto/Manual; F1.5 ~ F3.0 | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
S/N | >52dB | |||||||
IR Range | UP to 150m (492ft) | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; | |||||||
Sub Stream: 2MP (1920*1080), Max 30fps; | ||||||||
Third Stream: D1 (720*576), Max 30fps | ||||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
EIS | Supported | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 24 areas | |||||||
ROI | Up to 8 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Smart | ||||||||
Behavior Detection | Intrusion, cross line, motion detection, auto tracking | |||||||
Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
cross line | Cross a pre-defined virtual line | |||||||
motion detection | Moving within a pre-defined virtual region | |||||||
Recognition | Face detection, Audio detection | |||||||
Intelligent Identification | Object Left, Object Moving | |||||||
Statistical Analysis | People counting | |||||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
Audio | ||||||||
Audio Compression | G.711 | |||||||
Two-way audio | Supported | |||||||
Suppression | Supported | |||||||
Sampling Rate | 8KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256GB | |||||||
Network Storage | ANR | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, TLS, SSL, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
Pan & Tilt | ||||||||
Pan Range | 360° (endless) | |||||||
Pan Speed | 0.1°/s ~ 240°/s | |||||||
Preset speed: 300°/s | ||||||||
Tilt Range | –15° ~ 90° (auto reverse) | |||||||
Tilt Speed | 0.1° ~ 160°/s | |||||||
Preset speed: 240°/s | ||||||||
Number of Presets | 1024 | |||||||
Patrol | Up to 16 patrols, up to 32 presets per patrol | |||||||
Home Position | Supported | |||||||
Interface | ||||||||
Audio I/O | Audio cable | |||||||
Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
Alarm I/O | 1.1 | |||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
General | ||||||||
Power | AC 24V±25%, DC 24V±25% | AC 24V±25%, DC 24V±25%, PoE (PSE Required) | ||||||
Power consumption: 9 ~ 42W | ||||||||
Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9” x 14.2”) | |||||||
Weight | 5.28kg (11.6lb) | |||||||
Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) | |||||||
Ingress Protection | IP66 |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
