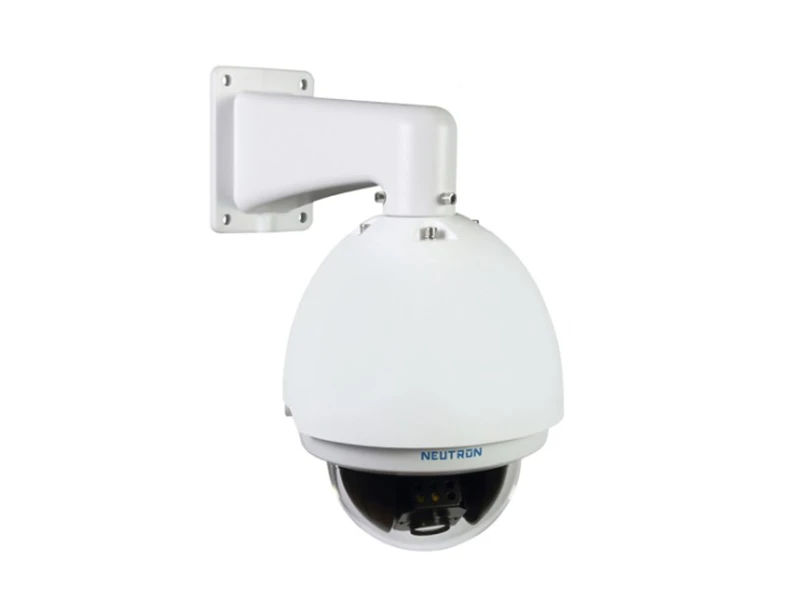

Neutron SD63230S HN IP HD Speed Dome Kamera

Özellikler

30x optical zoom
H.264 & MJPEG dual-stream encoding
Max. 25/30fps @ 1080P(1920x1080) & 720P resolution
DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Max 300°/s pan speed, 360° endless pan rotation
Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
Built-in 2/1 alarm in/out
Support intelligent 3D positioning with DH-SD protocol
Micro SD memory, IP66, IK10(optional)

Teknik Özellikler

Camera
Image Sensor	1/2.8” Exmor CMOS
Effective Pixels	1944(H) x 1092(V)
Scanning System	Progressive
Electronic Shutter Speed	1/1 ~ 1/30,000s
Min. Illumination	Color: 0.05Lux @ F1.6; B/W: 0.005Lux @ F1.6
S/N Ratio	More than 50dB
Video Output	BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR (Digital WDR)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	Ultra DNR (2D/3D)
Privacy Masking	Up to 24 areas
Digital Zoom	16x
Lens
Focal Length	4.3mm~129mm(30x Optical zoom)
Max Aperture	F1.6 ~ F5
Focus Control	Auto / Manual
Angle of View	H: 65.1° ~ 2.34°
Close Focus Distance	10mm~ 1500mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s
Preset Speed	Pan: 300° /s; Tilt: 200° /s
Preset	80(DH-SD), 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Video
Compression	H.264 / MJPEG
Resolution	1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF
	(352×288/352×240)
Frame Rate	Main Stream	1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression	G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	1
Alarm	2/1 channel In/Out
General
Power Supply	AC 24V/2.2A (±10%)
Power Consumption	9.5W, 21W (Heater on)
Working Environment	-40ºC ~ 60ºC / Less than 90% RH
Ingress Protection	IP66 & IK10(optional)
Dimensions	Φ211.9(mm) x 322.1(mm)
Weight	6.8kg
