Açıklama

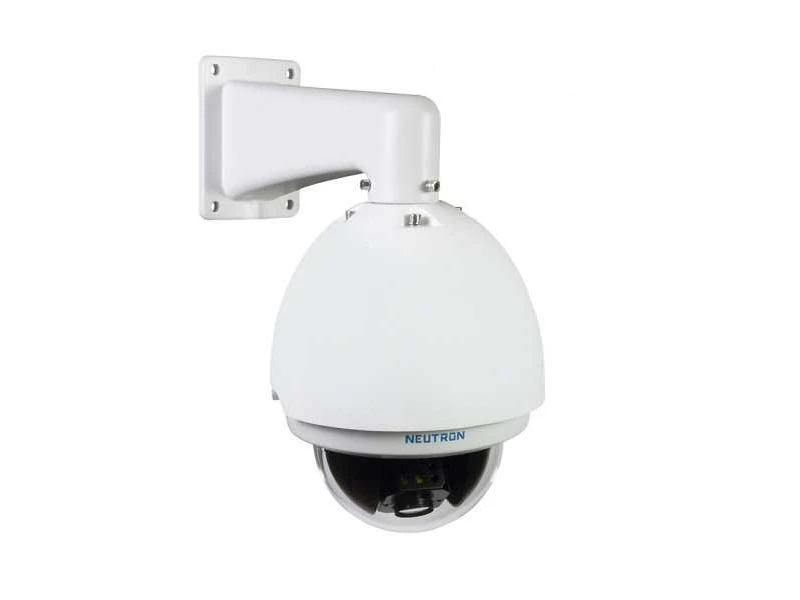

Neutron SD6323E HN IP Speed Dome Kamera
Özellikler
- Powerful 23x optical zoom
- H.264 & MJPEG dual-stream encoding
- 25/30fps@D1(4CIF)/CIF/VGA resolution
- DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max 300 °/s pan speed, 360° continuous pan rotation
- Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- Micro SD memory, IP66
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/4" EXview HAD CCD II | |
| Effective Pixels | 976(H) ×582(V) /976(H) ×494(V) | |
| Scanning System | Interlacing | |
| Electronic ShutterSpeed | 1/1s ~1/100,000s | |
| Min. Illumination | Color:0.01 Lux/F1.6 | |
| B/W: 0.001Lux/F1.6 | ||
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 2D / 3D | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 3.9mm~89.7mm (23xOptical zoom) | |
| Max Aperture | F1.6~ F3.7 | |
| Focus Control | Auto / Manual | |
| Angle of View | H: 61.68° ~3.06° | |
| Close Focus Distance | 100mm~1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~ 250°/s; Tilt: 0.1° ~150°/s | |
| Preset Speed | Pan: 300°/s; Tilt: 200°/s | |
| Preset | 80(DH-SD) , 255(Pelco-P/D) | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | |
| Time Task | Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | D1(704×576/704×480)/CIF(352×288/352×240) / QCIF(176×144/176×128) / VGA(640×480) | |
| Record | Main Stream | 1~25/30fps at all resolution |
| Speed | Sub Stream | 1~25/30fps at all resolution |
| Bit Rate | 56K ~ 4096Kbps | |
| Audio | ||
| Compression | G.711a / G.711u (32kbps) / PCM (128kbps) | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Ver. 2.0 conformance | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max64GB | |
| RS485 | 1 | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V/3A (±10%), DC12V optional | |
| Power Consumption | 13W, 25W(Heater on) | |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10(optional) | |
| Dimensions | Φ222(mm) x 322 (mm) | |
| Weight | 5.0kg | |
Teknik Kısa
Çözünürlük : D1
Depolama : Var
Ses : Var
