Açıklama

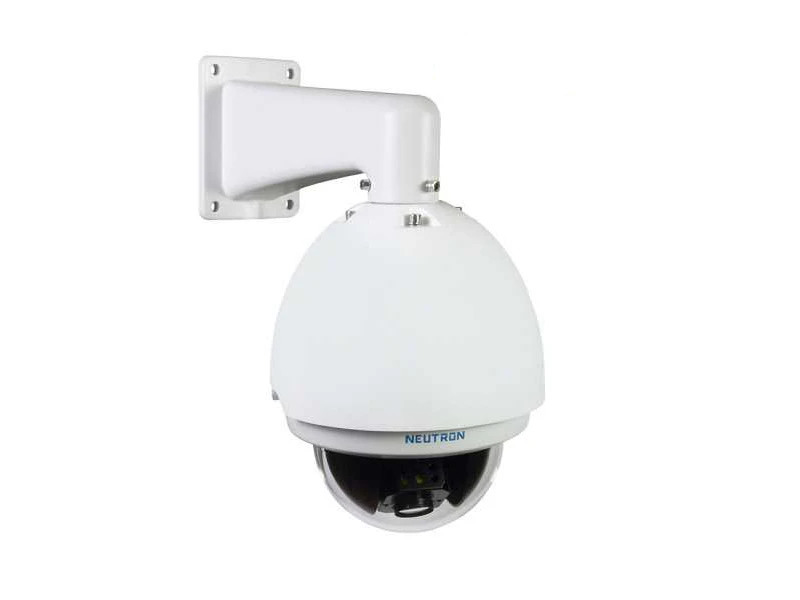

Neutron SD6323C HN IP Speed Dome Kamera
Özellikler
- Powerful 23x optical zoom
- H.264 & MJPEG dual-stream encoding
- 25/30fps@D1(4CIF)/CIF/VGA resolution
- DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max 300 °/s pan speed, 360° continuous pan rotation
- Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- Micro SD memory, IP66
Teknik Özellikler
| Camera | |||
| Image Sensor | 1/4"CMOS | ||
| Effective Pixels | 640(H) × 480(V) | ||
| Scanning System | Progressive | ||
| Electronic ShutterSpeed | 1/50(60)s~1/100,000s | ||
| Min. Illumination | Color:0.5Lux/F1.6 | ||
| B/W: 0.05Lux/F1.6 | |||
| S/N Ratio | More than 50dB | ||
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | ||
| Camera Features | |||
| Day/Night | Auto(ICR) / Color / B/W | ||
| Backlight Compensation | BLC | ||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||
| Gain Control | Auto / Manual | ||
| Noise Reduction | 2D | ||
| Digital Zoom | N.A. | ||
| Lens | |||
| Focal Length | 3.9 mm~89.7mm | ||
| (23x Optical zoom) | |||
| Max Aperture | F1.6~ F3.7 | ||
| Focus Control | Auto / Manual | ||
| Angle of View | H: 53.5° ~2.62° | ||
| Close Focus Distance | 100mm~1000mm | ||
| PTZ | |||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | ||
| Manual Control Speed | Pan: 0.1° ~ 250°/s; Tilt: 0.1° ~150°/s | ||
| Preset Speed | Pan: 300°/s; Tilt: 200°/s | ||
| Preset | 80(DH-SD) , 255(Pelco-P/D) | ||
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | ||
| Speed Setup | Human-oriented focal length/ speed adaptation | ||
| Power up Action | Auto restore to previous PTZ and lens status after power failure | ||
| Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | ||
| Time Task | Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time | ||
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | ||
| Video | |||
| Compression | H.264 / MJPEG | ||
| Resolution | D1(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×128) / VGA(640×480) | ||
| Record | Main Stream | 1~25/30fps at all resolution | |
| Speed | Sub Stream | 1~25/30fps at all resolution | |
| Bit Rate | 56K ~ 4096Kbps | ||
| Audio | |||
| Compression | G.711a / G.711u (32kbps) / PCM (128kbps) | ||
| Interface | 1/1 channel In/Out | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||
| ONVIF | ONVIF Ver. 2.0 conformance | ||
| Max. User Access | 20 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Auxiliary Interface | |||
| Memory Slot | Micro SD, Max 32GB | ||
| RS485 | 1 | ||
| Alarm | 2/1 channel In/Out | ||
| General | |||
| Power Supply | AC24V/3A (±10%), DC12V optional | ||
| Power Consumption | 35W, 25W(Heater on) | ||
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | ||
| Protection Level | IP66, IK10 optional | ||
| Dimensions | Φ222(mm) x 322 (mm) | ||
| Weight | 5.0kg | ||
Teknik Kısa
Çözünürlük : D1
Ses : Var
Depolama : Var
