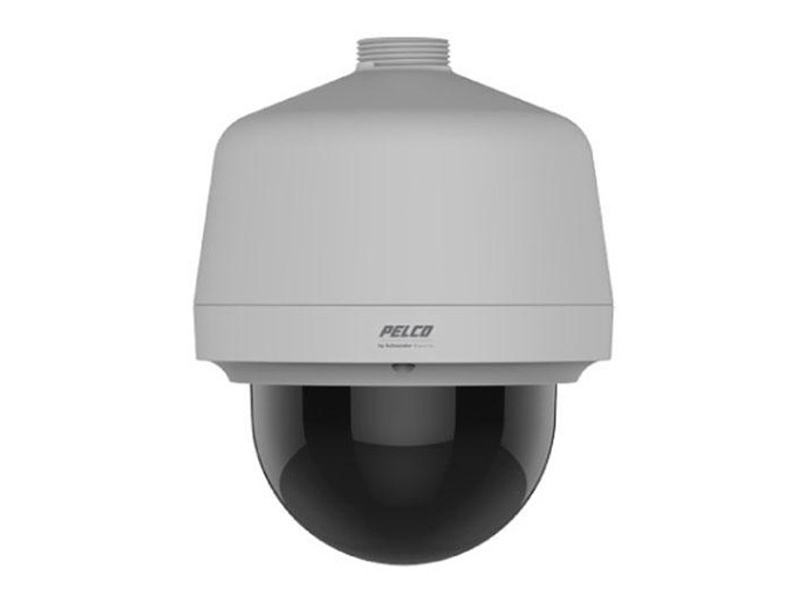

Pelco P1220 ESR1 IP Speed Dome Kamera
Özellikler
- Up to 1920 x 1080 Resolution
- 16:9 Aspect Ratio; 1080p at 30 Images per Second (ips)
- 2.0 Megapixel (MPx), 20X Optical Zoom, 12X Digital Zoom IP Camera
- Ability to Control and Monitor Video Over IPv4 Network
- Built-in Analytics Including Motion Detection and Camera Sabotage
- 2 Video Streams: Dual H.264 or H.264 and Scalable MJPEG
- 360° Continuous Pan Rotation up to 430° per Second
- Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP
- PoE+ IEEE 802.3at Class 4 (For Non-Environmental Units)
- 16 Preset Tours, 128 Dome Presets, 8 Window Blanks
- Open IP Standards
- ONVIF Profile S and Profile G Conformant
- Aluminum Construction
- Includes Heater and Fan
- 1.5-inch NPT (Male) Mounting Thread
- IK10 (20J) Impact Resistance
- Light Gray Finish, RAL 7047
Teknik Özellikler
SKU | P1220-ESR1 |
Manufacturer | Pelco |
Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | Non Infrared |
Resolution | 2 Megapixel |
Lens Type | Motorized Zoom |
Lens Size | 20X |
Mount Type | Pendant |
Compression Method | H.264, M-JPEG |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 24vAC |
Electronic Shutter | 1 ~ 1/8,000 sec |
Image Device | 1/3-inch CMOS Sensor |
Minimum Scene Illumination | Color: (33 ms) 0.3 lux, Color: (200 ms) 0.08 lux, Mono: (33 ms) 0.1 lux, Mono: (200 ms) 0.015 lux |
Operating Humidity | 20% to 80% (noncondensing) |
Operating Temperature | –40° to 50°C (–40° to 122°F) |
OSD Menu | English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Arabic, Simplified Chinese, and Korean |
Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP), GB28181 |
S/N Ratio | 50 dB |
Weatherproof | IP66 |
Digital Noise Reduction | 3D Yes (ON/OFF selectable) |
Processor | Intel Core i3 Processor, 2.4 GHz |
Angle of View | Horizontal: 55.4° (wide) ~ 2.9° (tele) |
Rotation Angle | 360° |
Wide Dynamic Range | 60 dB |
Automatic White Balance | 2,500° to 8,000°K |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night | Yes |
Teknik Kısa
Çözünürlük : 2MP (1080P)
