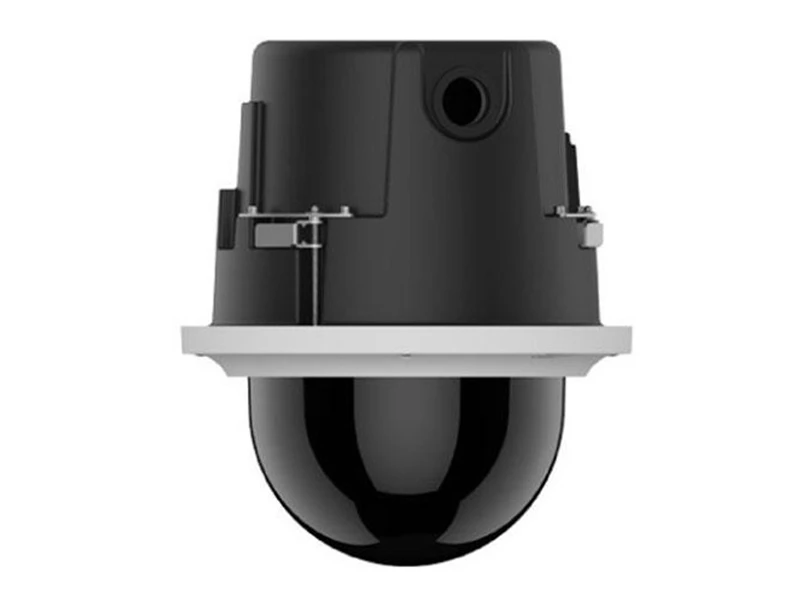

Pelco P1220 YSR0 IP Speed Dome Kamera
Özellikler
- Up to 1920 x 1080 Resolution
- 16:9 Aspect Ratio; 1080p at 30 Images per Second (ips)
- 2.0 Megapixel (MPx), 20X Optical Zoom, 12X Digital Zoom IP Camera
- Ability to Control and Monitor Video Over IPv4 Network
- Built-in Analytics Including Motion Detection and Camera Sabotage
- 2 Video Streams: Dual H.264 or H.264 and Scalable MJPEG
- 360° Continuous Pan Rotation up to 430° per Second
- Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP
- PoE+ IEEE 802.3at Class 4 (For Non-Environmental Units)
- 16 Preset Tours, 128 Dome Presets, 8 Window Blanks
- Open IP Standards
- ONVIF Profile S and Profile G Conformant
- Single Back Box for Suspended or Hard Ceiling Applications
- Requires 14.01 cm (5.51 in.) Space Above Ceiling
- Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 3.81 cm (1.5 in.)
- Includes Heater and Fan
- Aluminum and Stainless Steel Construction
- Suitable for Use in Environmental Air Handling (Plenum) Spaces
- IK10 (20J) Impact Resistance
- Light Gray Finish, RAL 7047
Teknik Özellikler
| SKU | P1220-YSR0 |
| Manufacturer | Pelco |
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 20X |
| Mount Type | In-ceiling |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC |
| Electronic Shutter | 1 ~ 1/8,000 sec |
| Image Device | 1/3-inch CMOS Sensor |
| Minimum Scene Illumination | Color: (33 ms) 0.3 lux, Color: (200 ms) 0.08 lux, Mono: (33 ms) 0.1 lux, Mono: (200 ms) 0.015 lux |
| Operating Humidity | 20% to 80% (noncondensing) |
| Operating Temperature | –40° to 50°C (–40° to 122°F) |
| OSD Menu | English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Arabic, Simplified Chinese, and Korean |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP), GB28181 |
| S/N Ratio | 50 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D Yes (ON/OFF selectable) |
| Processor | Intel Core i3 Processor, 2.4 GHz |
| Angle of View | Horizontal: 55.4° (wide) ~ 2.9° (tele) |
| Rotation Angle | 360° |
| Wide Dynamic Range | 60 dB |
| Automatic White Balance | 2,500° to 8,000°K |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
