Açıklama

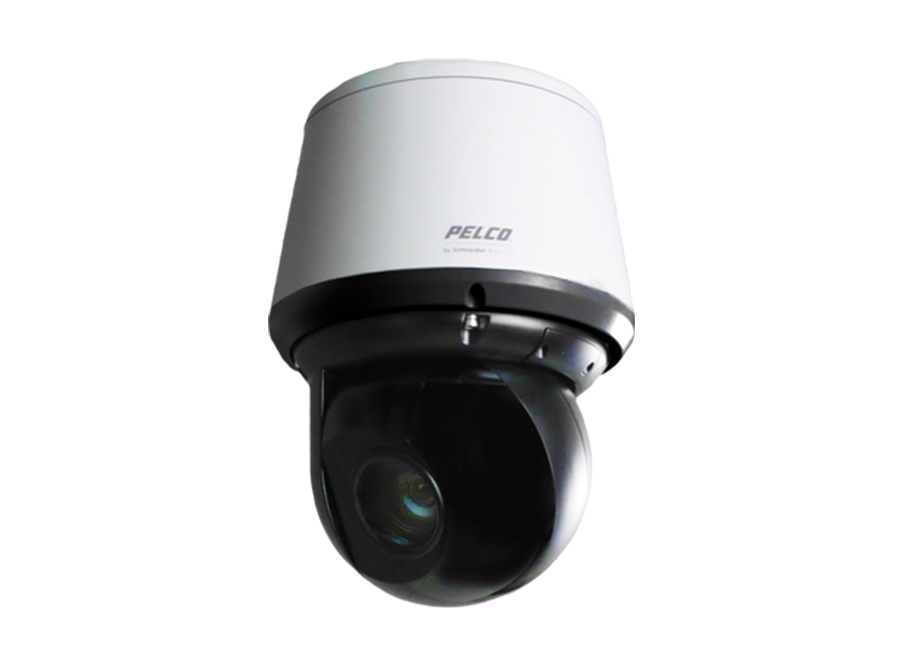

Pelco P2230L ESR IP PTZ Kamera
Özellikler
- 850 nm IR Illumination to 150 m
- H.265, H.264, and MJPEG Video Encoding
- Tilt Range +15° to –90° Degrees
- Low Light Down to 0.1 lux
- IR Illumination with Proportional Brightness Based Upon Zoom
- Up to 120 dB True Wide Dynamic Range (WDR)
- Sabotage and Simple Motion Detection
- Pelco’s Smart Compression Technology
- Up to Full HD 1080p
- Up to 60 Images per Second (ips)
- Power Over Ethernet (802.3bt), 24 VAC, 48 VDC
- Electronic Image Stabilizer (EIS)
- Up to 2 TB Edge Storage with micro SDHC/SDXC Card
Teknik Özellikler
| SKU | P2230L-ESR |
| Manufacturer | Pelco |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Heater & Fan, Infrared, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 1920 X 1080 |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 48vDC, 24vAC |
| Automatic Gain Control (AGC) | Yes |
| Electronic Shutter | 1/4 ~ 1/30,000 sec |
| Image Device | 1/2.8-inch CMOS Sensor |
| IR Wavelength | 850 nm |
| Operating Humidity | 0 to 90% RH (condensing) |
| Operating Temperature | –40° to 60°C (–40°F to 140°F) |
| OSD Menu | English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Arabic, Simplified Chinese, and Korean |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), ARP, ICMP, UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, and 802.1x (EAP) |
| Scanning System | Progressive |
| Weatherproof | IP66 |
| Zoom Ratio | 30X |
| Angle of View | Horizontal: 59.8° (wide) ~ 2.34° (tele), Vertical: 40.5° (wide) ~ 1.48° (tele), Diagonal: 67.8° (wide) ~ 2.77° (tele) |
| IR Distance | 150m/492ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
