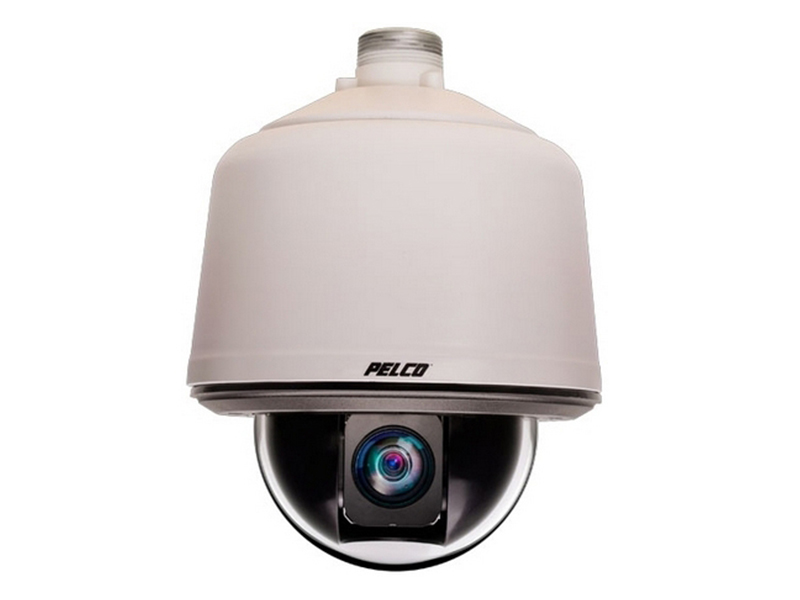

Pelco S6220 EGL1 IP PTZ Speed Dome Kamera
Özellikler
- Up to Full HD 1080p
- Up to 60 Images per Second (ips)
- Power over Ethernet (HPoE and PoE+), 24 VAC, 24 VDC
- Electronic Image Stabilization (EIS)
- Built-in Analytics Suite
- Vandal Resistant IK10 Smoked
- Up to 32 GB Edge Storage with Micro SD Card
- Compatible with Pelco and Third-Party Video Systems
- ONVIF Profile S and Profile G Conformant
- Environmental Pendant Available in Light Gray Finish, RAL9002
- Aluminum Construction, IK10 Rated Nylon Bubble
- Type 4X and IP66
- Uses 1 1/2-inch NPT Thread
- Includes Sun Shield, Heater, and Blower
- –45° to 50°C (–50°F to 122°F) Sustained Operating Temperature
Teknik Özellikler
SKU | S6220-EGL1 |
Manufacturer | Pelco |
Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | Non Infrared |
Resolution | 2 Megapixel |
Lens Type | Motorized Zoom |
Lens Size | 20X |
Mount Type | Pendant |
Compression Method | H.264, M-JPEG |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 24vDC, 24vAC, PoE |
Electronic Shutter | 1/1 ~ 1/10,000 sec |
Minimum Scene Illumination | Color: (33 ms) 0.20 lux 0.03 lux, Color: (250 ms) 0.025 lux 0.008 lux, Mono: (33 ms) 0.06 lux 0.004 lux, Mon: (250 ms) 0.008 lux 0.001 lux |
Operating Humidity | 10 to 100% RH (condensing) |
Operating Temperature | –45° to 50°C (–50°F to 122°F) |
Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6*, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205 |
S/N Ratio | >50dB |
Weatherproof | IP66 |
Digital Noise Reduction | 3D |
Angle of View | 59.5° wide - 3.3° tele |
Rotation Angle | 360° |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night | Yes |
Digital Noise Reduction | Yes |
Automatic White Balance | Yes |
Back Light Compensation | Yes |
Heater & Fan | Yes |
Motion Detection Tracking | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
ONVIF | Yes |
Digital Zoom | Yes |
Teknik Kısa
Çözünürlük : 2MP (1080P)
