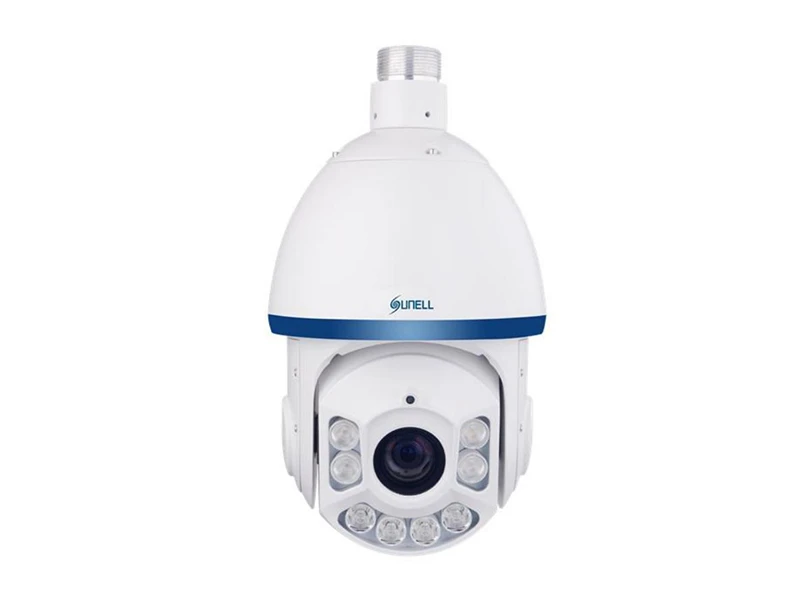

ZCS22(II) IP Speed Dome Kamera

Özellikler

1/2.8" Progressive Scan CMOS
22X Optical Zoom,16X Digital Zoom
Full HD 1080P
Multiple Streams
IR Range 100m
Low bitrate ,Good Low Light Performance
3D DNR, dWDR, ICR

Teknik Özellikler

CAMERA
Image Sensor	1/2.8” Progressive Scan CMOS
Min. illumination	Color: 0.01Lux@(F1.2,AGC ON); B/W: 0Lux@( IR LED ON)
Day & Night	ICR
Shutter Speed	1/8000-1/6s
Auto Iris	Auto/Manual
Wide Dynamic Range	Yes
Digital Noise Reduction	2D/3D
Lens	Sunell 22X Module , 4.7-103mm
Digital Zoom	16X
FOV	58.7°-3.2°
IR LED	8 pcs
IR Range	100m
Pan/Tilt	Pan 0-360°,Tilt -10-90°
Pan/Tilt Speed	Pan 0.01-180°/s ,Tilt 0.01-90°/s ,
Pan/Tilt Speed	Preset Speed Pan:180°/s ,Tilt:90°/s
Preset/Tour/Scan/Track	400/12/12/6
Video Compression	H.264 High/Main/Baseline Profile, MJPEG
Bit Rate (CBR/VBR)	Primary stream:500kbps-12Mbps;
Bit Rate (CBR/VBR)	Secondary stream:100kbps-6Mbps
Audio Compression	G.711 ,RAW_PCM
Max.Resolution	1920x1080/30fps
Stream	Stream1 1920x1080
Stream	Stream2 D1 to QVGA
Image Setting	Rotate Mode,Saturation,Brightness,Contrast,Sharpness
HLC	Yes
ROI	Yes
Defog	Yes
NETWORK
Network Protocols	IPv4,RTP/RTCP,TCP/UDP,HTTPS,DHCP,DNS,FTP,DDNS,PPPOE,SMTP
Alarm Trigger	Motion,Instrusion,LineCrossing,Tamper,Networkdisconnect,Diskalarm,I/O alarm
RTSP Video	Standard RFC2326, Support QuickTime / VLC Player.
Security	User security authentication, Reset, Hardware WatchDog
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand)
System Compatibility	Onvif
INTERFACE
Ethernet	I1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/O	1ch Audio In,1ch Audio Out
Alarm I/O	7ch Alarm In,2ch Alarm Out
RS485	Yes
BNC Output	Yes
Reset Button	YES(Built-In)
Edge Storage	Micro SD/SDHC/SDXC slot(Built-in),Max 64GB
GENERAL
Power Supply	AC24V/2.5A
Power Consumption	MAX 40W
OperatingTemperature	Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
OperatingTemperature	Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F)
Operating Humidity	0% - 90% RH
Protection	IP66,TVS6000V
Approvals	CE / FCC
Product Dimensions	Φ205x332mm
Product Weight	4.3KG
