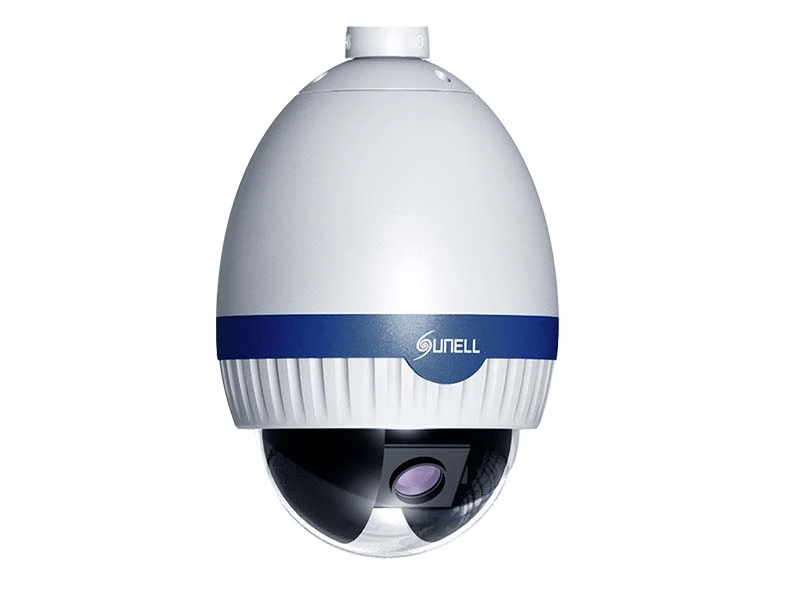

Sunell SN IPS57/20BDN/ZSC22 IP Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Scanning System | Progressive |
| Electronic Shutter | Auto/Manual, 1/1~1/10000s |
| Min. illumination | Color:0.01Lux@(F1.2,AGC ON) |
| B/W:0.001Lux@(F1.2,AGC ON) | |
| S/N Ratio | 55dB |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Lens | |
| Focal Length | 4.7~103mm |
| Max. Aperture | F1.6~F3.5 |
| Angle of View | H:58.7°~3.2° |
| Optical Zoom | 22x |
| Focus Control | Auto/Manual |
| Close Focus Distance | 500mm~1500mm(Wide ~Tele) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless, Tilt: -5° ~ 90° |
| Manual Control Speed | Pan: 0.1° ~180° /s, Tilt: 0.1° ~90° /s |
| Preset Speed | Pan: 180° /s, Tilt: 90° /s |
| Presets | 400 |
| PTZ Mode | 6 Track, 12 Tour, 12 Scan, |
| Speed Setup | Auto/Manual (0-8) |
| Power Off Memory | Support |
| Idle Motion | Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period |
| Intelligence | |
| Auto Tracking | Support |
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Streaming Capability | 3 Streams |
| Stream /Frame Rate | Stream 1: 1920×1080/ 1280×720 @ 25/30fps |
| Stream 2: D1/VGA/640×360/CIF/QVGA @25/30fps | |
| Stream 3: VGA/CIF/QVGA @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 500kbps~12000kbps ; |
| Stream2: 100kbps~6000kbps | |
| Stream3: 100kbps~3000kbps | |
| Day/Night | Auto(ICR) / Color / B/W |
| Image Enhancement | BLC/HLC/dWDR |
| White Balance | Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Electronic Image Stabilization(EIS) | N/A |
| Defog | Yes |
| Digital Zoom | 16x |
| Mirror | Support |
| Region of Interest | Off / On (8 Zone) |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711,RAM_PCM |
| Bit Rate | 64kbps (G.711), 128kps (RAW_PCM) |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP |
| Interoperability | ONVIF, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Edge Storage | NAS |
| Local PC for instant recording | |
| Micro SD card 128GB | |
| Web Viewer | <IE11, Chrome, Firefox |
| Management Software | IMS 3.0 |
| Smart Phone | IOS, Android |
| Interface | |
| Ethernet | I1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Audio In,1ch Audio Out |
| Alarm | 2ch Alarm In,1ch Alarm Out |
| RS485 | Yes |
| BNC Output | Yes |
| Reset Button | Yes(Built-in) |
| General | |
| Power Supply | AC24V/POE+ |
| Power Consumption | Less than 40W |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Working Temperature:-40°C ~ 60°C (-40°F ~ 140°F) | |
| Strorage Conditions | Less than 90% RH |
| Ingress Protection | IP66,TVS6000V |
| Certifications | CE/FCC |
| Casing | Metal |
| Dimensions | Φ237×458mm |
| Net Weight | 4.5Kg |
Sunell SN IPS57/20BDN/ZSC22 IP Speed Dome Kamera Pdf Dosyası418.25 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Depolama : Var
