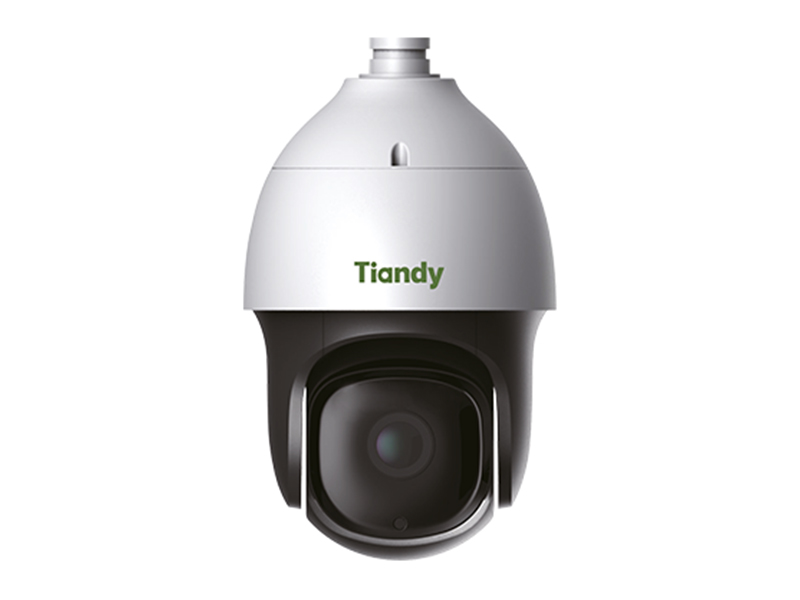

Tiandy TC NH6233I IP PTZ Speed Dome Kamera
Özellikler
- Starlight Ultra Low Light 0.002lux
- H.265/H.264 HP/MP/BP/M-JPEG Codec
- Up to 1920×1080@30fps
- Mechanical WDR 140dB
- Smart IR, IR Range: 200m
- Optical Zoom: 33x, Digital Zoom: 16x
- Speed Max 400°/s, -16~90° Tilt Angle
- NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
- VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/Video Abnormal Detection
- Interface Audio in/out 1/1,Alarm in/out 1/1,MicroSD Card Slot, up to 128GB, Reset Button
- TVS 6000V, Lightning/Surge 4000V Protection, IP66
- Operating Conditions -40°C-70°C, 0～95% RHG
- CE, FCC
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 1280(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color:0.002Lux @ (F1.6,50 IRE,ICR OFF) |
| Black&White:0.001Lux @（F1.6,50 IRE，ICR ON） | |
| 0 Lux with IR | |
| White Balance | Auto/ ATW/ Manual |
| AGC | Auto/Manual |
| S/N Ratio | ≥ 55dB |
| BLC | Y |
| HLC | Y |
| Smart Defog | Y |
| WDR | 140dB |
| Digital Noise Reduction | 3D DNR |
| Exposure Mode | Auto/ Manual/Shutter priority/ Aperture priority |
| Shutter Time | 1/1s～1/100000s |
| Day& Night | IR Cut Filter with Auto Switch |
| Digital Zoom | 16x |
| Privacy Masking | 24 Dynamic Privacy Mask Programmable; Optional Multiple Colors |
| Auto Focus | Auto/ Semi-automatic/ Manual |
| OSD | 16×16,32×32,24×24,48×48,64×64,96x96 Character Size |
| Time/Date/Week/Character Superposition in 5 Regions | |
| PTZ Angle Superposition | |
| Lens | |
| Focal Length | 4.6-152mm, 33x |
| Zoom Speed | Approx.5s(Optical Wide-Tele) |
| Angle of View | 62.1°/(w)~2.18°(t) |
| Minimum Working Distance | 1-1.5m(Wide-Tele) |
| Aperture Range | F1.6-F4.8 |
| Pan & Tilt | |
| Pan Range | 360° Endless |
| Pan Speed | Pan Manual Speed: 0.1° -400°/s |
| Pan Preset Speed: 240°/s | |
| Preset Accurity | ±0.2° |
| Tilt Range | -16°-90° (Auto Flip ) |
| Tilt Speed | Tilt Manual Speed: 0.1°-400°/s |
| Tilt Preset Speed: 240°/s | |
| Proportional Zoom | Rotation Speed Can Be Adjusted Automatically According to Zoom Multiples |
| 3D Position | Y |
| Number of Preset | 500 |
| Scan | 8 |
| Cruise | 8, up to 32 Presets per Cruise |
| Pattern | 8, Each One With 600s Memory or 300 Orders |
| Power loss recovery | Y |
| Guard Action | Preset/ Cruise/ Pattern/ Scan |
| PTZ Position Display | Y |
| Freeze Frame | Y |
| Infrared | |
| IR Irradiation Distance | 200m |
| IR Irradiation Angle | Adjustable by Zoom |
| Interface | |
| Audio Input | 1-ch Mic in(Line in Interface) |
| Line Input 2-2.4V[p-p]; Output Impedance 1KΩ, ±10% | |
| Audio Output | 1-ch, Line level, Impendance: 600Ω |
| Ethernet | 1-ch RJ45 10M/ 100M |
| Alarm Input | 1-ch |
| Alarm Output | 1-ch |
| On-board Storage | MicroSD Card Slot, up to 128GB |
| BNC Output & RS485 | N/A |
| Extension | N/A |
| Network | |
| Ethernet | 10Base -T/100Base-TX RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 1920×1080@25/30fps; |
| 1280×960@25/30fps; | |
| 1280×720@25/30fps;1280×720@50/60fps | |
| 704×576@25/30fps;704×480@50/60fps | |
| Sub Stream | 704×576@25fps/704×480@30fps |
| 352×288@25fps/352×240@30fps | |
| 176×144@25fps/176×120@30fps | |
| Third Stream | 352×288@25fps/352×240@30fps |
| Image Compression | H.265/H.264 High Profile/MJPEG |
| ROI Encoding | 8 Dynamic Areas for Both Main and Sub Stream |
| Audio Compression | G711A/G711U/ADPCM/AAC |
| Audio Bit Rate | 8K～48Kbps |
| Video Bit Rate | 32K～16000Kbps |
| Protocols | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv6/SNMP/SMTP |
| Remote Connection | 5 Users Access at the Same Time |
| User Permission | Up to 32 Users, 4 Levels |
| Security Measures | User Authentication (ID and PW), |
| Host Authentication (MAC Address) | |
| IP Address Filtering | |
| Web Browser | IE8,IE9,IE10,IE11,Firefox3.5+ |
| System Compatibility | ONVIF (Profile S), SDK |
| Advance | |
| Video Analytics | Tripwire/Double Tripwire/Perimeter/Object Abandon/Object |
| Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/Video Abnormal Detection | |
| Intelligent Alarm | Harsh Voice Alarm, Motion Ddetection, Mask Alarm, Port Alarm,Network Disable Alarm, IP Conflict, MAC Conflict Detection,unusual image, scene changing, mic offline. |
| General | |
| Language | English,Spanish,Korean,Italian,Turkish,Thai,Russian,Traditional Chinese,Simplified Chinese,Polish,French |
| Operating Conditions | -40°C-70°C, 0～95% RHG |
| Power Supply | AC24V 3A |
| Power Consumption | 18.6W(IR OFF)/ 32.36W(IR ON ) |
| Circuit Protection | TVS 6000V, Lightning/ Surge 4000V Protection |
| Impact Protection | IP66 |
| Wiper | N/A |
| IR LEDs | 10pcs |
| Dimensions | 222mmx222mmx372mm |
| Weight | 5KG (IP PTZ Only), 8.45KG (with Packing Box) |
Tiandy TC NH6233I IP PTZ Speed Dome Kamera Pdf Dosyası2.15 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
