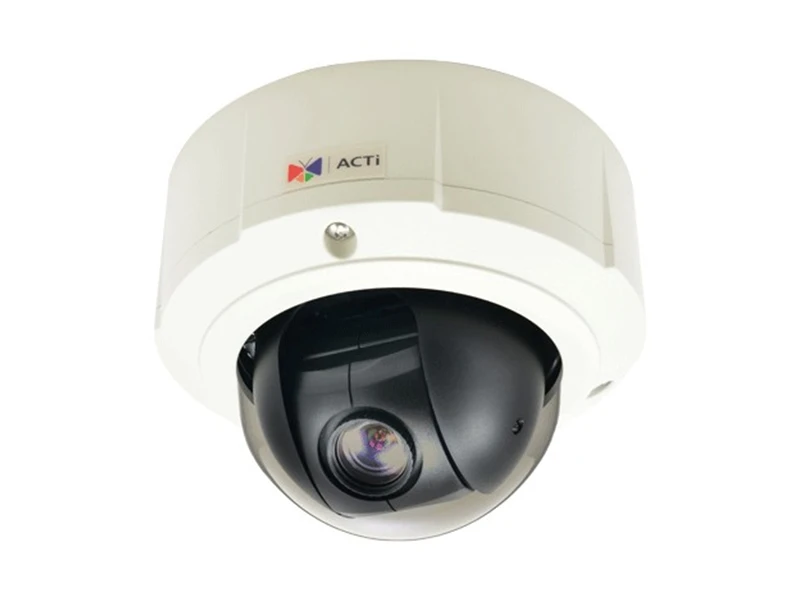

Acti B99 IP HD Speed Dome Kamera
Teknik Özellikler
| Product Type | Mini PTZ |
| Maximum Resolution | 8MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Superior Low Light Sensitivity | No |
| Minimum Illumination | Color: 0.1 lux, B/W: 0.05 lux at F1.8 |
| Mechanical IR Cut Filter | Yes |
| IR LED | No |
| Lens | Zoom, f4.9-49mm / F1.8-3.0, DC iris, Auto focus |
| Zoom Ratio | 10x optical |
| Panning and Tilting Range | Pan: -175°-175°, |
| Tilt: 0°-180° (with E-flip) | |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 53.2°-5.65° |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 8MP |
| Horizontal Resolution (TV lines) | 1550 TVL |
| Multi-Streaming | Dual streams |
| Wide Dynamic Range | Basic WDR (70 dB) |
| Digital Noise Reduction | DNR |
| S/N Ratio | 52 dB |
| Audio | 2-way (Line-in, Line-out) |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P |
| Network Connector | RJ-45 |
| Digital Input/Output | 1/1 |
| Local Storage | MicroSDHC/MicroSDXC memory card slot (card not included) |
| Power Source | DC 12V; PoE Class 3 |
| Environmental Casing | Weatherproof (IP67); Vandal proof (IK10) |
| Bundled Accessories | No |
| Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box |
| Software Based Analytics | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, |
| (require PC based Smart Search Tool, IVS Server or ALPR Server) | Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, |
| Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection | |
| Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
| ONVIF Compliant | Yes |
| Heater | Yes |
| Fan | Yes |
| Starting Temperature | -40°C ~ 60°C |
| (-40°F ~ 140°F) within 30 minutes | |
| Operating Temperature | -40°C ~ 60°C |
| (-40°F ~ 140°F) | |
| Approvals | CE, FCC, IP67, NEMA 4X, IK10 |
| Warranty | 3 Years* |
| (3 Months in continuous motion) |
Teknik Kısa
Çözünürlük : 8MP
Ses : Var
Depolama : Var
