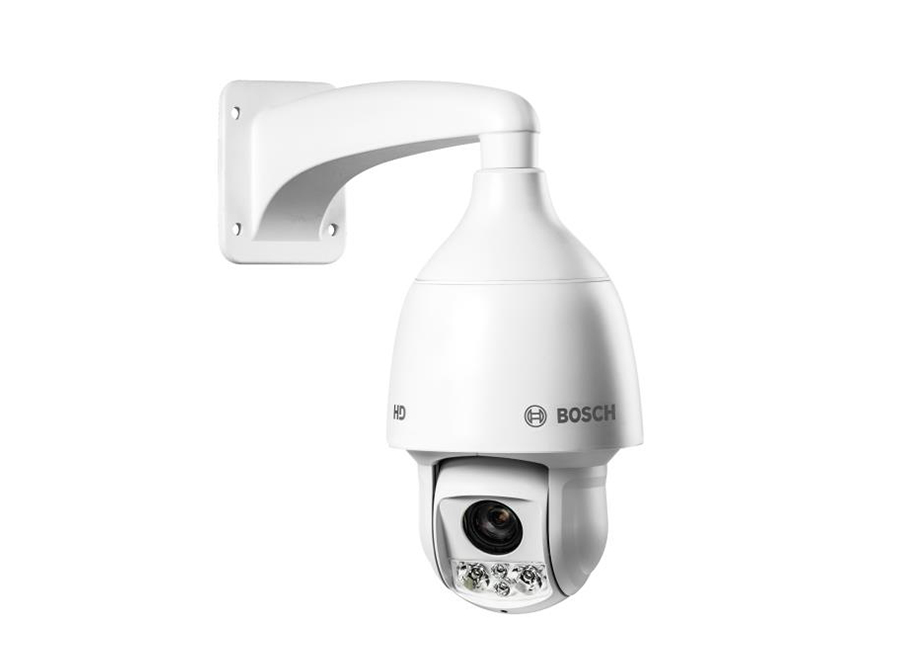

Bosch AUTODOME IP 5000 IR 1080P IP HD Speed Dome Kamera
Özellikler
- High-performance HD outdoor PTZ dome camera with integrated IR illumination for scenes with low or no ambient lighting
- Choice of HD resolution (1080p)
- Long distance illumination up to 180 m (590 ft) allows easy detection and following of moving targets
- Variable illumination ensures that IR light is uniformly distributed in the field to avoid dark spots or over illuminated scene
- Superior privacy masking to safeguard the privacy of individuals
Teknik Özellikler
| Imager | 1/2.8" progressive scan CMOS |
| Total sensor pixels | 2.48M pixels |
| Effective pixels | 1080p: 1984 (H) x 1105 (V) (approximately 2.43M pixels)720p: 1344 (H) x 745 (V) |
| Lens Focal Length | 30x Zoom4.3 mm - 129 mm (F 1.6 - F 5.0) |
| Field of View (FOV) | 2.3° - 65° |
| Focus | Automatic with manual override |
| Iris | Automatic |
| Digital Zoom | 16x |
| Sensitivity / Minimum Illumination (typical) | 30 IRE , 50 IRE |
| SensUp off | 0.11 lux , 0.20 lux |
| SensUp on (1/7.5) | 0.02 lux , 0.04 lux |
| SensUp off | 0.022 lux , 0.04 lux |
| SensUp on (1/7.5) | 0.004 lux , 0.008 lux |
| With infrared (IR) | 0 lux , 0 lux |
| Electronic Shutter Speed | 1/25 sec to 1/15,000 sec (12 steps) |
| WDR | 76dB (DWDR) |
| Signal-to-noise Ratio (SNR) | >50dB (AGC off) |
| Noise Reduction | Intelligent Dynamic Noise Reduction |
| Backlight Compensation (BLC) | On/Off |
| Intelligent Defog | Automatically adjusts parameters for best picture in foggy or misty scenes (Auto/Off) |
| White Balance | Standard Auto, Sodium Vapor Auto, Basic Auto, Manual, Hold, Dominant Color Auto |
| Day/Night | Mechanical switchable IR filter (Auto/On/off) Monochrome |
| Number of LEDs | 4 |
| Wavelength | 850 nm |
| Distance | 180 m(590 ft) (Detection) |
| Beam angle | Wide beam: 36°Narrow beam: 6.3° |
| Pan/Tilt Modes | Normal: 0.1°/s - 120°/sTurbo: Pan: 0.1°/s - 240°/s; Tilt: 0.1°/s - 120°/s |
| Preset Speed | Pan: 240°/sTilt: 160°/s |
| Pan Range | 360° continuous |
| Tilt Range | ° to ±90° |
| Preset Accuracy | ± 0.2° typ. |
| Presets | 256 |
| Tours | Two (2) types of tours:• Recorded tours – two (2), maximum total duration 15 minutes (depending on the amount of commands sent during recording) • Preset tour – one (1) consecutive, one (1) custom |
| Input Voltage | 24 VAC and PoE+ |
| Power Consumption | 24 VAC: 27.5W PoE+: 25.5W |
| Video compression | H.264 (ISO/IEC 14496-10)M‑JPEG |
| Streaming Capability | Quad Stream (2x H.264, 1x MJPEG, 1x i-Frame only) |
| Frame Rate | 1080P (1 - 25/30fps)720P (1 - 25/30fps) |
| When the option in field “Property” for Stream 1 is: | The available options in field “Property” for Stream 2 are: |
Bosch AUTODOME IP 5000 IR 1080P IP HD Speed Dome Kamera PDF Dosyası357.1 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
