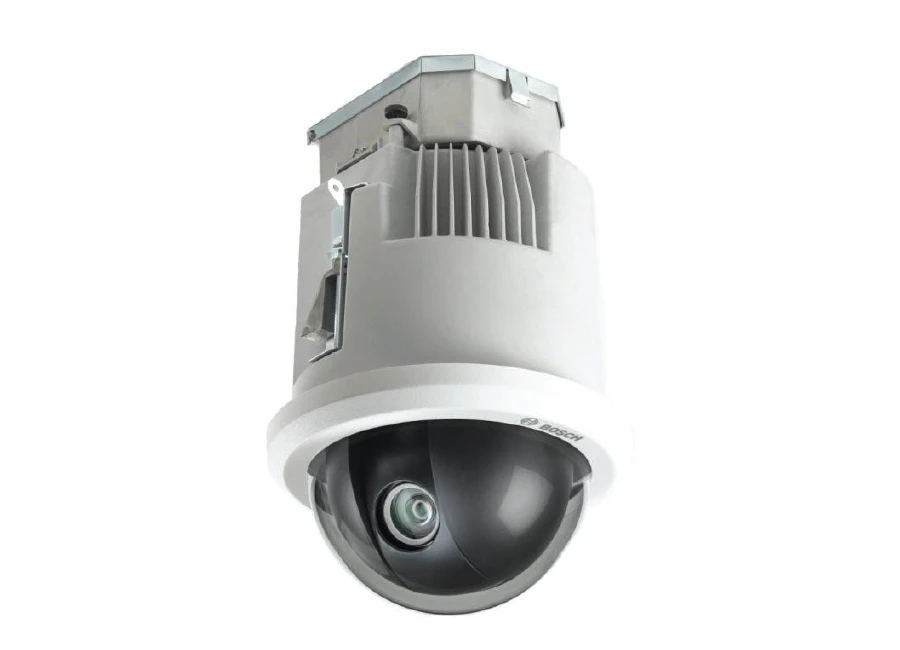

Bosch VG5 7130 CPT4 IP Speed Dome Kamera

Özellikler

High-resolution, 720p HD PTZ camera with highperformance 30x zoom lens for capturing fine details in scenes with extremely low illumination level
Intelligent Tracking and alarm rules engine with onboard Intelligent Video Analytics (IVA)
Enhanced system flexibility with dual recording options (iSCSI, SD card) and dual power source options (High Power over Ethernet (High PoE) / 24 VAC)
Fully configurable quad streaming with individually configurable streams, based on Bosch’s Common Product Platform (CPP4)
Easy and intuitive installation with multiple preconfigured user modes that allow users to select the camera configuration that is ideal for their applications

Teknik Özellikler

SKU	VG5-7130-CPT4
Manufacturer	Bosch
Features	Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	0.9 Megapixel
Lens Type	Motorized Zoom
Lens Size	30X
Mount Type	In-Ceiling
Compression Method	H.264, M-JPEG
Durability	Indoor, Weather Resistant
Voltage	24vAC, PoE
Automatic Gain Control (AGC)	Auto/Manual/Max
Electronic Shutter	1/1 sec to 1/10000 sec (22 steps)
Image Device	1/3" Exmor CMOS sensor
Image Pixels-Effective	1305 x 1049 (1.37 MP)
Minimum Scene Illumination	Day Mode (Color): Fixed shutter 1/30, High Sensitivity Mode On: 0.052 lux (30 IRE), 0.166 lux (50 IRE), Fixed shutter 1/30, High Sensitivity Mode Off: 0.26 lux (30 IRE), 0.66 lux (50 IRE), SensUp On (Maximum 1/4), High Sensitivity Mode On: 0.0082 lux (30
Operating Humidity	0% to 90% relative, noncondensing
Operating Temperature	14 to 104°F (-10 to 40°C)
Power Consumption	60 W / 69 VA (heaters on)or24 W / 44 VA(heaters off / without heater connected in power supply box for indoor applications)
Protocols	IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (v1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selftHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CH
S/N Ratio	>50 dB
Video Output	RJ 45
Weatherproof	IP66
Angle of View	2.1° to 59°
Rotation Angle	360°
Back Light Compensation	On/Off
Automatic White Balance	2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual,Sodium Lamp Auto, Sodium Lamp
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Heater & Fan	Yes
Motion Detection Tracking	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
ONVIF	Yes
Digital Zoom	Yes
