Açıklama

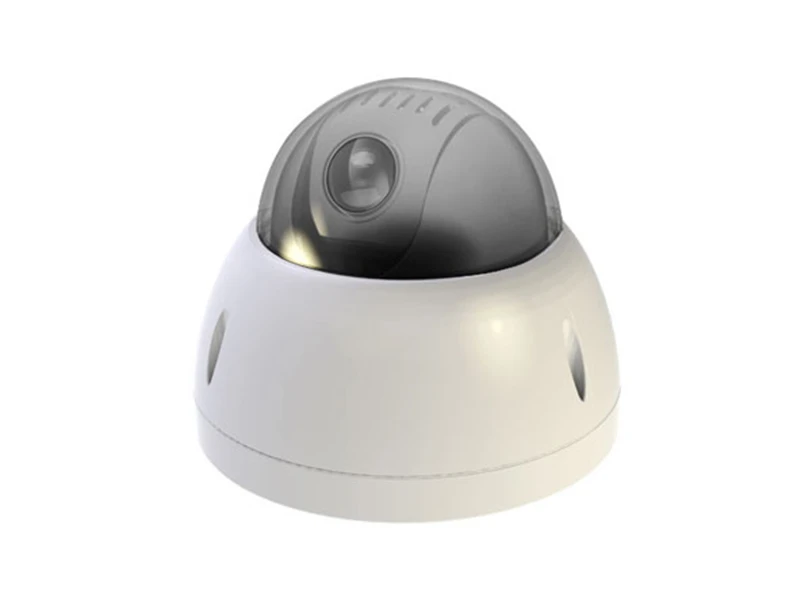

Dahua DH SD3282D GN IP HD Speed Dome Kamera

Özellikler

3.0mm – 9.0mm(3x) Optik Zoom,
H.264 & MJPEG Çift Akışlı Şifreleme,
Maks.25/30fps @ 1080p Çözünürlük,
DWDR,Gündüz/Gece(ICR),DNR(2D&3D),
Otomatik İris, Otomatik Odak,AWB,AGC,BLC,
Çoklu Ağ İzleme : Web Görüntüleyici,CMS ( DSS/PSS ) & DMSS
Maks.120o/s P&,T Hızı, 0o – 350o Pan Döndürme
255 Presets,5 Otomatik Tarama,8 tur, 5 Pattern,
2/1 Alarm Girişi / Çıkışı,
Mikro SD Hafıza,IP66,IK10 Opsiyonel,Poe

Teknik Özellikler

Camera
Image Sensor	1/3” Exmor CMOS
Effective Pixels	1944(H) x 1092(V) , 2 Megapiksel
Scanning System	Progressive
Electronic ShutterSpeed	1/1 ~ 1/30,000s
Min. Illumination	Color: 0.05Lux @ F1.2; B/W: 0.005Lux @ F1.2
S/N Ratio	More than 50dB
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D/3D
Privacy Masking	Up to 24 areas
Digital Zoom	16x
Lens
Focal Length	3.0mm ~9.0mm(3x Optical zoom)
Max Aperture	F1.2 ~ F2.1
Focus Control	Auto / Manual
Angle of View	H: 93°~ 31.7°
Close Focus Distance	30mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 350° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~120° /s; Tilt: 0.1° ~120° /s
Preset Speed	Pan: 120° /s; Tilt: 120° /s
Preset	80(SD), 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task	Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol	SD, Pelco-P/D (Auto recognition)
Video
Compression	H.264 / MJPEG
Resolution	1080p(1920x1080)/720P(1280x720)/D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate	Main Stream	1080p / 720p (1~25/30fps)
	Sub Stream	D1/CIF (1~25/30fps)
Bit Rate	H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression	G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	1
Alarm	2/1 channel In/Out
General
Power Supply	DC12V,Poe (802.3af)
Power Consumption	15W
Working Environment	-10ºC ~ 55ºC / Less than 90% RH
Ingress Protection	IP66
Dimensions	Φ160(mm) x 132 (mm)
Weight	1.33kg
