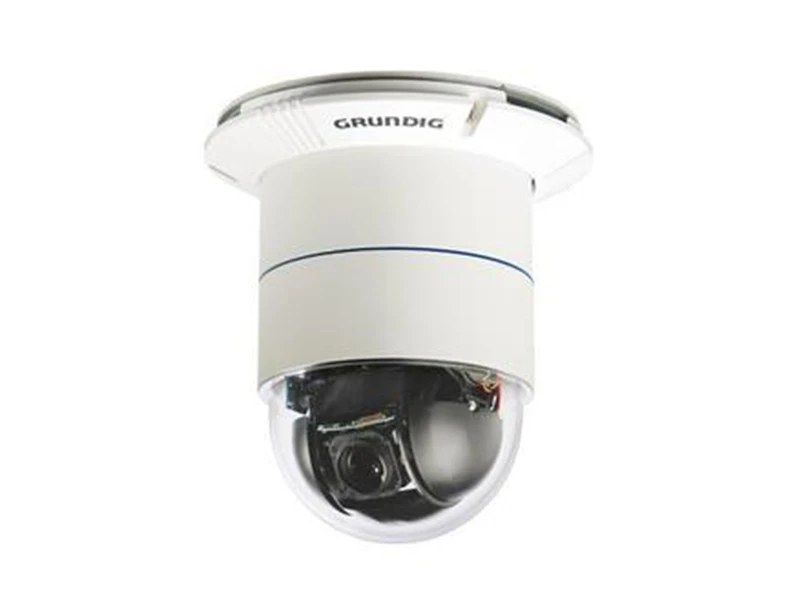

Grundig GCI C0735P IP Speed Dome Kamera
Özellikler
- Full D1, Colour/B&W speed Dome Camera (720x576)
- 12x motorized optical zoom with 12x digital zoom
- WDR function, Colour/B&W function with removable IR cut filter
- Vandal Resistant Dome (IK10)
- H.264 Main Profile compression mode (dual codec, 25 fps max)
- ONVIF protocol support
- SD/SDHC memory card slot for alarm and schedule image recording
- High Speed Pan/Tilt (400°/sec), minimum speed (1°/sec)
- Bidirectional Audio Support
Teknik Özellikler
| Image Sensor | 1/4" CCD (Sony ExView HAD) |
| Digital Signal Processor (DSP) | Sony EFFIO DSP solution |
| Col/B&W | On/Off/Auto, IR-cut filter removable (ICR) |
| Pixels - Total | 976x582 (570k) |
| Sensitivity | 0.1 lux (Colour) / 0.01 lux (B&W) |
| Zoom Ratio | x 12 |
| Focal Length | 3.8 ~ 45.6 mm |
| Viewing Angle | 5° ~ 55.4° |
| Aperture Ratio | F1.6(Wide)~ F2.7(Tele) |
| Lens Drive Type | Auto Iris |
| S/N Ratio | >50 dB |
| Resolution | 650 (H) lines |
| BLC | On/Off + WDR |
| White Balance | Auto / Manual |
| Shutter Speed | 1 sec to 1/10,000 sec |
| Camera ID | 20 character |
| Number of Privacy Zones | 16 |
| Pan Speed | Manual: 1°/s ~ 80°/s, Preset: 400°/s (max.) |
| Tilt Speed | Manual: 1°/s ~ 80°/s, Preset: 400°/s (max.) |
| Range Panning | 360° endless |
| Range Tilting | -10° ~ 190° |
| Number of Preset | 256 |
| Number of Pattern | 8 |
| Digital Zoom | Off/1 ~ 12x |
| OSD | Yes |
| Video Outputs | 1Vpp, BNC |
| Alarm Inputs | 4 |
| Alarm Outputs | 1 |
| Web Browser | MS Internet Explorer 6.0 (or higher) |
| Video Compression | Dual stream: H.264+H.264, H.264+MJPEG |
| Video Resolution | D1 (720x576), CIF (352x288) |
| Network Protocol | IPv4, IPv6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, 802.1X and SNMP |
| SD memory | Micro SD/SDHC |
| Alarm Event | Alarm Input, Motion Detection or Schedule: Image transfer or alarm message by FTP, |
| Image transfer or alarm message by E-mail, recording on SD-card and enable alarm output | |
| Audio Compression | G.726 ADPCM, G.711 |
| Firmware Upgrade | Firmware upgrade by Web Browser |
| Regulation | CE, FCC, RoHS Compliant |
| Operating Temperature | °C ~ +40°C |
| Supply Voltage | 24 VAC |
| Power Consumption | 18 W |
| Weight | 1.2 kg |
| Dimensions w*h*d | Ø 131 X 200 mm |
Teknik Kısa
Çözünürlük : D1
Depolama : Var
