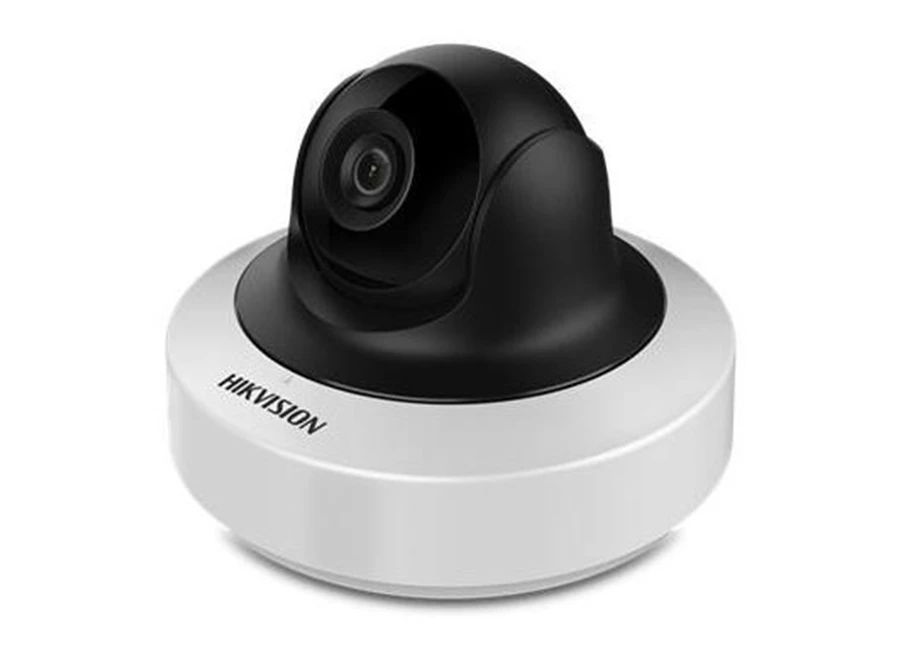

Hikvision DS 2CD2F42FWD IW IP Mini PT Kamera
Özellikler
- Up to 4 megapixel (2688x1520) high resolution
- Full HD1080p video
- Dual video streams
- 120dB Wide Dynamic Range
- Pan & tilt rotation
- Support on-board storage, up to 128GB
- DC12V & PoE
- Support H.264+
- Up to 10m IR range
- Mobile monitoring via EZVIZ or iVMS-4500
- l-S: Audio/Alarm IO
- -W: Built-in Wi-Fi
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Aydınlatma | 0.01Lux @ F1.2, AGC ON , 0.028Lux @ F2.0, AGC ON, 0 Lux with IR |
| Objektif Hızı | 1/3 s to 1/10,000 s |
| Lens | 2.8mm, 4mm, 6mm @ F2.0 |
| Lens Kurulumu | M12 |
| Ayarlanan Aralık | Motorized Pan: -90° ~ 90°, Tilt: 0° ~ 75° |
| Day& Night | IR cut filter with auto switch |
| Geniş Dinamik Aralık | 120 dB |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Sıkıştırma | H.264/MJPEG/H.264+ |
| H.264 Türü | Main Profile |
| Video Bit Hızı | 32Kbps~8Mbps |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 2688 × 1520 |
| Çerçeve Hızı | 50Hz: 20fps (2688 x 1520), 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) |
| 60Hz: 20fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) | |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Support |
| Network | |
| Ağ Depolama | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protokoller | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering, Anonymous access | |
Sistem Uyumluluğu | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | |
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| İletişim Arayüzü | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | 1x alarm I/O *only for –S models |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| Wi-Fi Şartnamesi (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frekans Aralığı | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Modülasyon Modu | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Güvenlik | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Güç İletim | 11b: 17±1.5dBm @ 11Mbps |
| 11g: 14±1.5dBm @ 54Mbps | |
| 11n: 12.5±1.5dBm | |
| Alıcı Hassasiyeti | 11b: -90dBm @ 11Mbps (Typical) |
| 11g: -75dBm @ 54Mpbs (Typical) | |
| 11n: -74dBm (Typical) | |
| İletim Hızı | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil | 50m(depend on environment) |
| General | |
| Çalışma Sıcaklığı | -10 °C ~ 40 °C (14 °F ~ 104 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi | Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation) |
| IR Aralık | 10 meters |
| Boyutlar | Φ119.93 × 87.08mm |
| Ağırlık | 500g (1.1lbs) |
| NOT | "-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |
| the 802.1X protocol. | |
Hikvision DS 2CD2F42FWD IW IP Mini PT Kamera Pdf Dosyası816.56 KB
Teknik Kısa
Çözünürlük : 4MP
Irled : Var
