Açıklama

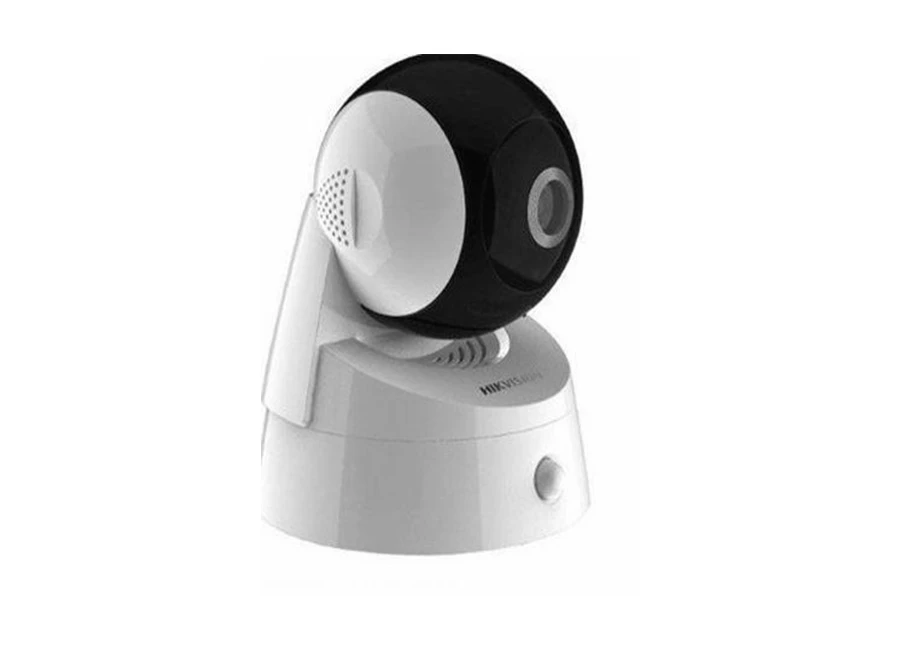

Hikvision DS 2CD2Q10FD I IP PT Kamera
Özellikler
- 1/4” Progressive Scan CMOS
- Up to 1.0 megapixel resolution
- Support motorized Pan & Tilt
- Digital WDR
- 3D DNR
- IR range approx. 10 meters
- Support Wi-Fi, support WPS configuration with one touch (-W)
- Two-way audio
- Built-in microphone and speaker
- Support 128G on-board storage
- 5V DC±10%
Teknik Özellikler
| Camera | |
| Image Sensor | 1/4" progressive scan CMOS |
| Minimum Aydınlatma | 0.01Lux @(F1.2,AGC ON) , 0.028Lux @(F2.0,AGC ON) ,0 Lux with IR |
| Objektif Hızı | 1/3 s ~ 1/100,000 s |
| Lens | 4mm@ F2.0, Angle of view: 52.4° (2.8mm, 6mm optioanl) |
| Lens Mount | M12 |
| Ayarlanan Aralık | Pan: 0° - 355°, Tilt: -20° - 90° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| H.264 Türü | Baseline Profile / Main Profile |
| Video bit rate | 32Kbps~8Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Ses Bit Hızı | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | |
| Max. Image Resolution | 1280 × 720 |
| Çerçeve Hızı | 50Hz: 25fps(1280 × 720, 704 × 576, 640 × 480) |
| 60Hz: 30fps (1280 × 720, 704 × 576, 640 × 480) | |
| Görüntü İyileştirme | BLC/3D DNR/ROI |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Gündüz / Gece Anahtarı | Auto/Schedule/Triggered by Alarm In |
| Network | |
| Network Storage | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller | Intrusion Detection, Line Crossing detection, Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| General Function | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Wi-Fi Specification (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Modulation Mode | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Güç İletim | 11b: 17±1.5dBm @ 11Mbps |
| 11g: 14±1.5dBm @ 54Mbps | |
| 11n: 12.5±1.5dBm | |
| Alıcı Hassasiyeti | 11b: -90dBm @ 11Mbps (Typical) |
| 11g: -75dBm @ 54Mpbs (Typical) | |
| 11n: -74dBm (Typical) | |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil: | 50m(depend on environment) |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 5 V DC ± 10% |
| GÜç Tüketimi | Max. 7 W |
| IR Range | 10 meters |
| PIR | Angle: 80°, Range: 10m |
| Boyutlar | 100.8×124 mm (3.97” × 4.88” ) |
| Ağırlık | 300 g (0.66 lbs) |
| NOT | "-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |
| the 802.1X protocol. | |
Teknik Kısa
Çözünürlük : 1MP (720P)
