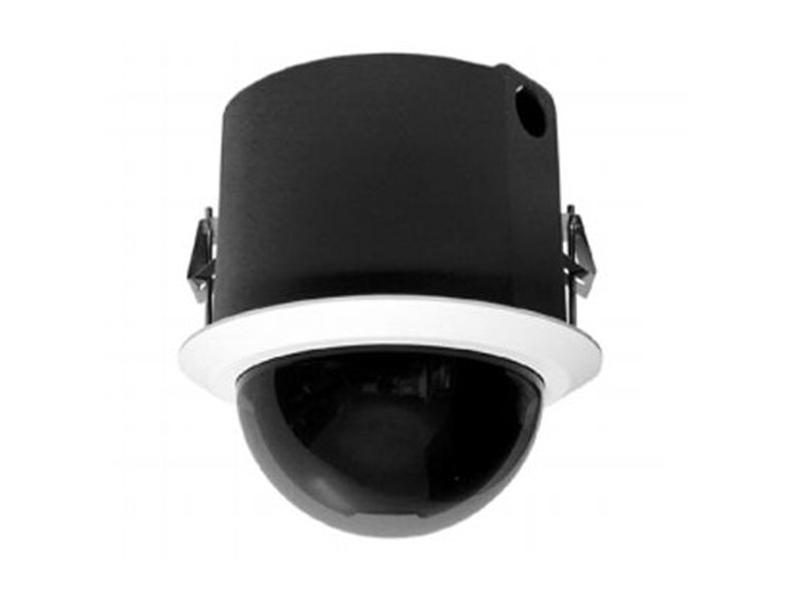

Pelco S6230 FW1 IP PTZ Speed Dome Kamera
Özellikler
- SureVision 3.0 Technology, Including:
– 130 dB Wide Dynamic Range (WDR)
– Advanced Low Light Down to 0.03 LUX on Select Models
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping - Up to Full HD 1080p
- Up to 60 Images per Second (ips)
- Power over Ethernet (HPoE and PoE+), 24 VAC, 24 VDC
- Three Automatic Defog Options
- Electronic Image Stabilization (EIS)
- Built-in Analytics Suite
- Vandal Resistant IK10 Clear Bubble
- Up to 32 GB Edge Storage with Micro SD Card
- Compatible with Pelco and Third-Party Video Systems
- ONVIF Profile S and Profile G Conformant
- Single Back Box for Suspended or Hard Ceiling Applications with Light Gray Trim Ring, RAL9002
- Requires 13.35 cm (5.25 in.) Space Above Ceiling and 8.25 cm (3.25 in.) Below
- Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 4.45 cm (1.75 in.)
- Aluminum Construction, IK10 Rated Nylon Bubble
- Suitable for Use in Environmental Air Handling Spaces
- ° to 50°C (32° to 122°F) Sustained Operating Temperature
Teknik Özellikler
SKU | S6230-FW1 |
Manufacturer | Pelco |
Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | Non Infrared |
Resolution | 2 Megapixel |
Lens Type | Motorized Zoom |
Lens Size | 30X |
Mount Type | In-Ceiling |
Compression Method | H.264, M-JPEG |
Durability | Indoor, Vandal Resistant |
Voltage | 24vDC, 24vAC, PoE |
Electronic Shutter | 1/1 ~ 1/10,000 sec |
Image Device | 1/2.8-inch Type Exmor CMOS Sensor |
Minimum Scene Illumination | Color (33 ms): 0.20 lux, Color (250 ms): 0.025 lux, Mono (33 ms): 0.06 lux, Mono (250 ms): 0.008 lux |
Operating Humidity | 10 to 90% RH (noncondensing) |
Operating Temperature | ° to 50°C (32° to 122°F) |
Power Consumption | 24vAC : 24 VA (without heater and blower); 81 VA (with heater and blower) , 24vDC : 1 VA (without heater and blower); 3 VA (with heater and blower) |
Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6*, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) |
S/N Ratio | >50dB |
Angle of View | 59.5° (wide) ~ 2.1° (tele) |
Auto Gain Control | Yes |
Day/Night | Yes |
Digital Noise Reduction | Yes |
Automatic White Balance | Yes |
Back Light Compensation | Yes |
Motion Detection Tracking | Yes |
Wide Dynamic Range | Yes |
ONVIF | Yes |
Teknik Kısa
Çözünürlük : 2MP (1080P)
