Açıklama

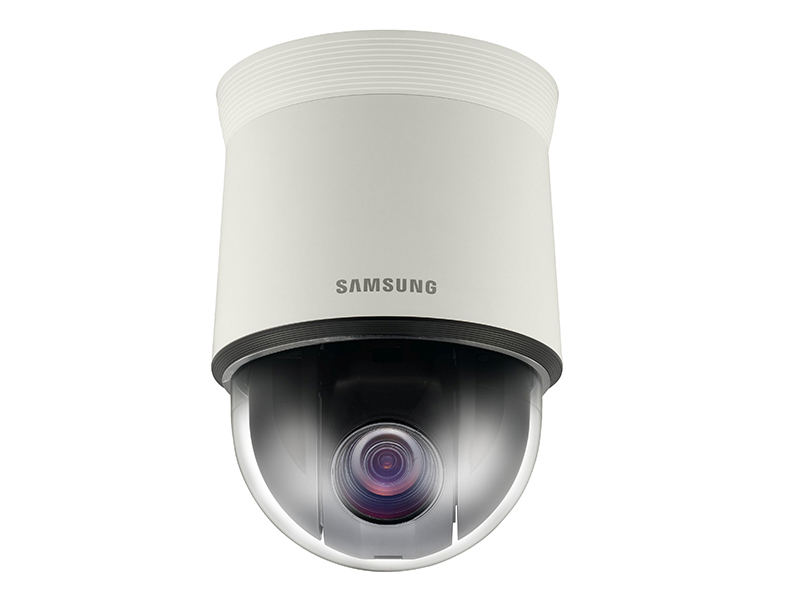

Samsung SNP 5321 IP HD Speed Dome Kamera
Özellikler
- Max. 1.3M (1280 x 1024) resolution
- 16 : 9 HD (720p) resolution support
- 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom
- 0.05Lux@F1.6 (Color), 0.005Lux @ F1.6 (B/W)
- H.264, MJPEG dual codec, Multiple streaming
- Day & Night (ICR), WDR (120dB), Intelligent video analytics
- PoE+, SD/SDHC/SDXC memory slot, Bi-directional audio support
- IP66 / IK10 (SNP-5321H), IK10 (SNP-5321 + SHP-3701H only)
Teknik Özellikler
| Video Input |
| Audio Support : Yes |
| Audio Support Features : Two-way audio capability |
| Camera Mechanical Design : Pan / tilt / zoom |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Control Interface : RS-485 |
| Day & Night Functionality : Yes |
| Digital Video Capture Resolution : 1024 x 768 , 1280 x 1024 , 1280 x 720 , 1280 x 960 , 320 x 180 , 320 x 240 , 640 x 360 , 640 x 480 , 720 x 576 , 800 x 450 , 800 x 600 |
| Digital Video Format : AVC , H.264 , MJPEG , MPEG-4 |
| Digital Zoom : 16 |
| Features : Adjustable gain control , Audio Detection , Automatic Tracing White (ATW) , Backlight compensation , Camera Tampering Detection , Constant Bitrate (CBR) , Defog , Digital Image Stabilization (DIS) , Edge Storage , Face detection , Image flip , Image mirror , Intelligent Video Analysis (IVA) , Motion Detection Technology , Multicast Streaming , ONVIF support , Privacy Mask Function , Progressive scanning , Samsung Super Dynamic Range (SSDR) , Samsung Super Noise Reduction (SSNRIII) , Tamper-detection , Variable Bitrate (VBR) , Video analytics , Wide Dynamic Range (WDR) , WiseNet III |
| Frame Rate : 60 frames per second |
| Max Digital Video Resolution : 1280 x 1024 |
| Max Panning Speed (degree/sec) : 700 |
| Max Tilting Speed (degree/sec) : 700 |
| Optical Zoom : 32 |
| Panning Range (degree) : 360 |
| Shutter Speed (Max) : 1/12000 sec |
| Shutter Speed (Min) : 2 sec |
| Supported Video Signals : Composite video |
| Tilting Range (degree) : -15 to +195 |
| Video Format : NTSC |
| Video Modes : 720p |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Pixels Effective (H) : 1305 |
| Sensor Pixels Effective (V) : 1049 |
| Sensor Pixels Total (H) : 1312 |
| Sensor Pixels Total (V) : 1069 |
| Sensor Size : 1/3" |
| Sensor Size (metric) : 8.5 mm ( 1/3" ) |
| Total Pixels : 1,400,000 pixels |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , DDNS , DHCP , DNS , FTP , HTTP , HTTP over SSL , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , PIM-SM , PPPoE , QOS , RTCP , RTP , RTSP , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SSL , SSM , TCP/IP , UDP/IP , UPnP |
| System Requirements |
| Min Operating System : Apple MacOS X 10.7 Lion , Apple MacOS X 10.8 , Microsoft Windows 7 , Microsoft Windows Vista , Microsoft Windows XP , Windows 8 |
| Battery |
| Form Factor : None |
| Environmental Parameters |
| Humidity Range Operating : 0 - 90% |
| Max Operating Temperature : 131 °F |
| Min Operating Temperature : -58 °F |
| Header |
| Brand : Samsung |
| Compatibility : Mac , PC |
| Manufacturer : Samsung CCTV |
| Model : SNP-5321HN |
| Packaged Quantity : 1 |
| Product Line : Samsung Techwin |
| Lens System |
| Angular Field of View (H, max, degree) : 56.8 |
| Angular Field of View (H, min, degree) : 1.99 |
| Angular Field of View (V, max, degree) : 46.3 |
| Angular Field of View (V, min, degree) : 1.6 |
| Auto Iris Control : DC |
| Focal Length Control : Motorized zoom |
| Focus Adjustment : Automatic , Manual |
| Lens Aperture : F/1.6-4.4 |
| Lens Iris : Auto iris |
| Max Focal Length : 142.6 mm |
| Min Focal Length : 4.44 mm |
| Min Focus Distance : 5 ft |
| Miscellaneous |
| Color : Ivory |
| Color Category : White |
| Compliant Standards : cULus , FCC , IK10 , IP66 |
| Power Device |
| Power Consumption Operational : 65 Watt |
| Software |
| Type : Smart Viewer |
| Video Capture |
| Frame Rate : 60 fps |
| Image Resolution : 1280 x 1024 |
| Image Resolution : 1280 x 960 |
| Image Resolution : 1280 x 720 |
| Image Resolution : 1024 x 768 |
| Image Resolution : 800 x 600 |
| Image Resolution : 800 x 450 |
| Image Resolution : 720 x 576 |
| Image Resolution : 640 x 480 |
| Image Resolution : 640 x 360 |
| Image Resolution : 320 x 240 |
| Image Resolution : 320 x 180 |
| Digital Camera |
| Supported Flash Memory : SD Memory Card , SDHC Memory Card , SDXC Memory Card |
| Dimensions & Weight |
| Depth : 8.8 in |
| Height : 11.6 in |
| Weight : 7.05 lbs |
| Width : 8.8 in |
| CCTV |
| Equipment Category : CCTV cameras |
| CCTV Camera |
| Alarm Inputs Qty : 4 |
| Alarm Outputs Qty : 2 |
| Outdoor : Yes |
| Protection : Vandal-proof |
| CCTV Camera Sensitivity |
| F-number : F1.6 |
| Gain Control : Shutter 1/30 sec / AGC High |
| IRE :50 |
| Minimum Illumination (lux) : 0.1 |
| Mode : Color |
| Gain Control : Shutter 2 sec |
| Minimum Illumination (lux) : 0.005 |
| Minimum Illumination (lux) : 0.01 |
| Mode : B&W |
| Minimum Illumination (lux) : 0.0005 |
| Gain Control : Shutter 1/30 sec |
| IRE : 30 |
| Minimum Illumination (lux) : 0.05 |
| Minimum Illumination (lux) : 0.0025 |
| Minimum Illumination (lux) : 0.00025 |
| Interfaces |
| Type : Serial RS-485 |
| Type : Audio line-in/microphone |
| Connector : 3.5 mm mono jack |
| Type : Audio line out |
| Connector : RJ-45 |
| Type : LAN/power |
| Power |
| Low Voltage Power : AC 24 V / PoE Plus |
Samsung SNP 5321 IP HD Speed Dome Kamera PDF Dosyası517.42 KB
Teknik Kısa
Çözünürlük : 1.3MP
Ses : Var
