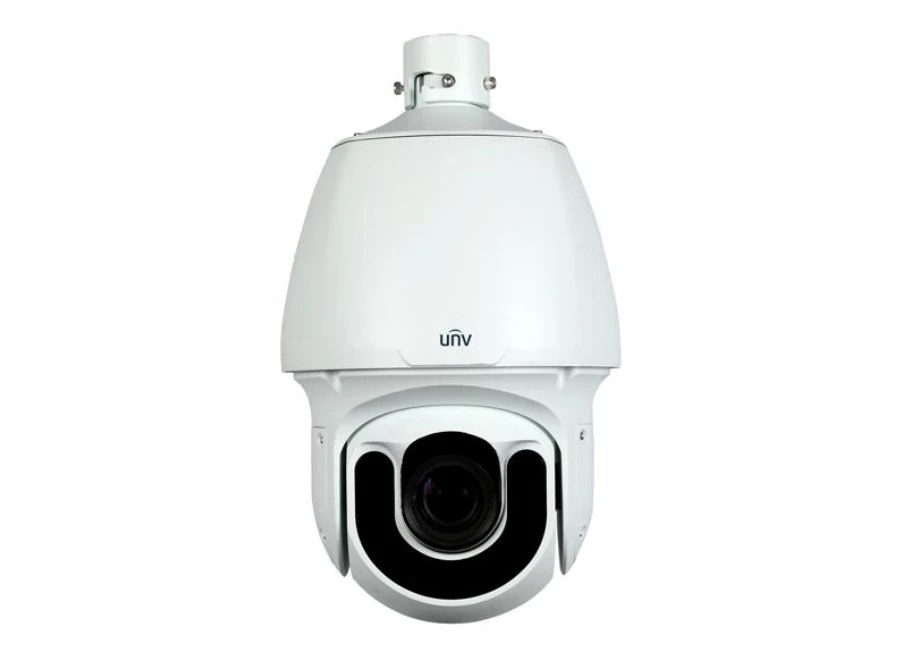

Uniview IPC6242SR X22 IP HD Speed Dome Kamera
Özellikler
- Accurate and fast focusing
- The third-generation infrared technology
- Smart IR, up to 150 m (492 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- H.264 High Profile
- Triple streams
- Customized OSD
- ONVIF Conformance
- Special structure and window design to battle bad weather (especially in dusty weather)
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
Teknik Özellikler
| Camera | |
| Sensor | 1/2.8", 2 megapixel, progressive scan, CMOS |
| Lens | 4.7 ~ 103 mm (22x optical zoom) |
| Angle of View (H) | 61.9° (wide) ~ 3.4° (tele) |
| Iris | Auto/Manual; F1.6 ~ F3.2 |
| Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/8000 s |
| Minimum Illumination | Colour: 0.03 lux (F1.6, 50IRE) |
| B/W: 0.01 lux (F1.6, 50IRE) | |
| S/N | >52dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.264,MJPEG |
| Frame Rate | 1080P (1920×1080):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.25 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Digital Zoom | Supported |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | SD, up to 64 GB |
| Network | |
| Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP |
| Compatible Integration | ONVIF, IMOS,API |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Preset | 255 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol |
| Note: The total number of patrols and patterns is 16. | |
| Pattern | Up to 16 patterns, with the total recording time not less 15 minutes per pattern |
| Interface | |
| Audio I/O | 3.5 mm audio interface |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2.Oca |
| Serial Port | 1 RS485 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC, 24 V DC |
| Power consumption: 8 ~ 52.5 W (IR:34W, moter:7.5W, heater: Max. 14 W, fan: 3W) | |
| Dimensions (Ø x H) | Ø227 x 359.4 mm (Ø8.9” x 14.2”) |
| Weight | 5.4 kg (11.9 lb) |
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
Uniview IPC6242SR X22 IP HD Speed Dome Kamera PDF Dosyası523.04 KB
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
