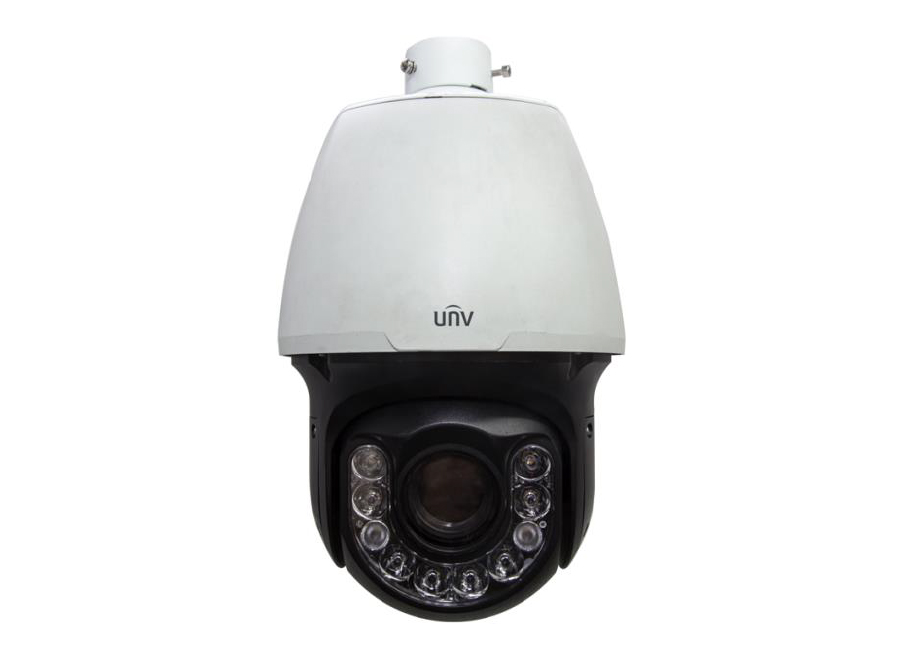

Uniview IPC6252SFW X22U IP HD Speed Dome Kamera
Özellikler
- Starlight illumination
- Accurate and fast focusing
- Full spectrumlight with both white and infrared LED design
- Smart IR, up to 200 m (656 ft) IR distance
- Up to 120dB WDR(Wide Dynamic Range)
- While Light , up to 30m(98ft)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 1080P@60fps Supported
- ONVIF Conformance
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
Teknik Özellikler
| Camera | |
| Sensor | 1/1.9", 2megapixel, progressive scan, CMOS |
| Lens | 6.5 ~ 143 mm (22x optical zoom) |
| Angle of View (H) | 70° (wide) ~ 3.76° (tele) |
| Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/100000 s |
| Minimum Illumination | Colour: 0.001 lux (F1.5, AGC ON) |
| 0 Lux with IR on | |
| Iris | Auto/Manual; F1.5 ~ F3.4 |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | 120 dB |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.265, H.264,MJPEG |
| Frame Rate | 1080P (1920×1080):Max.60 fps; 1080P (1920×1080):Max.15 fps;D1 (720×576):Max.8 fps |
| 1080P (1920×1080):Max.60 fps;720P (1280×720):Max.30 fps;D1 (720×576):Max.15 fps | |
| Video Streaming | Triple |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Digital Zoom | Supported |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection, Auto tracking |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Preset | 256 |
| Patrol | Preset patrol, route patrol, recorded patrol |
| Home Position | Supported |
| Drag-to-Zoom | Supported |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2.Oca |
| Serial Port | 1 RS485 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC (Default), 24 V DC |
| Power consumption:11 ~47W | |
| Dimensions(ØxH) | Ø227x359.4 mm (Ø8.9” x 14.2”) |
| Weight | 5.4 kg (11.9lb) |
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
Uniview IPC6252SFW X22U IP HD Speed Dome Kamera Pdf Dosyası399 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
