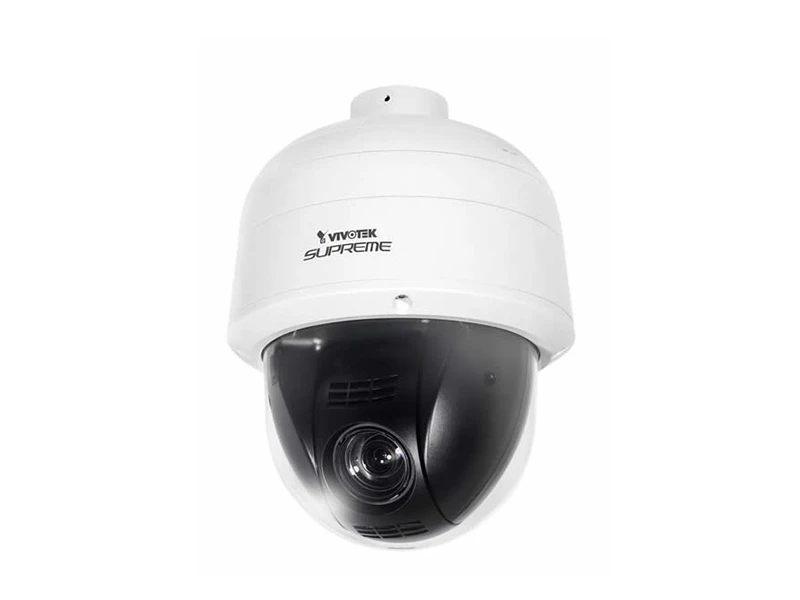

Vivotek SD8161 IP HD Speed Dome Kamera
Özellikler
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920 x 1080
- 18x Zoom Lens
- Real-time H.264 and MJPEG Compression
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Built-in 802.3at Compliant PoE Plus
- 3D Privacy Masks for Additional Protection
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/3" Progressive CMOS |
| Maximum Resolution | 1920x1080 |
| Lens Type | 18x Optical Zoom, Auto Focus |
| Focal Length | f = 4.7 ~ 84 mm |
| Aperture | F1.6 ~ F2.8 |
| Auto-iris | DC-iris |
| Field of View | 4° ~ 61° (Horizontal) |
| 2° ~ 36° (Vertical) | |
| 5° ~ 70° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.72 Lux @ F1.6 (Color) |
| 0.001 Lux @ F1.6 (B/W) | |
| Pan Speed | 0.05° ~ 450° / sec |
| Pan Range | 360 endless |
| Tilt Speed | 0.05° ~ 450° / sec |
| Tilt Range | 220° (-110° ~ +110°) |
| Preset Locations | 256 preset locations, 40 presets per tour |
| Pan/tilt/zoom Functionalities | 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Auto pan mode | |
| Auto patrol mode | |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 In both compression modes |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | Above 67dB |
| Dynamic Range | 60dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Zoom enhancement for better image quality under limited bandwidth | |
| Image Settings | Adjustable image size, quality and bit rate |
| Time stamp, text overlay, flip & mirror | |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24) | |
| Scheduled profile settings, 3D Noise Reduction | |
| Audio | |
| Audio Capability | Audio input/output (full duplex) |
| Compression | AAC, G.711, G.726 |
| Interface | External microphone input |
| External line output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| AC 24V power input | |
| DC 12V power input | |
| Digital input*4 | |
| Digital output*2 | |
| RS-485 for PTZ control (PelcoD protocol, adjustable baud rate 2400~19200) | |
| LED Indicator | System power and status indicator |
| Power Input | PoE plus (IEEE 802.3at compliant) |
| DC 12V | |
| AC 24V | |
| Power Consumption | PoE Plus: Max. 25.5W |
| AC24V/DC12V: Max. 30W | |
| Dimensions | Ø: 205 mm x 226 mm |
| Weight | Net: 2330 g |
| Safety Certifications | CE, FCC Class B, VCCI, C-tick, UL |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
| Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) | |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) |
| Internet Explorer 7/8/9/10 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software |
| Others | Ceiling mount bracket, screws, terminal blocks, quick installation guide, warranty card, alignment sticker, T25 stardriver, software CD |
Video
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
