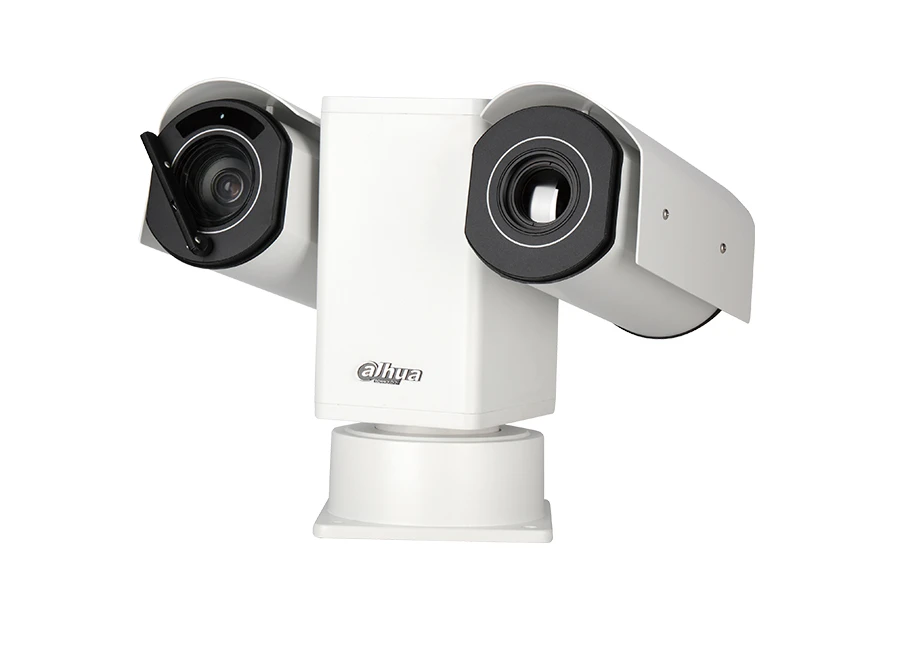

Dahua TPC PT8420M TB IP Termal Mobil Hybrid Pan&Tilt Kamera
Özellikler
- 400x300 VOx uncooled thermal sensor technology
- Athermalized Lens(thermal), Focus-free
- 1/1.9” 2Megapixel progressive scan Sony CMOS
- Powerful 30x optical zoom
- Support temperature measurement
- Support fire detection & alarm
- Max 90°/s pan speed, 360° endless pan rotation
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- 2/2 alarm in/out
- Micro SD memory, IP66
Teknik Özellikler
| Thermal Camera | ||
| Image Sensor | Uncooled VOx Microbolometer | |
| Effective Pixels | 400(H)x300(V) | |
| Pixel Size | 17um | |
| Thermal Sensitivity(NETD) | <40mK@f/1.0 | |
| Spectral Range | 7~14um | |
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR | |
| Color Palettes | 14(Whitehot/Blackhot/Ironrow/Icefire/ | |
| Fusion/Rainbow/Globow/Iconbow1/ | ||
| Iconbow2 .etc) | ||
| Thermal Lens | ||
| Lens Type | Fixed | |
| Focus Control | Athermalized, Focus-free | |
| Focal Length | 19mm | 25mm |
| Angle of View | H:20.4°, V:15.3° | H:15.5°, V:11.6° |
| Effective Distance① | D②:640m | D:1000m |
| Man(1.8m*0.5m) | R③: 160m | R:250m |
| I ④: 80m | I : 125m | |
| Effective Distance | D:2000m | D:3000m |
| Vehicle(2.3m*2.3m) | R:500m | R: 720m |
| I : 250m | I : 360m | |
| Visible Camera | ||
| Image Sensor | 1/1.9" Sony CMOS | |
| Effective Pixels | 1944(H)x1092(V) | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | 0.001Lux@F1.5(Color), 0.0001Lux@F1.5(B/W) | |
| S/N Ratio | More than 55dB | |
| IR Distance | 150m (492ft) | |
| IR On/Off Control | Auto / Manual | |
| IR LEDs | 4 | |
| Visible Lens | ||
| Focal Length | 6 ~ 180mm | |
| Max Aperture | F1.5 ~ F4.3 | |
| Angle of View | H: 59° ~ 2.4° | |
| Optical Zoom | 30x | |
| Focus Control | Auto / Manual | |
| Close Focus Distance | 100mm~ 1000mm (0.33ft~3.28ft) | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless;Tilt: -90° ~ 90° | |
| Manual Control Speed | Pan: 0.1° ~60° /s; Tilt: 0.1° ~45° /s | |
| Preset Speed | Pan: 0.1° ~90° /s ;Tilt: 0.1° ~60° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power Up Action | Auto restore to previous PTZ and lens status | |
| after power failure | ||
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Frame Rate | Main Stream: | |
| Thermal: 1280x1024(default) / 720P @1~25/30fps | ||
| Visible: 1080P(default) /720P @1~25/30fps | ||
| Sub Stream: | ||
| Thermal: 640x512(default) / 320x256 @1~25/30fps | ||
| Visible: CIF(default) / D1 @1~25/30fps | ||
| Bit Rate Control | CBR / VBR | |
| Bit Rate | H.264: 640 ~8192Kbps | |
| Day/Night | Auto(ICR) / Color / B/W | |
| BLC Mode | BLC / HLC / WDR | |
| White Balance | Auto / ATW / Indoor / Outdoor / Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detetion | Off / On (4 zone, Rectangle) | |
| Region of Interest | Off / On (4 zone) | |
| Electronic Image Stabilization (EIS) | NA | |
| Defog | Off / On | |
| Digital Zoom | 4x(19 levels) | |
| Flip | 180° | |
| Mirror | Off / On | |
| Privacy Masking | Off / On (4 area, Rectangle) | |
| Temperature Measurement | ||
| Measurement Range | Low Temperature: -20°C ~+150°C | |
| High Temperature: 0°C ~+550°C | ||
| Measurement Accuracy | Max (±2°C, ±2%)/Operating Temperature(-10°C~50°C) | |
| Measurement Mode | Spot / Line / Area | |
| Measurement Preset | Spot: 12 | |
| Line: 12 | ||
| Area: 12 | ||
| Support 12 rules per preset simultaneously | ||
| Audio | ||
| Compression | G.711A / G.711Mu / AAC | |
| Intelligence | ||
| IVS | Tripwire, Intrusion, Object Abandoned/Missing | |
| Advanced Intelligent Functions | Fire detection & alarm | |
| Tracking Trigger Mode | NA | |
| Tracking Trigger Event | NA | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Interoperability | ONVIF Profile S&G, PSIA, CGI | |
| Streaming Method | Unicast / Multicast | |
| Max. User Access | 10 Users / 20 Users | |
| Edge Storage | Micro SD (256GB) | |
| Memory status display (Normal / Error / Active / Formatting / Lock), | ||
| NAS (Network Attached Storage), Local PC for instant recording | ||
| Web Viewer | ||
| Management Software | Smart PSS, DSS | |
| Smart Phone | Android, Ios | |
| Certifications | ||
| Certification | CE (EN 60950:2000) FCC (FCC Part 15 SubpartB ) | |
| Interface | ||
| Video Interface | 1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional) | |
| Audio Interface | 1/1 In/Out | |
| RS485 | Support | |
| Alarm | 2/2 In/Out | |
| Electrical | ||
| Power Supply | 9 ~ 36V DC | |
| Power Consumption | 32W, Max. 50W (Heater, LEDs on) | |
| Environmental | ||
| Operating Condition | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | |
| * Start up should be done at above -40°C (-40°F) | ||
| Strorage Conditions | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH | |
| Ingress Protection | IP66 | |
| Construction | ||
| Casing | Metal | |
| Dimensions | 341 mm × 262mm× 275mm (13.42" x 10.31" x 10.82")(With bracket) | |
| Net Weight | 7.5Kg (16.53 lb) | |
| Gross Weight | 11Kg (24.25 lb) | |
Dahua TPC PT8420M TB IP Termal Mobil Hybrid Pan&Tilt Kamera Pdf Dosyası439.16 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Ses : Var
