| Manufacturer | FLIR Systems |
| Model code | FC-309 ID - 35 MM, PAL, 8.3HZ |
| Series | FC-ID Series |
| Digital (DSP) | Yes |
| Specialist Type | Thermal |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications | Voltage: 5 V DC |
| | Power Consumption: 5.5 W |
| Focal Length mm | 35 |
| Signal Mode | PAL |
| Y/ C (Video Output) | 1Vp-p (PAL or NTSC), 1 x BNC 75Ω |
| Compression Type | MJPEG, MPEG4 |
| Network Properties | Network Protocols: IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTCP, TCP, UDP, ICMP, IGMP, DHCP, ARP, FTP, RTP/RTSP, Unicast/ Multicast, TCP/IP, HTTP, IEEE 802.1X |
| Physical Specifications | Weight g: 1,800 |
| Dimensions mm: 282 x 129 x 115 |
| Environmental Specifications | Protection: IP66, IP67 |
| Operating Temperature oC: -50 ~ 70 C (-58 ~ 158 F) |
| Operating Humidity %: 0 ~ 95 |

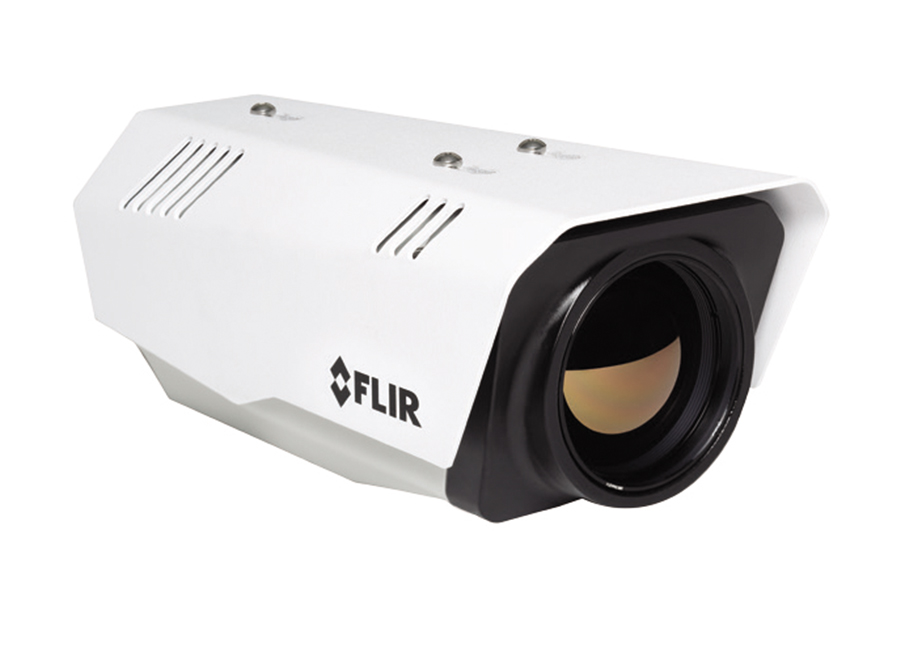

| Additional info | The Elara™ FC-Series ID is one of FLIR’s premium thermal security cameras for perimeter protection. The Elara FC-Series ID includes onboard video analytics capable of classifying human or vehicular intrusions, resulting in fewer false alarms. The Elara FC-Series ID also offers a wide range of high-performance lenses and multiple resolutions, giving greater flexibility in tailoring security systems to specific site conditions. |
