Açıklama

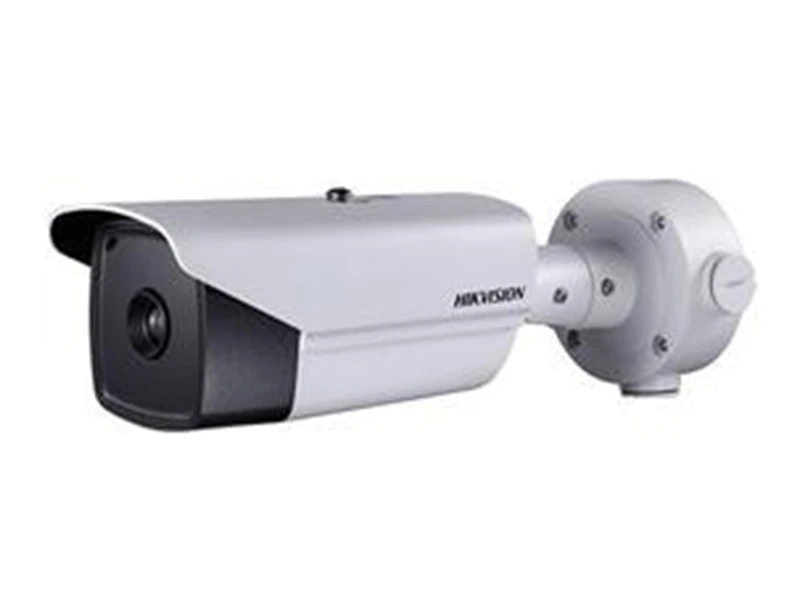

Haikon DS 2TD2136 15 IP Bullet Termal Kamera
Özellikler
- 384 x 288 Resolution
- Vanadium Oxide Uncooled FPA
- 15mm Lens Options
- NETD <50 mk="" li="">
- Adaptive AGC, 3D DNR
- Dynamic Detail Enhancement
- Smart Features
- Line Crossing, Intrusion, Region Entrance/Exit
- Temperature Exception
- Advanced Fire Detection
- 14 Pseudo Colors Adjustable
- Includes Conduit Base
- IP66
- POE+ (802.3at), 24 VAC / 12 VDC, 18 W
Teknik Özellikler
| IR Modul | |
| Image Sensor: | Vanadium oxide uncooled focal plane arrays |
| Maximum Resolution: | 384 × 288 |
| Response Waveband: | 8 μm to 14 μm |
| NetD: | <50 mk="" 25="" c="" f="" td=""> |
| Lens (Focal Length): | 15 mm |
| Mrad: | 15 mm: 1.13 |
| Field of View (H x V): | 15 mm: 39° × 32° |
| F Number: | 1.0 |
| Main Stream: | 50 fps (384 × 288) |
| Sub Stream: | 50 fps (384 × 288) |
| Third Stream: | 50 fps (384 × 288) |
| Video Compression: | H.264 / MJPEG / MPEG4, H.264+ encoding with baseline / main / high profile |
| Audio Compression: | G .711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM |
| Simultaneous Live Views: | Up to 20 |
| User/Host Levels: | Up to 32 users, 3 levels: administrator, operator, user |
| Minimum Focusing Distance: | 15 mm: 2.5 m |
| Integration | |
| Alarm Inputs: | 2-ch inputs (0 to 5 VDC) |
| Alarm Outputs: | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action: | SD recording / relay output / smart capture / FTP upload / e-mail linkage |
| Audio Input: | 1 3.5 mm microphone in / line in interface. Line input: 2-2.4 V[p-p], output impedance:1 K Ω ± 10% |
| Audio Output: | Line level, impedance: 600 Ω |
| Ethernet: | 1 RJ-45 10M/100M self-adaptive Ethernet interface |
| Memory Card: | Built-in microSD card slot, supports microSD / SDHC / SDXC card (up to 64 GB), supports manual / alarm recording |
| Analog Video Output: | 1.0 V[p-p] /75 Ω, PAL (or NTSC), BNC |
| Application Programming: | Open-ended API, supports ONVIF, PSIA, CGI, HIKVISION SDK, and third-party management platform |
| Client: | iVMS-4200 |
| Web Browser: | IE7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ |
| Reset: | 1 reset button |
| Genel | |
| Menu Language: | English |
| Power: | POE+ (802.3at), 24 VAC, 12 VDC/3 A, 18 W |
| Working Temperature and Humidity: | -40° F to 149° F (-40° C to 65° C), 90% or less |
| Protection Levels: | IP66, TVS 6000 V lightning protection, surge protection, voltage transient protection |
| Dimensions: | 12.36" × 4.09" × 11.52" (314 mm × 104 mm × 292.7 mm) |
| Weight: | 4.41 lb (2 kg) |
Haikon DS 2TD2136 15 IP Bullet Termal Kamera Pdf Dosyası689.16 KB
