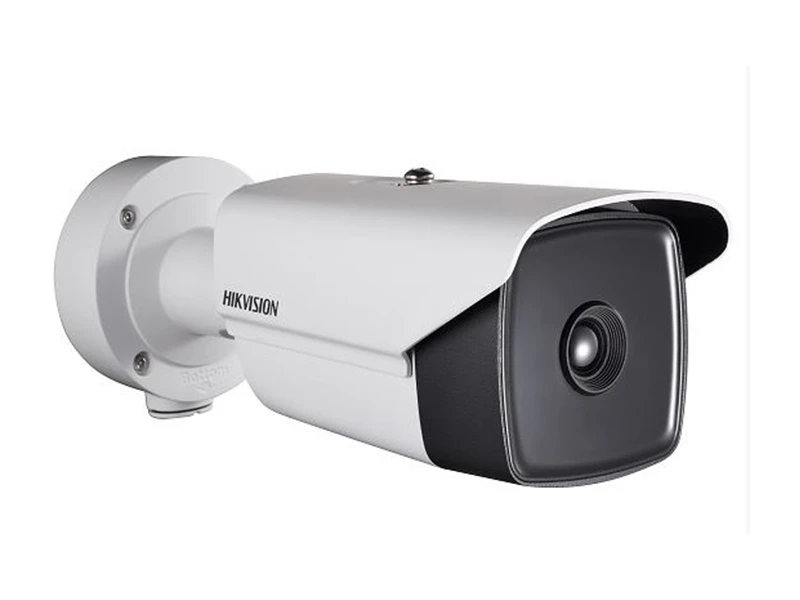

Hikvision DS 2TD2136 7/V1 IP Termal Bullet Kamera

Özellikler

Smart Function (Thermal Imaging)

Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C,F#=1.0)
Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
Reliable temperature exception alarm function
Advanced fire detection algorithm

Thermal Imaging Module Function

384*288 resolution, high sensitivity sensor, support contrast adjustment
Shutter adjustment in various modes
3D DNR, 15 palettes of color adjustable, image detail enhancement
7mm, 10mm,15mm, 25mm,35mm lens are optional

Teknik Özellikler

Thermal Module
Image sensor	Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution	384*288
Detector Pitch	17um
Response Wavebond	8um to 14um
NETD	< 40mk(@25°C,F#=1.0)
Lens (focal length)	7mm
MRAD	2.43 mrad
Field of View	60°x 43.80°
Min. Focusing Distance	0.8m
F number	1.0
Smart Function
VCA	Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA
VCA	rules
Temperature Measurement	Support 3 temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10
Temperature Measurement	points, 10 regions, and 1 line)
Temperature Range	-20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy	±8 ° C (14.4 ° F)
Fire Detection	Support 10 fire points
Network
Main Stream	50fps(384 × 288)
Sub Stream	50fps(384 × 288)
Third Strea	50fps(384 × 288)
Video Compression	H.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
Audio Compression	G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP,RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous live view	Up to 20-ch
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures	User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
Security Measures	IP address filtering
Integration
Alarm Input	2-ch Inputs (0-5V DC)
Alarm Action	Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email
Alarm Action	linkage
Alarm Output	2-ch relay outputs, alarm response actions configurable
Audio Input	1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output	Linear Level; Impedance: 600Ω
Communication Interface	Built-in RJ45; 10M/100M Ethernet Interface
Onboard Storage	Built-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
Ethernet	1 RJ45 10M/100M Self-adaptive Ethernet interface
Analog Video Output	1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming	Open-ended; Support ONVIF, ISAPI and CGI; Support HIKVISION SDK and Third-Party Management
Application Programming	Platform
Client	iVMS-4200
Web Browser	IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
General
Power	24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Power Consumption	24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A, max. 8W (20W with De-icing Heater On),
Power Consumption	PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
Menu Language	English
Working Temperature/ Humidity	From -40 ° C to 65 ° C (-40 ° F to 149 ° F); Humidity: 90% or Less
Protection Level	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions	314mm × 104mm × 292.7mm (12.36″ × 4.09″ × 11.52″)
Smart Functions Range
Lens (focal length)	7mm
VCA range (Vehicles)	210m
VCA range (humans)	70m
Temperature measurement (Object:2*2m)	164m
Temperature measurement (Object:1*1m)	83m
Fire Detection (Object:2× 2 m)	412m
Fire Detection (Object:1× 1 m)	206m
Wide Range Coverage
Lens (focal length)	7mm
Detection range (Vehicles)	631m
Detection range (Humans)	206m
Recognition range (Vehicles)	158m
Recognition range (Humans)	51m
Identification range (Vehicles)	79m
Identification range (Humans)	26m
