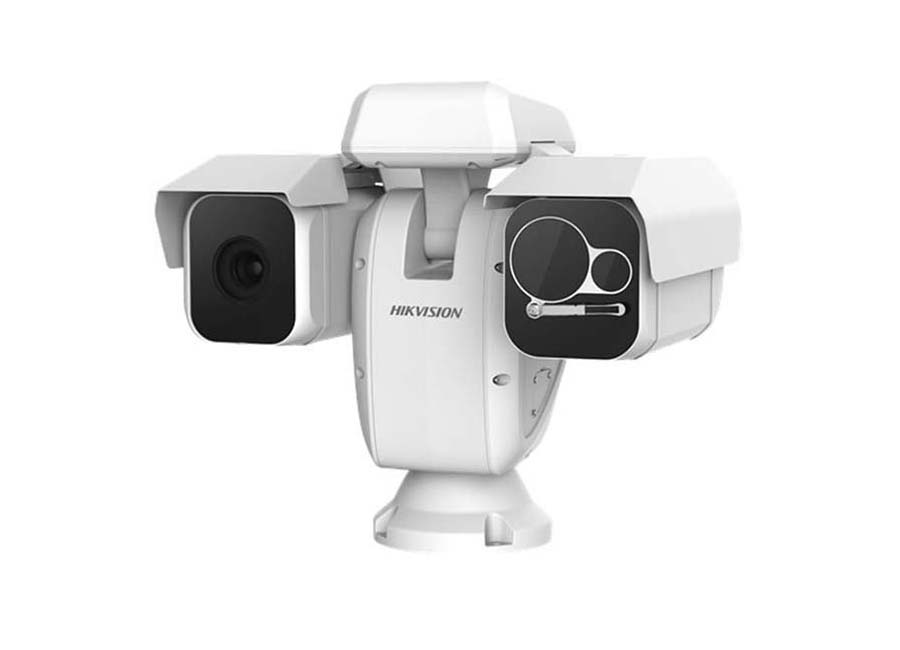

Hikvision DS 2TD6236T 50H2L IP PTZ Termal Kamera
Özellikler
Smart Function (Thermal Imaging)
- Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C, F#=1.0)
- Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
- Reliable temperature exception alarm function
- Advanced fire detection algorithm
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- -20°C to 550°C (-4°F to 1,022°F) temperature Range
- Max (±2°C, ±2%) temperature accuracy
- Support point, line, frame temperature measurement type.
Thermal Imaging Module Function
- 384*288 resolution, high sensitivity sensor, support contrast adjustment
- Support shutter adjustment in various modes
- 3D DNR, 15 palettes of color adjustable, image detail enhancement
Teknik Özellikler
| Thermal Module | |
| Image sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 384*288 |
| Detector Pitch | 17um |
| Response Wavebond | 8um to 14um |
| NETD | < 40mk(@25°C,F#=1.0) |
| Lens (focal length) | 50mm |
| MRAD | 0.34 mrad |
| Field of View | 7.47°x 5.61° |
| Min. Focusing Distance | 7.5m |
| F number | 1.0 |
| Optical Camera | |
| Image Sensor | 1/1.9" Progressive Scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.001 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON) |
| Focal Length | 5.7-205.2mm, 36x |
| Digital Zoom | 16X |
| Field of View | 58.7° - 2.0° (Wide-Tele) |
| Min. Working Distance | 10-1500mm(Wide-Tele) |
| Aperture Range | F1.5-F4.5 |
| Focus Mode | Auto / Semiautomatic / Manual |
| WDR | 120dB |
| Shutter Speed | 1 to 1/100,000s |
| White Balance | Auto /Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Day & Night | IR Cut Filter |
| Privacy Mask | 24 privacy masks programmable; optional multiple colors and mosaics |
| Optical Defog | Yes |
| Enhancement | 3D DNR |
| PTZ | |
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip) |
| Pan Speed | Configurable, From 0.1° /s to 110° /s |
| Tilt Speed | Configurable, From 0.1° /s to 50° /s |
| Proportional Zoom | Support |
| Presets | 300 |
| Patrol Scan | 8; Up to 32 Presets Per Patrol |
| Pattern Scan | 4; More Than 10 Minutes Per Pattern |
| Power Off Memory | Support |
| Park | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PT Status | Turn On/Turn Off |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama |
| Scan/Doom Reboot/Doom Adjust/Aux Output | |
| Smart Function | |
| VCA | Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene |
| Temperature Measurement | Support 3 temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10 |
| points, 10 regions, and 1 line) | |
| Temperature Range | -20 ° C to 550 ° C (-4 ° C to 1022 ° F) |
| Temperature Accuracy | Max (± 2 ° C, ± 2%) |
| Fire Detection | Support 10 fire points |
| Infrared | |
| IR Distance | Up to 200m |
| IR IntenSity and Angle | Auto Adjust |
| Network | |
| Main Stream | Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720) | |
| Thermal: 50fps (384×288) | |
| Sub Stream | Optical: 50Hz: 25fps (704 × 576, 352 × 288, 176 × 144) |
| Optical: 60Hz: 30fps (704 × 480, 352 × 240, 176 × 120) | |
| Thermal: 50fps (384×288) | |
| Video Compression | H.264 (Baseline/Main/High Profile) /MJPEG/MPEG4 |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I |
| GMP,ICMP,DHCP, PPPoE, Bonjour | |
| Simultaneous live view | Up to 20-ch |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security Measures | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, |
| IP address filtering | |
| Integration | |
| Alarm Input | Up to 7-ch Relay Input (0-5V DC) |
| Alarm Output | Up to 2-ch; Support Alarm Linkage |
| Audio Input: | LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10% |
| Audio Output | Linear Level; Impedance: 600Ω |
| Communication Interface | Built-in RJ45; 10M/100M Ethernet Interface |
| Onboard Storage | Built-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording |
| Ethernet | 1 RJ45 10M/100M Self-adaptive Ethernet interface |
| Analog Video Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| RS485 | Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive |
| Application Programming | Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform |
| Client | iVMS-4200 |
| Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages |
| General | |
| Wiper | Yes |
| Power | 24V AC, 120W |
| Menu Language | English |
| Working Temperature/ Humidit | From -40° C to 60° C (-40° F to 140°F); Humidity: 90% or Less |
| Protection Level | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Weight | Approx. 19kg (41.89lb) |
| Smart Functions Range | |
| Lens (focal length) | 50mm |
| VCA range (Vehicles) | 1029m |
| VCA range (humans) | 360m |
| Temperature measurement (Object:2*2m) | 1170m |
| Temperature measurement (Object:1*1m) | 590m |
| Fire Detection (Object:2× 2 m) | 2940m |
| Fire Detection (Object:1× 1 m) | 1470m |
| Wide Range Coverage | |
| Lens (focal length) | 50mm |
| Detection range (Vehicles) | 4510m |
| Detection range (Humans) | 1471m |
| Recognition range (Vehicles) | 1127m |
| Recognition range (Humans) | 368m |
| Identification range (Vehicles) | 564m |
| Identification range (Humans) | 184m |
Hikvision DS 2TD6236T 50H2L IP PTZ Termal Kamera Pdf Dosyası699.47 KB
Teknik Kısa
Irled : Var
