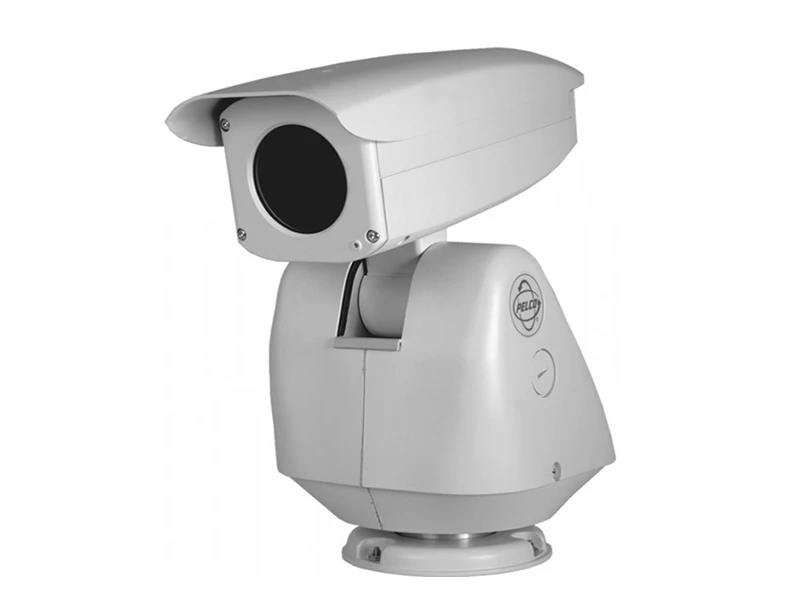

Pelco ESTI3100 5N IP Termal Kamera
Özellikler
- Uncooled, sun-safe, amorphous silicon microbolometer
- LWIR (Long Wave Infrared)
- Esprit pan/tilt
- IP and analog capability
- 100mm lens
- Pedestal mount
- 384 x 288 resolution
- 25μm pixel size
- 120/230VAC, 50/60 Hz input power
- H.264 & MJPEG compression
- Up to 2 simultaneous video streams
- Built-in analytics
- Variable speed pan, 0.1 to 100°/sec with proportional pan
- 360° continuous pan rotation
- Tilt range of 33 to -83° from horizontal
- Preset positioning, patterns, and multiple scan modes
- Designed for minimal maintenance, no gears to adjust, & maximum environmental protection
- Adaptive motion detection
- ONVIF v1.02 conformant
- Operational in 90 mph winds, can withstand wind velocity up to 130 mph
- Pan preset speed of 100°/sec in 50 mph winds and 50°/sec in 90 mph winds
- Variable scan speeds (1 to 40°/sec)
- Compact, lightweight aluminum construction
- Meets NEMA type 4X and IP66 standards
- Complete with sun shroud and heater/defroster
- Analog control using Coaxitron, Pelco P, or Pelco D Protocols
- Gray polyester powder coat finish
Teknik Özellikler
Detectors | Sun-safe, uncooled microbolometer, amorphous silicon |
Array Format | 384 x 288 |
Pixel Size | 25 μm |
Effective Resolution | 110,592 |
Spectral Response | 7.5 to 13.5 μm, LWIR |
Normalization Source | Internal shutter (offset only), 0.3 sec video freeze during shutter |
Temporal NETD | 50 mK at f/1.0 |
Display Formats | White hot, black hot, and rainbow |
Lens | 100 mm |
F-Number (f) | 1.6 |
Field of View (H x V x D) | 6 x 4 x 7° |
Near Focus | Distance: 28.8' (8.8 m) |
Video Encoding | H.264 high, main, or base profiles and MJPEG |
Video Streams | Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream |
Frame Rate | Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7.5, 6, 5, 4, 3, 2.5, 2, 1 (dependent upon stream configuration) |
Available Resolutions | For 384 x 288 Resolution, 4:3 Aspect Ratio |
MJPEG: Maximum 30 ips @ 1.71 Mb/s recommended bit rate | |
H.264 High Profile: Maximum 30 ips @ 0.63 Mb/s recommended bit rate | |
For 320 x 240 Resolution, 4:3 Aspect Ratio | |
MJPEG: Maximum 30 ips @ 1.17 Mb/s recommended bit rate | |
H.264 High Profile: Maximum 30 ips @ 0.49 Mb/s recommended bit rate | |
For 320 x 176 Resolution, 16:9 Aspect Ratio | |
MJPEG: Maximum 30 ips @ 0.88 Mb/s recommended bit rate | |
H.264 High Profile: : Maximum 30 ips @ 0.34 Mb/s recommended bit rate | |
Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) |
Users | Unicast: Up to 20 simultaneous users depending on resolution settings (2 guaranteed streams) |
Multicast: Unlimited users H.264 | |
Security Access | Password protected |
Software Interface | Web browser view and setup |
System Integration | Endura 2.0 (or later) Digital Sentry 7.3 (or later) |
API Supported | Pelco API or ONVIF v1.02 (open) |
Port | Video/Coaxitron: 75 Ω, unbalanced |
Video Modes | NTSC |
Video Level | 1 Vpp |
Ethernet Port | Inline RJ-45 for 100Base-TX, auto MDI/MDI-X |
Ethernet Cabling | CAT5 or better for 100Base-TX (required) |
Input Power | 20/230 VAC, 50/60 Hz, switch selectable |
Range: 15 to -20% | |
Power Consumption | 0.41 A, 109.4 VA (105 W) |
120/230 VAC Fuse: 2 A, slow-blow | |
Heater | Thermostat controlled |
Local Storage | microSD |
Alarm Inputs | N.O. switch, N.C. switch, or 1 kΩ; supervised |
Relay Output | Mechanical |
Voltage: 60 VDC, 125 VAC | |
Current: 1 A | |
Power: 62.5 VA, 30 W | |
Solid-State | |
Voltage: 60 V | |
Current: 600 mA | |
Audio | Input: UTP 600 Ω mono, 12 VDC power source, line level/external microphone input, 1 Vpp maximum signal level |
Compression: G.711 PCM, 64 kb/s | |
Serial Control Port: 4-wire, RS-422/RS-485 (Pelco D or Pelco P) | |
Serial Control Cabling Type: UTP | |
Pan Movement | 360° continuous pan rotation |
Vertical Tilt | 33 to -79° unobstructed from horizontal |
Variable Speed | Pan: 0.5 to 40°/sec, 100°/sec turbo for analog control; 0.1 to 100°/sec for IP control (assumes maximum operating capacity) |
Tilt: 0.5 to 20°/sec for analog control; 0.1 to 30°/sec for IP control (assumes maximum operating capacity) | |
Preset Speeds | Pan: 100°/sec |
Tilt: 30°/sec | |
Latches | 2 captive Torx screws |
Performance | Detection, Recognition, & Identification of a Human Target |
Detection: 6,889.76' (2,100.00 m) | |
Recognition: 1,773.00' (540.00 m) | |
Identification: 885.00' (270.00 m) | |
Analytics Detection: 5,577.43' (1,700.00 m) | |
Analytics Recognition: 1,476.00' (450.00 m) | |
Detection, Recognition, & Identification of a Vehicle Target | |
Detection: 17,388.5' (5,300.01 m) | |
Recognition: 4,921.26' (1,500 m) | |
Identification: 2,493.00' (760.00 m) | |
Analytics Detection: 14435.70' (4,400.00 m) | |
Analytics Recognition: 3937.01' (1,200.00 m) | |
Mount | Pedestal |
Construction | Aluminum |
Environment | Indoor/outdoor |
Temperature | Operating: -40 to 122°F (-40 to 50°C) |
Storage: -40 to 140°F (-40 to 60°C) | |
Dimensions (H x W) | 22.20 x 7.76" (563.90 x 197.10 mm) |
Weight | 25.2 lb (11.4 kg) |
