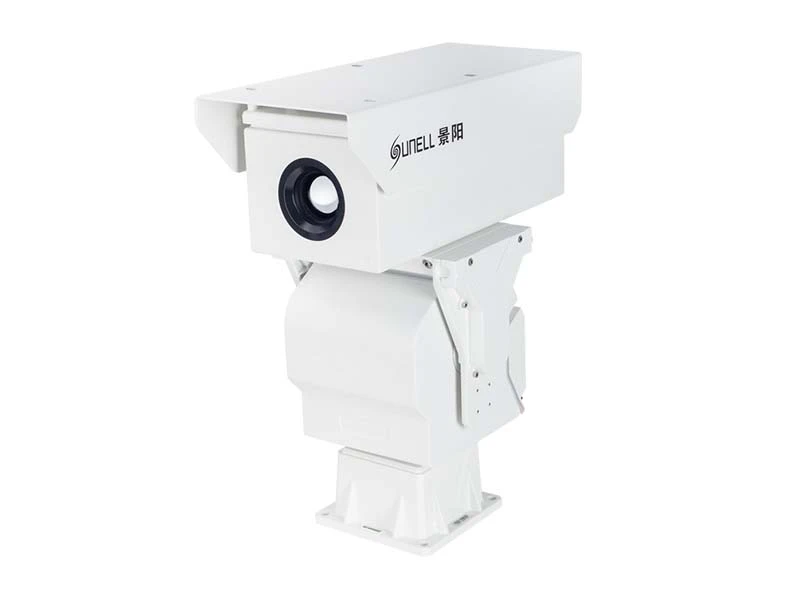

Sunell SN TPC4201ZZ/M(II) IP Termal Kamera

Özellikler

Uncooled IRFPA Microbolometer
Temperature detection
Effective Pixels 400×300
Sensitivity 50mK
25/50/75/100mm Motorized lens optional
Infrared detection wavelength 8-14um
Support 8 areas temperature Detection
Support 17 color control
Support DVE image Enhance
Standalone operating

Teknik Özellikler

Thermal Camera
Detector Type	Uncooled IRFPA Microbolometer
Effective Pixels	400(H) ×300(V)
Pixel Size	20um
Thermal Sensitivity (NETD)	50mK @F1.0, 300K
Spectral Range	8~14um
Image Setting	Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes	Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Thermal Lens
Lens Type	Fixed
Focus Control	Motorize Focus
Focal Length	25mm	50mm	75mm	100mm
F No.	F1.0	F1.0	F1.0	F1.0
Angle of View	H: 14.6°	H: 7.3°	H: 4.8°	H: 3.6°
	V:11°	V:5.5°	V:3.6°	V:2.7°
Temperature Detect Distance Fire(0.8m*0.8m)	500m	1000m	1500m	2000m
Recognition Distance Man(1.8m*0.5m)	375m	750m	1120m	1500m
Recognition Distance Vehicle(2.3m*2.3m)	830m	1660m	2500m	3300m
Video and Audio
Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream: D1 @25/30fps
	Sub Stream: CIF @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	100Kbps~6Mbps
Region of Interest	Off / On (8 Zone, Rectangle)
Electronic Image Stabilization(EIS)	N/A
Digital Zoom	16x
Mirror	Support
Defog	Support
Motion Detection	Support
Privacy Masking	Off / On (4 Area, Rectangle)
DVE Image Enhance	Support
Audio Compression	G.711, AMR, RAW_PCM (Optional)
Intelligence
Intelligent Functions	Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS	Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Object Left ,Object Removed
PTZ
Pan/Tilt Range	Pan: ° ~ 360° endless; Tilt: +40° ~ -75°
Pan/Tilt Speed	Pan: 0.01° ~60° /s; Tilt: 0.01° ~30° /s
Preset Speed	Pan: 0.01° ~60° /s; Tilt: 0.01° ~30° /s
Presets	400
PTZ Mode	8 Auto Scan, 12 Tour, 6 Track
Speed Setup	Auto/Manual (0-8),
Power Off Memory	Support
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	SN-SD, Pelco-D
Temperature Detection
Temperature Detection	Point detection, Area detection
Temperature Alarm	Over temperature alarm, Temperature difference alarm
Precision	Max (±2℃, ±2%)
Detection Area	Support 8 areas (8 target)
Response Time	≤30ms
Effective temperature working environment	-10 °C ~ 55 °C (14°F ~ 131 °F)
Theory of temperature measurement range	-30 °C ~ 200 °C (-22°F ~ 392 °F)
Temperature display mode	Temperature target ＞5℃, Display absolute temperature value;
	Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)
Network
Ethernet	RJ-45 (10/100Base-T)
Protocols	IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability	ONVIF, CGI
Streaming Method	Unicast
Max. User Access	10 Users
Edge Storage	NAS
	Local PC for instant recording
	Mirco SD card 128GB
Web Viewer
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	1ch Audio In,1ch Audio Out
Alarm	2ch Alarm In,2ch Alarm Out
RS485	Support
BNC Output	Support
Reset Button	Support(Built-in)
General
Power Supply	AC24V/DC24V
Power Consumption	Max 100W
Operating Temperature	-25 °C ~ 55 °C (-13 °F ~ 131 °F)
Strorage Conditions	0~ 90% RH
Certifications	CE /FCC
Ingress Protection	IP66
Casing	Metal
Dimensions	585×251×502mm
Net Weight	21Kg (Contains 50 mm lens)
