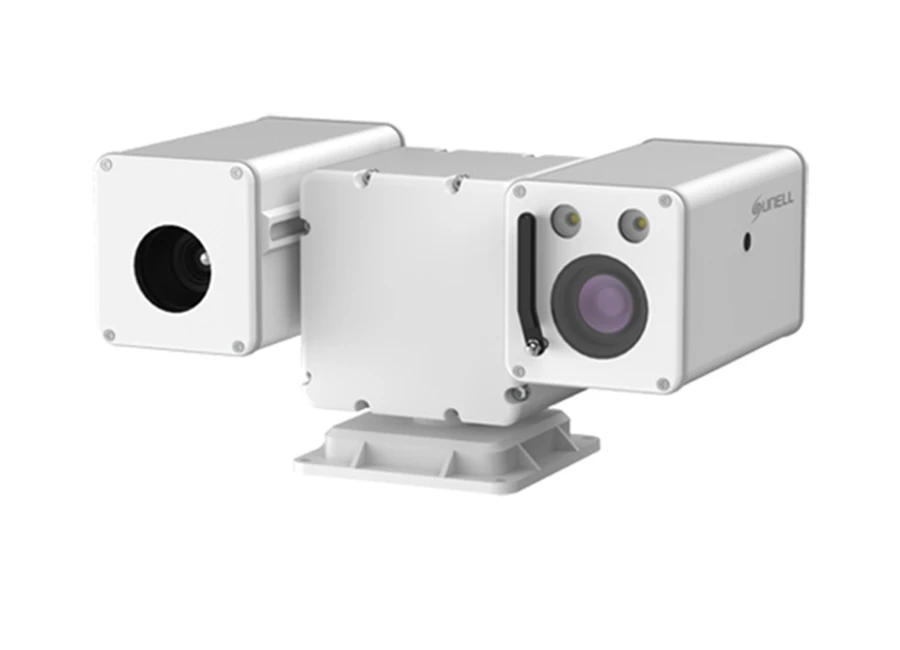

Sunell SN TPT4231QF/F(III) IP PTZ Termal Kamera
Özellikler
Teknik Özellikler
| Thermal Camera | |||
| Detector Type | Uncooled IRFPA Microbolometer | ||
| Effective Pixels | 400(H) ×300(V) | ||
| Pixel Size | 17um | ||
| Thermal Sensitivity (NETD) | 40mK @F1.0, 300K | ||
| Spectral Range | 8~14um | ||
| Image Setting | Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI | ||
| Color Palettes | Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes | ||
| Thermal Lens | |||
| Lens Type | Fixed | ||
| Focus Control | Manual Focus | ||
| Focal Length | 8mm | 15mm | 25mm |
| F No. | F1.0 | F1.0 | F1.0 |
| Angle of View | H: 46° | H:25.5° | H:15.4° |
| V:35.3° | V:19.2° | V:11.6° | |
| Detection Distance Fire(1m*1m) | 235m | 441m | 735m |
| Detection Distance Man(1.8m*0.5m) | 235m | 441m | 735m |
| Detection Distance Vehicle(4m*1.5m) | 722m | 1353m | 2255m |
| Recognition Distance Fire(1m*1m) | 78m | 147m | 245m |
| Recognition Distance Man(1.8m*0.5m) | 59m | 110m | 184m |
| Recognition Distance Vehicle(4m*1.5m) | 180m | 338m | 564m |
| Visible Camera | |||
| Image Sensor | 1/2.8" Sony CMOS | ||
| Effective Resolution | 2048 (H)×1536(V) | ||
| Shutter Speed | 1/5 ~ 1/20,000s | ||
| Min. Illumination | Color: 0.01Lux @(F1.2, AGC ON), | ||
| B/W: 0.1Lux | |||
| S/N Ratio | More than 55dB | ||
| Visible Lens | |||
| Focal Length | 4.5 ~ 135mm | ||
| Max Aperture | F1.6~F4.4 | ||
| Angle of View | H:59.8°~2.3° | ||
| Optical Zoom | 30x | ||
| Focus Control | Auto / Manual | ||
| Close Focus Distance | 100mm~ 1500mm (0.33ft~3.28ft) | ||
| PTZ | |||
| Pan/Tilt Range | Pan: ° ~ 360° endless; Tilt: +90° ~ -90° | ||
| Pan/Tilt Speed | Pan: 0.01° ~30° /s; Tilt: 0.01° ~10° /s | ||
| Preset Speed | Pan: 0.01° ~30° /s; Tilt: 0.01° ~10° /s | ||
| Presets | 400 | ||
| PTZ Mode | 8 Auto Scan, 12 Tour, 6 Track | ||
| Speed Setup | Auto/Manual (0-8), | ||
| Power Off Memory | Support | ||
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | ||
| Protocol | SN-SD, Pelco-D | ||
| Video and Audio | |||
| Compression | H.265, H.264, MJPEG | ||
| Frame Rate | Main Stream: | ||
| Thermal: D1 @25/30fps | |||
| Visible: 2048×1536 @25/30fps | |||
| Sub Stream: | |||
| Thermal: CIF @25/30fps | |||
| Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps | |||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | Thermal: 100Kbps~6Mbps | ||
| Visible: | |||
| main stream: 500Kbps~12Mbps; | |||
| sub stream: 100Kbps~6Kbps | |||
| Region of Interest | Off / On (8 Zone, Rectangle) | ||
| Electronic Image Stabilization(EIS) | N/A | ||
| Digital Zoom | 16x | ||
| Mirror | Support | ||
| Defog | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||
| DVE Image Enhance | Support | ||
| Audio Compression | G.711, AMR, RAW_PCM (Optional) | ||
| Intelligence | |||
| Intelligent Functions | Motion detection, Disk alarm, I/O alarm, Temperature alarm | ||
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed | ||
| Temperature Detection | |||
| Detection Mode | Spot, Line, Area | ||
| Detection Preset | Spot: 20, Line: 2, Area: 16 | ||
| Temperature Alarm | Over temperature alarm, Temperature difference alarm | ||
| Accuracy | ±2℃ / ±2% | ||
| Response Time | ≤30ms | ||
| Effective temperature working environment | -30°C~60°C(-22°F~140°F) | ||
| Theory of temperature measurement range | -40°C~150°C(-40°F~302°F) | ||
| Temperature display mode | Temperature target ＞5℃, Display absolute temperature value, Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)
| ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocols: | IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x | ||
| Interoperability | ONVIF, CGI | ||
| Streaming Method | Unicast | ||
| Max. User Access | 10 Users | ||
| Edge Storage | NAS | ||
| Local PC for instant recording | |||
| Micro SD card 128GB | |||
| Web Viewer | <IE11, Chrome, Firefox | ||
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian | ||
| Interface | |||
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector | ||
| Audio | N/A | ||
| Alarm | 1ch Alarm Out | ||
| RS485 | Support | ||
| BNC Output | Support | ||
| Reset Button | Support(Built-in) | ||
| General | |||
| Power Supply | DC24V | ||
| Power Consumption | Max 40W | ||
| Operating Temperature | -30°C~60°C(-22°F~140°F) | ||
| Storage Conditions | 0~ 90% RH | ||
| Certifications | CE /FCC | ||
| Ingress Protection | IP66 | ||
| Casing | Metal | ||
| Dimensions | 322×192×163mm | ||
| Net Weight | 5Kg | ||
| Ordering Information | |||
| Type Part | Number | Description | |
| SN-TPT4231QF/F(III) | SN-TPT4231QF/F8/Z30(III) | Thermal:400×300 8mm Fixed lens
| |
| SN-TPT4231QF/F15/Z30(III) | Thermal:400×300 15mm Fixed lens
| ||
| SN-TPT4231QF/F25/Z30(III) | Thermal:400×300 25mm Fixed lens
| ||
