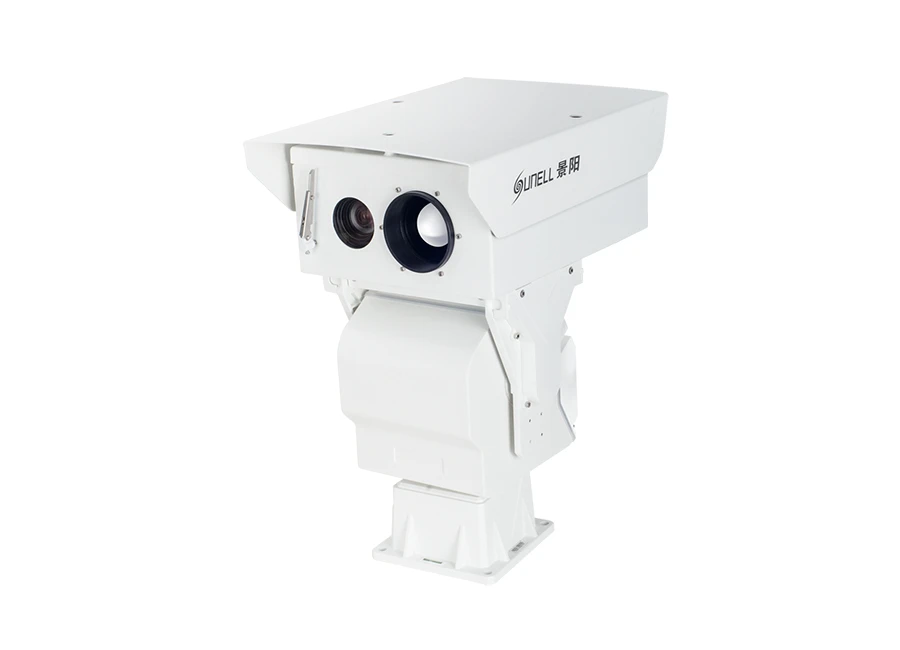

Sunell SN TPT4231ZZ/M(III) IP PTZ Termal Kamera

Özellikler

On-Board Temp-Detection Algorithm
Effective Pixels 400×300
Sensitivity 40mK
25/50/75/100mm Motorized Lens Optional
20 Spots / 2 Lines / 16 Areas Temperature Detection
17 Color Control
Power Off Self-Locking, Strong Wind Resistance
Anti-Frozen
Standalone Operating

Teknik Özellikler

Thermal Camera
Detector Type	Uncooled IRFPA Microbolometer
Effective Pixels	400(H) ×300(V)
Pixel Size	17um
Thermal Sensitivity (NETD)	40mK @F1.0, 300K
Spectral Range	8~14um
Image Setting	Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes	Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Thermal Lens
Lens Type	Fixed
Focus Control	Motorized Focus
Focal Length	25mm	50mm	75mm	100mm
F No.	F1.0	F1.0	F1.0	F1.0
Angle of View	H:15.4°	H: 7.7°	H: 5.1°	H: 3.8°
	V:11.6°	V:5.8°	V:3.8°	V:2.3°
Detection Distance Fire(1m*1m)	735m	1471m	2206m	2941m
Detection Distance Man(1.8m*0.5m)	735m	1471m	2206m	2941m
Detection Distance Vehicle(4m*1.5m)	2255m	4510m	6765m	9020m
Recognition Distance Fire(1m*1m)	245m	490m	735m	980m
Recognition Distance Man(1.8m*0.5m)	184m	368m	551m	735m
Recognition Distance Vehicle(4m*1.5m)	564m	1127m	1691m	2255m
Visible Camera
Image Sensor	1/1.9" Sony CMOS
Effective Resolution	1920(H)×1080(V)
Shutter Speed	1/5 ~ 1/20,000s
Min. Illumination	Color: 0.001Lux @(F1.2, AGC ON),
	B/W: 0.1Lux
S/N Ratio	More than 55dB
Visible Lens
Focal Length	6 ~ 180mm
Max Aperture	F1.5 ~ F4.3
Angle of View	H: 59° ~ 2.4°
Optical Zoom	30x
Focus Control	Auto / Manual
Close Focus Distance	100mm~ 1000mm (0.33ft~3.28ft)
PTZ
Pan/Tilt Range	Pan: ° ~ 360° endless; Tilt: +40° ~ -75°
Pan/Tilt Speed	Pan: 0.01° ~60° /s; Tilt: 0.01° ~30° /s
Preset Speed	Pan: 0.01° ~60° /s; Tilt: 0.01° ~30° /s
Presets	400
PTZ Mode	8 Auto Scan, 12 Tour, 6 Track
Speed Setup	Auto/Manual (0-8),
Power Off Memory	Support
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	SN-SD, Pelco-D
Video and Audio
Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream:
	Thermal: D1 @25/30fps
	Visible: 1920×1080/1280×720 @25/30fps
	Sub Stream:
	Thermal: CIF @25/30fps
	Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Thermal: 100Kbps~6Mbps
	Visible:
	main stream: 500Kbps~12Mbps;
	sub stream: 100Kbps~6Kbps
Region of Interest	Off / On (8 Zone, Rectangle)
Electronic Image Stabilization(EIS)	N/A
Digital Zoom	16x
Mirror	Support
Defog	Support
Motion Detection	Support
Privacy Masking	Off / On (4 Area, Rectangle)
DVE Image Enhance	Support
Audio Compression	G.711, AMR, RAW_PCM (Optional)
Intelligence
Intelligent Functions	Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS	Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed
Temperature Detection
Detection Mode	Spot, Line, Area
Detection Preset	Support 3 temperature measurement rule types,
	20 rules (20 points / 2 lines / 16 regions )
Temperature Alarm	Over temperature alarm, Temperature difference alarm
Accuracy	±2℃ / ±2%
Response Time	≤30ms
Effective temperature working environment	-40°C~60°C(-40°F~140°F)
Theory of temperature measurement range	-40°C~150°C(-40°F~302°F)
Temperature display mode	Temperature target ＞5℃, Display absolute temperature value,
	Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)
Network
Ethernet	RJ-45 (10/100Base-T)
Protocols:	IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability	ONVIF, CGI
Streaming Method	Unicast
Max. User Access	10 Users
Edge Storage	NAS
	Local PC for instant recording
	Micro SD card 128GB
Web Viewer	<IE11, Chrome, Firefox
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	2ch Audio In,2ch Audio Out
Alarm	9ch Alarm In,4ch Alarm Out
RS485	Support
BNC Output	Support
Reset Button	Support(Built-in)
General
Power Supply	DC36V
Power Consumption	Max 100W
Operating Temperature	-40°C~60°C(-40°F~140°F)
Storage Conditions	0~ 90% RH
Certifications	CE /FCC
Ingress Protection	IP66
Casing	Metal
Dimensions	660×375×539mm
Net Weight	25Kg(Contains 75 mm lens)
